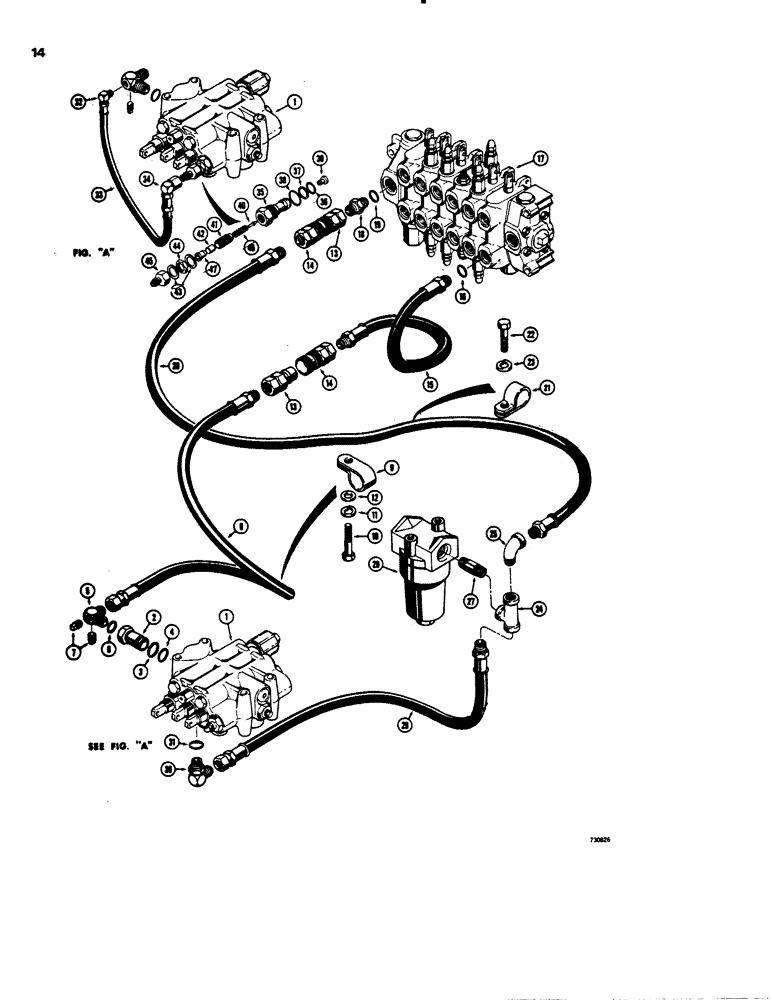

Запчасти Case 26C (014) - 450 CRAWLER TRACTOR TO BACKHOE, HYDRAULIC CIRCUIT, USED ON DOZER BACKHOE MODELS ONLY

1

REF

INSTRUCTION

VALVE - equipment control, see Model 450 Crawler Parts Catalog

1шт.

2

D61251

FITTING

- special sleeve, Includes: Ref. 3 and 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

4

L32680

RING

O-RING - small

1шт.

5

D35472

FITTING

- special elbow, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head, 1/4" NPT

2шт.

8

D38432

HOSE

- from equipment control valve, 34" (864 mm) long

1шт.

9

D34033

CLAMP

- hose

1шт.

10

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

95-8

WASHER,1/2"

flat 1/2"

1шт.

13

REF

INSTRUCTION

COUPLING - disconnect, male, see Figures 048 or 050

2шт.

14

REF

INSTRUCTION

COUPLING - disconnect, female, see Figures 048 or 050

2шт.

15

D38431

HOSE

- to backhoe control valve, 38" (965 mm) long, Includes: Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

17

REF

INSTRUCTION

VALVE - backhoe control, see Figures 062 and 074 for proper valve

1шт.

18

218-5017

ADAPTER

FITTING - special adapter, Includes: Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

20

D38433

HOSE

- backhoe valve to reservoir, 62" (1575 mm) long

1шт.

21

D34163

CLAMP

- hose

1шт.

22

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

221-426

FITTING,1" NPT

- three way

1шт.

25

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

- 45 degree, street elbow

1шт.

27

221-370

ELBOW

NIPPLE - pipe

1шт.

28

D43567

FILTER ASSY

- return line, see Model 450 Crawler Parts Catalog

1шт.

29

D35045

LARGE HOSE

HOSE - equipment valve to reservoir, 22" (559 mm) long

1шт.

30

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes Ref. 31 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

32

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Used on Dozer Backhoe Models only

1шт.

33

D37189

HOSE

- to relief valve, used on dozer backhoe models only

1шт.

34

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

FITTING - special elbow, used on dozer backhoe models only

1шт.

D38570

VALVE

- dual main relief, Includes: Refs. 35 - 47, used on dozer backhoe models only

1шт.

35

D37045

CAP

BODY - valve, used on dozer backhoe models only

1шт.

36

L30444

O-RING,0.521" ID x 0.661" OD

- small, used on dozer backhoe models only

1шт.

37

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup, used on dozer backhoe models only

1шт.

39

D26266

SEAT

- pilot, used on dozer backhoe models only

1шт.

40

D26267

PLUNGER

- pilot, used on dozer backhoe models only

1шт.

41

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting, used on dozer backhoe models only

1шт.

42

D27261

PISTON

- relief valve, used on dozer backhoe models only

1шт.

43

D27259

SEAL

- special

2шт.

44

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex, lock, 5/8" - 18 NF

1шт.

45

D27260

FITTING

- pilot

1шт.

46

D37043

SPRING - pilot, D41525 retainer only, see ref. no. 47

1шт.

46

D26268

SPRING

- pilot, D41764 retainer only, see ref. no. 47

1шт.

47

D41525

RETAINER - piston, early production, code number "2''

1шт.

47

D41764

RETAINER - piston, late production, code number "3''

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- large, used on dozer backhoe models only

1шт.
