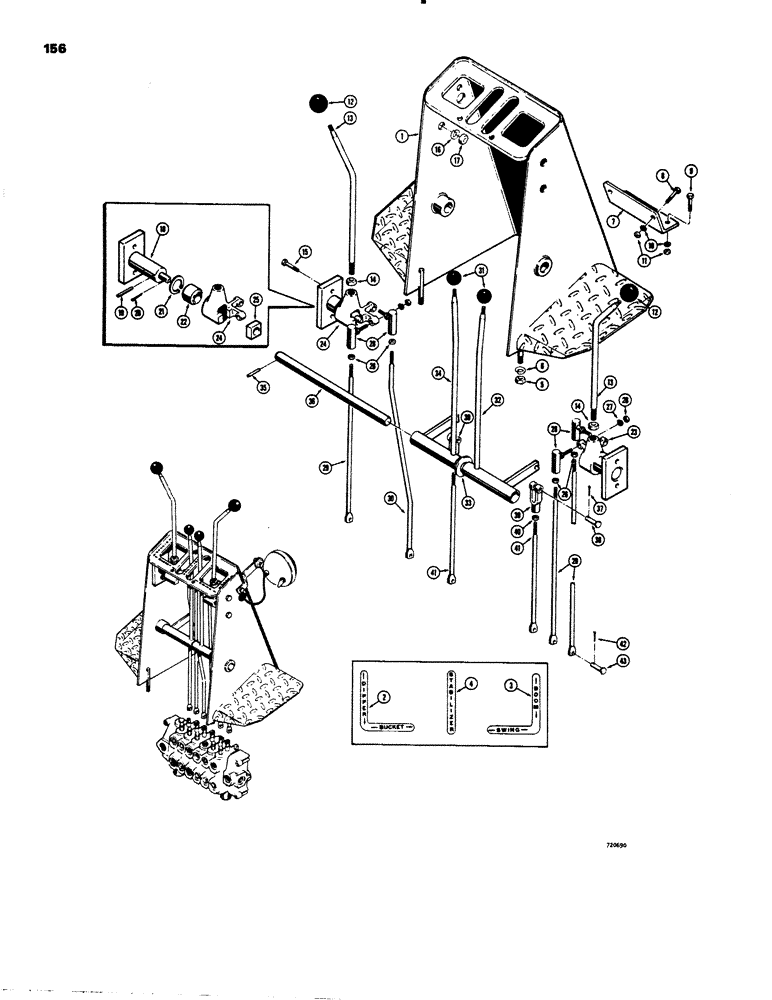

Запчасти Case 26C (156) - CONTROLS WITH HAND SWING FOR 350 CRAWLER, BEFORE BACKHOE SN. 5220152

1

D38288

CONSOLE - backhoe control

1шт.

2

321-917

DECAL

- dipper and bucket

1шт.

3

321-918

DECAL

- boom and swing

1шт.

4

321-919

DECAL

- stabilizer

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

D38292

COVER PLATE

BRACKET - console mounting

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

12

CAS31375

KNOB

- control lever, large

2шт.

13

D38304

HANDLE

LEVER - control, outer

2шт.

14

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

18

D38299

SUPPORT

STUD - lever pivot

2шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

D1038223

SPRING

Ring, Snap, 1.438", Int, #143

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- pivotal ball type

2шт.

23

D38303

ADAPTER

LEVER - pivotal, R.H.

1шт.

24

D38302

ADAPTER

LEVER - pivotal, L.H.

1шт.

25

D38305

BLOCK

WEAR BLOCK - lever

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

8шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

D38296

JOINT

- ball type

4шт.

29

D38295

ROD

- straight, connecting, boom, bucket and swing control

3шт.

30

D38294

ROD

- bent, connecting, dipper control

1шт.

31

D49996

KNOB

- control lever, small

2шт.

32

D54340

HANDLE

LEVER - control, R.H. stabilizer

1шт.

33

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, 15/16"

1шт.

34

D54341

HANDLE

LEVER - control, L.H. stabilizer

1шт.

35

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

36

D30817

SHAFT

- lever pivot

1шт.

37

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

38

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

2шт.

39

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

2шт.

40

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

2шт.

41

D38291

ROD - straight, connecting, stabilizer control

2шт.

42

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

43

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting rod mounting 5/16" x .940"

6шт.
