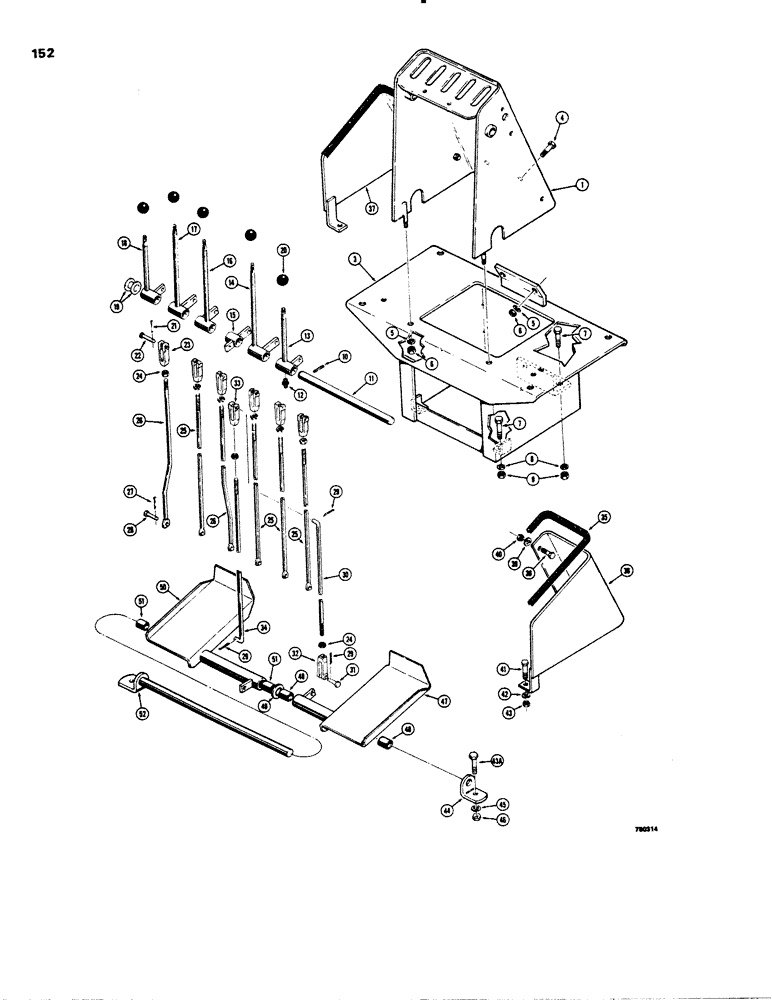

Запчасти Case 26C (152) - CONTROLS WITH FOOT SWING FOR 450 CRAWLER, AND W14 LOADER

1

D56529

BOOM

CONSOLE - backhoe control, see Figure 006 for swing down seat and taillight

1шт.

3

D47255

EXTENSION - backhoe control tower, for 450 Crawlers only

1шт.

3

D61166

EXTENSION - backhoe control tower, for W14 Loaders only

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

10

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

11

D30817

SHAFT

- control levers

1шт.

12

219-103

FITTING

- grease, straight, 1/8" NPT

5шт.

12

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 45\(de 1/8" NPT, not shown

1шт.

13

D49984

HANDLE

LEVER - control, R.H. stabilizer

1шт.

For models with extendable dipper, see Figure 162.

1шт.

14

D49994

HANDLE

LEVER - control, boom

1шт.

15

D48252

ANCHOR

LEVER - pivot, swing

1шт.

16

D49995

HANDLE

LEVER - control, dipper

1шт.

17

D49993

HANDLE

LEVER - control, bucket

1шт.

18

D49983

HANDLE

LEVER - control, L.H. stabilizer

1шт.

19

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, 5/16"

1шт.

20

D49996

KNOB

- control lever

5шт.

21

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

22

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

6шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

6шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

8шт.

25

D42585

ROD

- straight, connecting

4шт.

26

D42584

ROD

- bent, connecting

2шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

28

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke mounting 5/16" x .940"

6шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

30

D21762

ROD

- connecting, R.H. swing control

1шт.

31

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Mounting 3/8" x 1.060"

1шт.

32

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

33

D37600

YOKE

- connecting rod

1шт.

34

D30819

ROD

- connecting, L.H. swing control

1шт.

35

D47936

LINING

TRIM - shield, edge guard, 24" (610 mm) long

2шт.

36

D47222

SHIELD - swing pedal, R.H.

1шт.

37

D47223

SHIELD - swing pedal, L.H.

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

41

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

42

92-8

LOCK WASHER,1/2"

2шт.

43

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

43a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

44

D40858

BRACKET - swing pedal pivot shaft

1шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

D47224

PEDAL

ASSEMBLY - swing, R.H., Includes: Ref. 47 and 48

1шт.

47

NSS

NOT SOLD SEPARAT

PEDAL - swing, R.H.

1шт.

48

D30706

BUSHING

- pedal

2шт.

49

195-2097

WASHER,15/16" x 1 3/4" x .083"

- spacer

1шт.

D47225

PEDAL ASSEMBLY - swing, L.H., Includes: Ref. 50 and 51

1шт.

50

NSS

NOT SOLD SEPARAT

PEDAL - swing, L.H.

1шт.

51

D30706

BUSHING

- pedal

2шт.

52

D40859

SHAFT

- swing pedal pivot

1шт.
