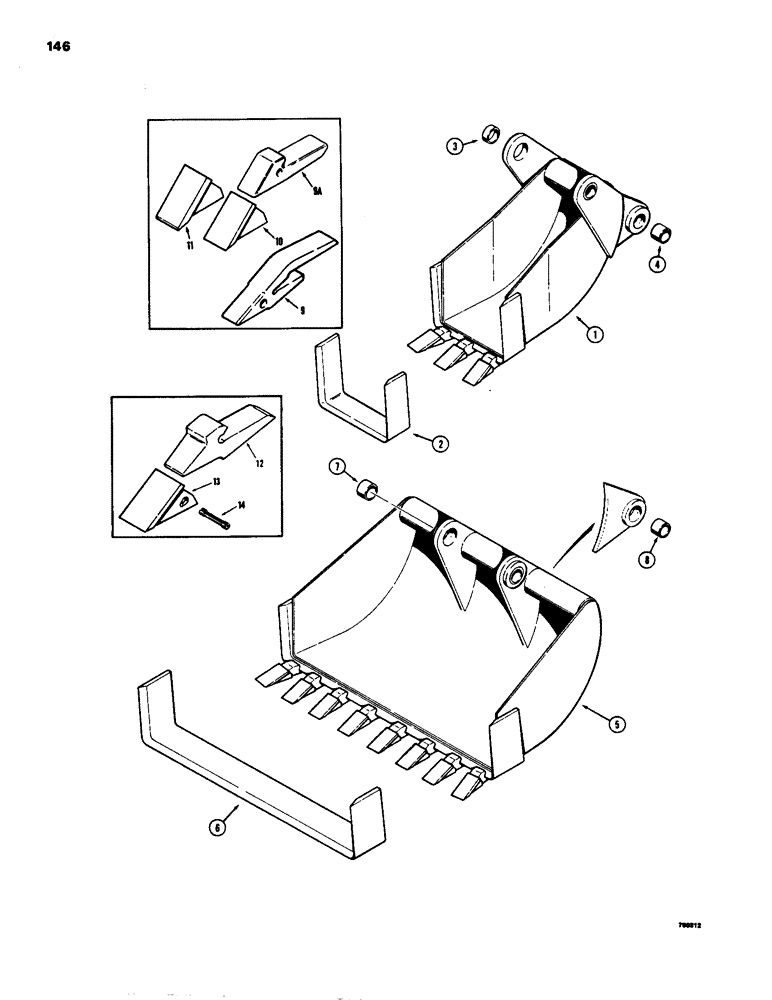

Запчасти Case 26C (146) - BACKHOE BUCKETS, BELLHOLE BUCKETS, COMBINATION BELLHOLE AND GRAVEYARD BUCKET, BUCKET TEETH

1

D41547

BUCKET

- 12 inch (305 mm) Machinery item - see Figure 002 for ordering, bellhole buckets, Includes: Ref. 2 - 4

1шт.

2

D37490

KNIFE

BLADE - cutting, bellhole buckets

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm, bellhole buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, bellhole buckets

2шт.

1

D41548

BUCKET

- 16 inch (406 mm) Machinery item - see Figure 002 for ordering, bellhole buckets, Includes: Ref. 2 - 4

1шт.

2

D37518

EDGE, CUTTING

BLADE - cutting, bellhole buckets

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, bellhole buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, bellhole buckets

2шт.

1

D41549

BUCKET

- 30 inch (762 mm) Machinery item - see Figure 002 for ordering, bellhole buckets, Includes: Ref. 2 - 4

1шт.

2

D37515

EDGE

BLADE - cutting, belhole buckets

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, bellhole buckets

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, bellhole buckets

2шт.

5

D41550

BUCKET

- 36 inch (914 mm) Machinery item - see Figure 002 for ordering, combination bellhole and gravyard bucket, Includes: Ref. 6 - 8

1шт.

6

NLS

NO LONGER SERVICED

BLADE - cutting, combination bellhole and graveyard bucket

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm, combination bellhole and graveyard bucket

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, combination bellhole and graveyard bucket

2шт.

9

D58499

SUPPORT

SHANK - tooth, service option, bucket teeth

1шт.

9a

D26368

SUPPORT

SHANK - tooth, original equipment, bucket teeth

1шт.

10

D58576

TOOTH

POINT - tooth, H and L manufactured, 4- 7/8" (124 mm) long, bucket teeth

1шт.

10

D58577

TOOTH

POINT - tooth, Fabco manufactured, 4- 3/4" (121 mm) long, bucket teeth

1шт.

11

D58592

TOOTH

POINT - tooth, H and L manufactured, heavy duty service option, bucket teeth

1шт.

11

D58593

TOOTH

POINT - tooth, Fabco manufactured, heavy duty service option, bucket teeth

1шт.

12

REF

INSTRUCTION

SHANK - for flex pin attaching, no longer available, bucket teeth

1шт.

13

D39093

TOOTH

POINT - tooth, fastens with flex pin, bucket teeth

1шт.

14

D39094

BUCKET TOOTH KEY

PIN - flex, if used, bucket teeth

1шт.
