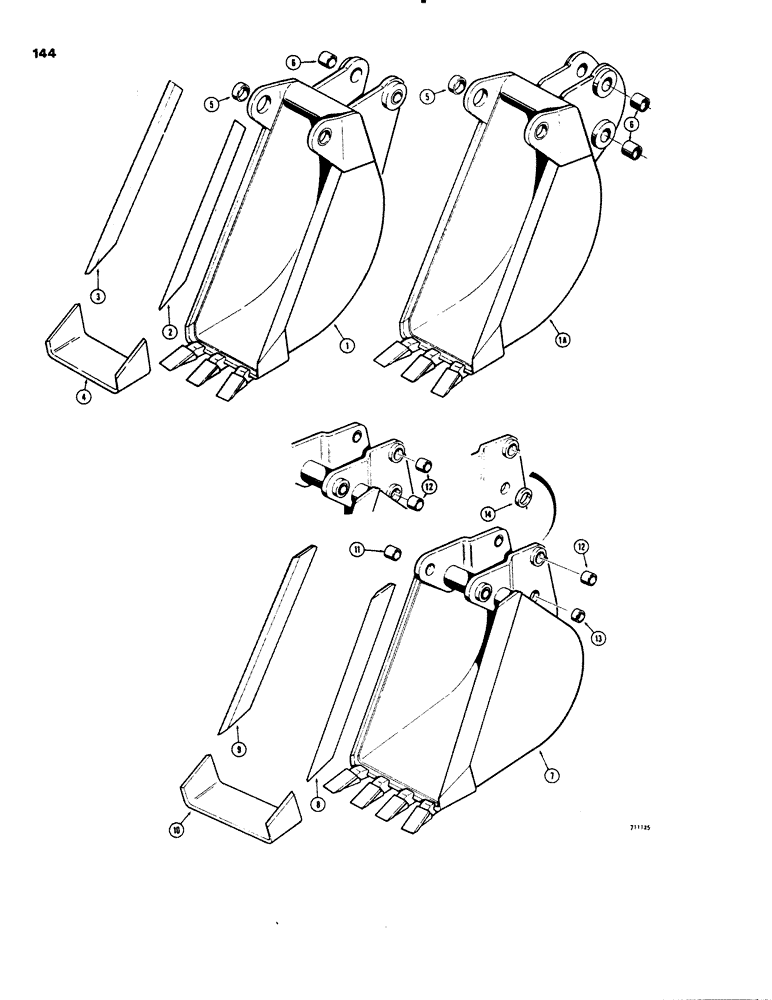

Запчасти Case 26C (144) - BACKHOE BUCKETS, TRENCHING BUCKETS (MACHINERY ITEM)

1

D37472

BUCKET - trenching, 12 inch (305 mm) one hole position for bucket link pin, Includes: Ref. 2 - 6

1шт.

1a

D52642

BUCKET

- trenching, 12 inch (305 mm) two hole positions for bucket link pin, Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

3

D29423

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

4

D37464

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2-4шт.

7

D37473

BUCKET

- trenching, 18 inch (457 mm), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37642

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin holes, used in lower hole only if bucket ear has boss

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole, used if bucket ear does not have boss

2шт.

7

D37474

BUCKET

- trenching, 24 inch (610 mm), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37507

EDGE

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole, used in lower hole only if bucket ear has boss

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole, used if bucket ear does not have boss

2шт.

7

D37475

BUCKET

- trenching, 30 inch (762 mm), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37505

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole, used in lower hole only if bucket ear has boss

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole, used if bucket ear does not have boss

2шт.

7

D37476

BUCKET

- backhoe, trenching, 36 inch (914 mm), Includes: Ref. 8 - 13

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37471

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole, used in lower hole only if bucket ear has boss

2-4шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole, used if bucket ear does not have boss

2шт.

14

D50763

KIT

- boss, includes 2 - D50760 bosses and instruction sheet, for all trenching buckets not originally equipped with bosses, not for 12" buckets

1шт.
