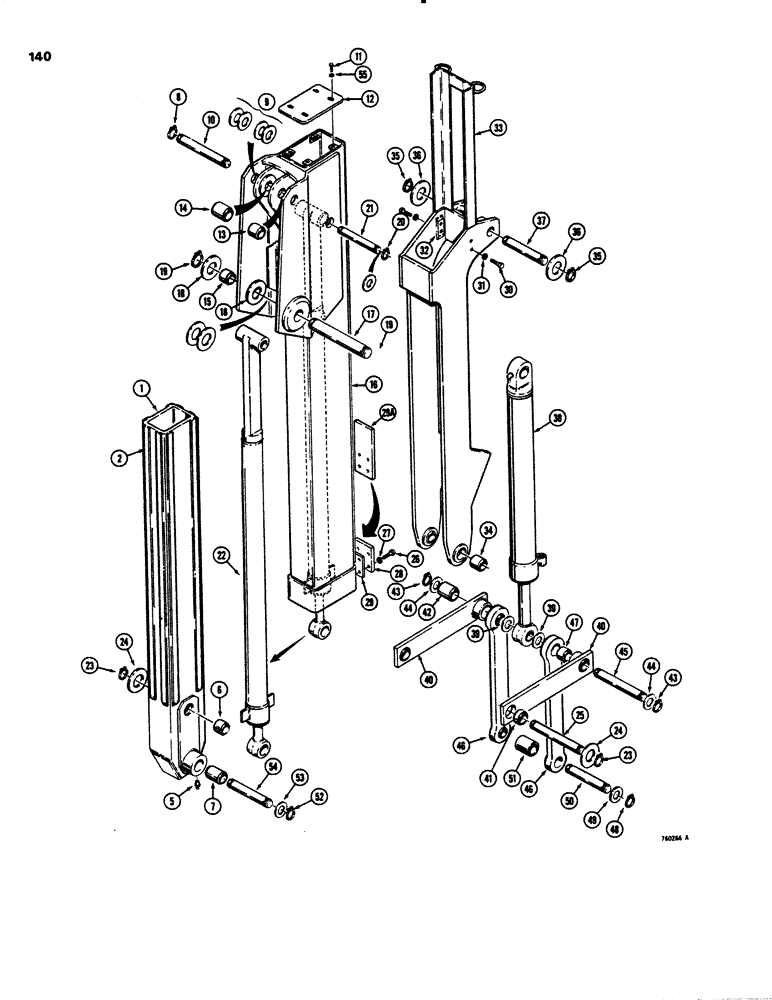

Запчасти Case 26C (140) - EXTENDABLE DIPPER
№
Артикул
Название
Примечание
Количество
D55721
EXTENSION
DIPPER ARM ASSEMBLY - extension, Includes: Ref. 2 - 7
1шт.
NSS
NOT SOLD SEPARAT
ARM - extendable dipper
1шт.
D16614
STRIP
KIT - service, wear strip, Includes: Ref. 2 - 4
2шт.
2
D55687
STRIP
WEAR STRIP - dipper slide
4шт.
3
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , Not shown 90º, 1/8" NPT x .84" lg
1шт.
4
219-107
NOZZLE CAP
NOZZLE - grease gun, not shown
1шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
2шт.
6
D37443
BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L
- dipper arm, at bucket link
2шт.
7
D95213
BUSHING
- dipper arm
2шт.
8
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
9
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
6шт.
10
D53812
PIVOT PIN,1.5" OD x 10.14" L
PIN - dipper cylinder to extendable dipper
1шт.
11
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
12
D52537
COVER ASSY
COVER - end, dipper
1шт.
D55714
HOUSING
SLIDE ASSEMBLY - extendable dipper, Includes: Ref. 13 - 16
1шт.
13
D30741
BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L
- R.H. dipper cylinder anchor, 2" (51 mm) long
1шт.
14
D31141
BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L
- L.H. dipper cylinder anchor, 1-5/8" (41 mm) long
1шт.
15
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
-, Serial Range: boom-dipper
2шт.
16
NSS
NOT SOLD SEPARAT
SLIDE - extendable dipper
1шт.
17
D45034
PIN
-, Serial Range: boom-dipper
1шт.
18
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, boom to dipper
4шт.
19
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
2шт.
20
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
21
D44882
PIN,38.1mm OD x 203.2mm L
- extension, Serial Range: cylinder-slide
1шт.
22
REF
INSTRUCTION
CYLINDER - dipper extension, see Figures 120 - 124
1шт.
23
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
24
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
- flat, special
2шт.
25
D53818
PIN,44.45mm OD x 278.89mm L
- extension cylinder to dipper arm and bucket links
1шт.
26
26-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8
4шт.
27
92-8
LOCK WASHER,1/2"
4шт.
28
NSS
NOT SOLD SEPARAT
STOP - dipper extension, if used, use D75425
1шт.
29
NSS
NOT SOLD SEPARAT
SPACER - dipper extension, if used, use D75425
1шт.
29a
D75425
STOP
- dipper extension, if used, does not require spacer
1шт.
30
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
31
92-8
LOCK WASHER,1/2"
4шт.
32
D54095
BLOCK
- guide
2шт.
D53637
EXTENSION ASSEMBLY - dipper, Includes: Ref. 33 - 37
1шт.
33
NSS
NOT SOLD SEPARAT
EXTENSION - dipper
1шт.
34
D52521
BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L
- bucket link pin
2шт.
35
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
36
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
37
D53576
PIN
- bucket, Serial Range: cylinder-dipper
1шт.
38
REF
INSTRUCTION
CYLINDER - bucket, see Figures 114 - 118
1шт.
39
D39261
WASHER
- special, bucket, Serial Range: cylinder-links
2шт.
40
D53816
LINK
- guide, dipper and extension to dump links, Includes: Ref. 41 and 42
2шт.
41
D46405
BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L
- link, dipper end
1шт.
42
D44549
BUSHING
- link, bucket cylinder end
1шт.
43
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
44
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- special
2шт.
45
D53819
PIN
- bucket cylinder to bucket linkage
1шт.
46
D54929
LINK - dump, Includes: Ref. 47
2шт.
47
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- link
2шт.
48
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
49
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- special
2шт.
51
D37450
SPACER,40.89mm ID x 48.26mm OD x 63.5mm L
SPACER - link
1шт.
52
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
53
195-2156
WASHER,1 13/16" x 2 3/4" x .109"
- flat, special
2шт.
54
D37613
PIN
- dipper arm to bucket, used with all buckets except 12"
1шт.
54
D40244
PIN,44.45mm OD x 327.02mm L
- dipper arm to bucket, used with 12" buckets only
1шт.
55
95-6
WASHER,3/8"
- flat, 3/8"
4шт.
Выбрано товаров: 61
