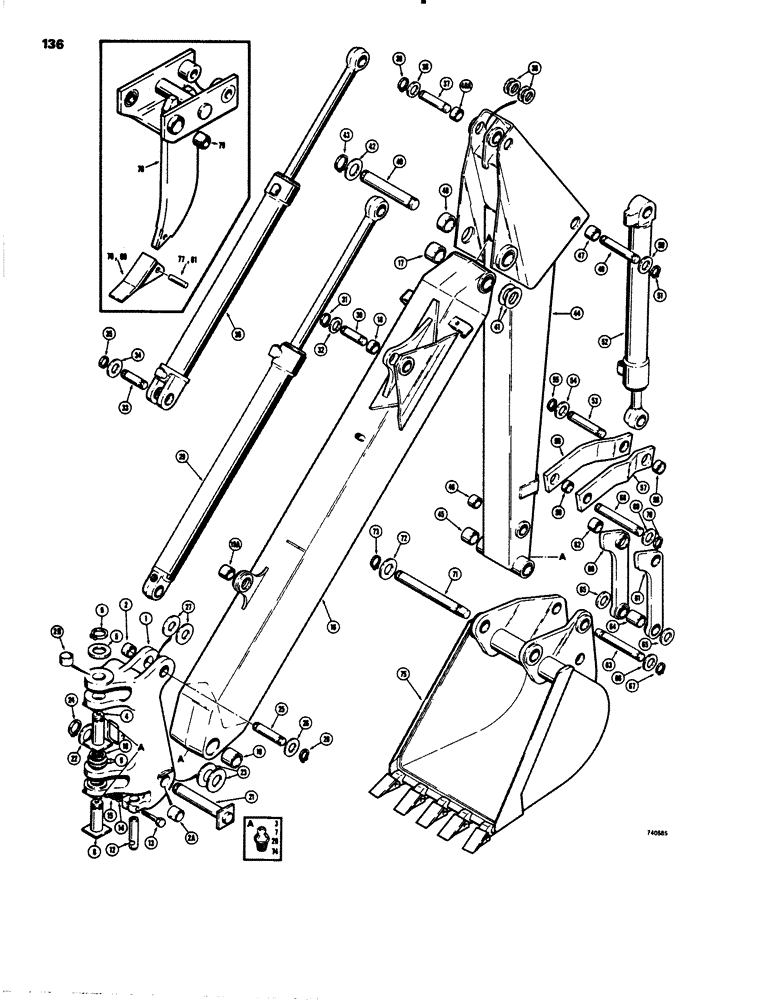

Запчасти Case 26C (136) - TOWER, BOOM, DIPPER ARM AND BUCKET
№
Артикул
Название
Примечание
Количество
1
D44879
TOWER - backhoe swing, order D57262 tower for service, Includes: Ref. 2, 2A and 2B
1шт.
1
D57262
TOWER - backhoe swing, Includes: Ref. 2, 2A and 2B
1шт.
2
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- at boom cylinder, used with D44879 only
2шт.
2
D95501
BUSHING
- at boom cylinder, used with D57262 tower only
2шт.
2a
D95511
BUSHING
- at boom, used with D57262 tower only
2шт.
2b
D30756
BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L
- at mounting frame, used with D57262 tower only
2шт.
3
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 90\(de, 1/8" NPT
1шт.
4
D44885
PIN
- mounting frame to swing tower, upper
1шт.
5
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, 2"
1шт.
6
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
1шт.
7
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
2шт.
8
D44733
PIN
- mounting frame to swing tower, lower
1шт.
9
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
Spacer (.89 mm) .035" Thk
1шт.
10
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
1шт.
12
D47866
PIN,38.1mm OD x 139.7mm L
- swing, Serial Range: tower-stabilizer
2шт.
13
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
HHCS - 5/8" - 11 NC x 4"
2шт.
15
251010
NUT - hex, 5/8" - 11NC
2шт.
16
D76656
BOOM
- backhoe, Includes: Ref. 17 - 19A
1шт.
17
D33023
BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L
- boom end, upper
2шт.
18
D32919
BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L
- boom cylinder anchor
2шт.
19
D44648
BUSHING
- boom end, lower
2шт.
19a
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
- at crowd cylinder anchor
1шт.
20
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
21
D44888
PIN
- boom to swing tower
1шт.
22
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, 2"
1шт.
23
D37449
SHIM,.0747" Thk
- spacer
1шт.
24
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
1шт.
25
D40941
PIN,38.1mm OD x 149.22mm L
- swing tower to boom cylinder
1шт.
26
D30042
WASHER
- special
2шт.
27
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
28
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
29
REF
INSTRUCTION
CYLINDER - boom, see Figures 102 - 106 for proper cylinder
1шт.
30
D45047
PIN
- boom, Serial Range: cylinder-boom
1шт.
31
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
32
195-2156
WASHER,1 13/16" x 2 3/4" x .109"
- spacer
2шт.
32a
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
SHIM - spacer, 1/16" (1.59 mm) thick
1шт.
33
D34654
PIN
- dipper, Serial Range: cylinder-boom
1шт.
34
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
35
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
36
REF
INSTRUCTION
CYLINDER - dipper, see Figures 108 - 112 for proper cylinder
1шт.
37
D44881
PIN,38.1mm OD x 136.4mm L
- dipper cylinder to dipper arm
1шт.
38
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
6шт.
39
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
40
D37609
PIN
- boom to dipper arm
1шт.
41
D37449
SHIM,.0747" Thk
- spacer
1шт.
42
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, 2"
2шт.
43
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
2шт.
44
D71862
BOOM
DIPPER - arm, Includes: Ref. 45 - 48A
1шт.
45
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
- bucket at dipper arm
2шт.
46
D32890
BUSHING
- bucket linkage at dipper arm
2шт.
47
D31140
BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L
- dipper arm at bucket cylinder
2шт.
48
D38943
BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L
- dipper arm at boom
2шт.
48a
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- dipper arm at crowd cylinder
2шт.
49
D44882
PIN,38.1mm OD x 203.2mm L
- dipper arm to bucket cylinder
1шт.
50
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
51
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
52
REF
INSTRUCTION
CYLINDER - bucket, see Figures 114 - 118 for proper cylinder
1шт.
53
D42787
PIN
- bucket cylinder to bucket linkage
1шт.
54
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
55
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
56
D45466
LINK
- guide, L.H.
1шт.
57
D45467
LINK
- guide, R.H., Includes: Ref. 58 and 59
1шт.
58
D32919
BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L
- link, 1 each in D45466 and D45467 links
1шт.
59
D32789
BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L
- link, 1 each in D45466 and D45467 links
1шт.
60
D45462
LINK
- dump, L.H.
1шт.
61
D45461
LINK
- dump, R.H., Includes: Ref. 62
1шт.
62
D30932
BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L
- link, 2 each in D45462 and D45461 links
2шт.
64
D44887
SPACER
- link
1шт.
65
D39261
WASHER
SPACER - link
2шт.
66
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer
2шт.
67
D25279
SNAP RING,M35, Int
RING - retaining, pin
2шт.
68
D44883
PIN,31.75mm OD x 238.25mm L
- link to dipper arm
1шт.
69
195-2125
WASHER,1 5/16" x 2" x .109"
- flat, 2"
2шт.
70
D26918
SNAP RING,#125, Ext
Ring, Snap, , pin #125, Ext
2шт.
71
D37613
PIN
- dipper arm to bucket, used with all buckets except 12"
1шт.
71
D40244
PIN,44.45mm OD x 327.02mm L
- dipper arm to bucket, use with 12 inch buckets only
1шт.
72
195-2156
WASHER,1 13/16" x 2 3/4" x .109"
- spacer
2шт.
73
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
74
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
75
REF
INSTRUCTION
BUCKET - backhoe, see Figures 144 and 146 for options
1шт.
D42577
SPARE PART
FROST TOOTH ASSEMBLY - backhoe, H and L manufactured, Includes: Ref. 76 and 77
1шт.
NSS
NOT SOLD SEPARAT
BODY - frost tooth, not shown
1шт.
76
D83306
POINT
- tooth, replaces D43416 point
1шт.
77
D43417
PIN
- flex, point
1шт.
78
D54136
SUPPORT ASSY.
BODY - frost tooth, Case manufactured, Includes: Ref. 79
1шт.
79
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
- frost tooth pivot
2шт.
80
D83306
POINT
- tooth, replaces D43416 point
1шт.
81
D43417
PIN
- flex, point
1шт.
