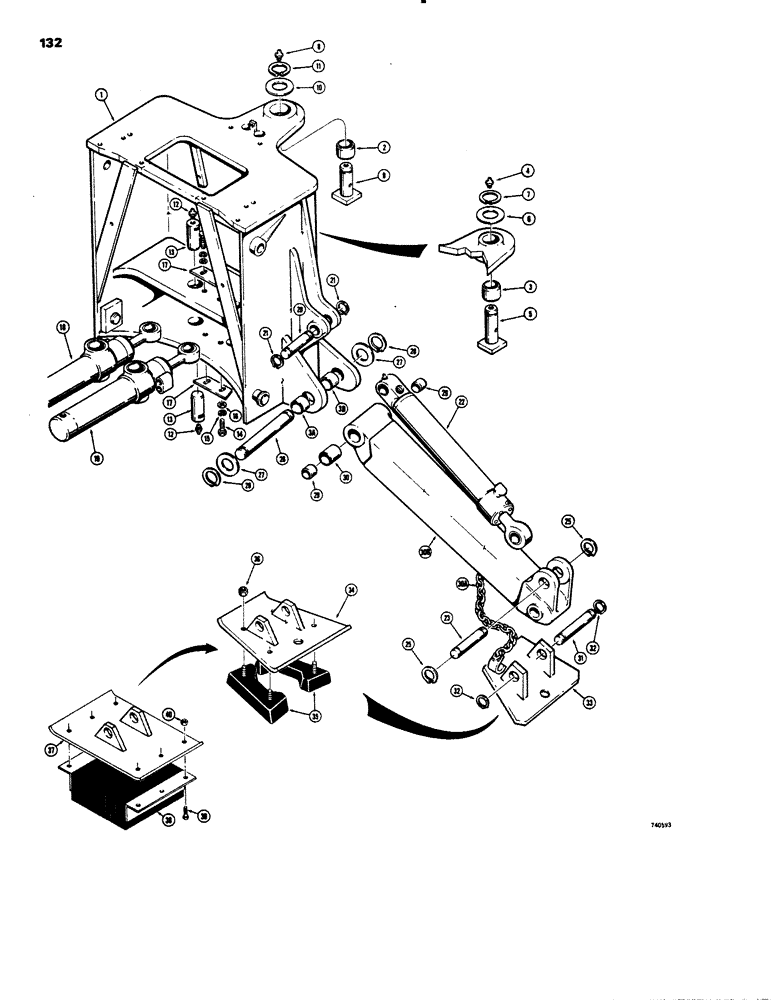

Запчасти Case 26C (132) - MOUNTING FRAME AND STABILIZERS

1

D55752

FRAME - backhoe mounting, used before backhoe SN 5305201, Includes: Ref. 2 - 3B

1шт.

1

D60929

FRAME - backhoe mounting, used backhoe SN 535201 and after, Includes: Ref. 2 - 3B

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, top

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, bottom

1шт.

3a

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- frame to stabilizer leg, rear bracket

2шт.

3b

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame to stabilizer leg, front bracket

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

5

D44733

PIN

- mounting frame to swing tower

1шт.

6

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer (.89 mm) .035" Thk

1шт.

7

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

9

D44885

PIN

- mounting frame to swing tower

1шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2"

1шт.

11

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

4шт.

13

D47259

AXLE PIN,44.32mm OD x 75.18mm L

PIN - swing cylinder to mounting frame

4шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

17

D39926

PLATE

- pin retaining

2шт.

18

REF

INSTRUCTION

CYLINDER - L.H. swing, see Figures 94 - 100 for proper cylinder

1шт.

19

REF

INSTRUCTION

CYLINDER - R.H. swing, see Figures 94 - 100 for proper cylinder

1шт.

20

D25078

PIN

- stabilizer cylinder to mounting frame

2шт.

21

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

22

REF

INSTRUCTION

CYLINDER - stabilizer, see Figures 88 - 92 for proper cylinders

2шт.

23

D37606

PIN,38.1mm OD x 103.5mm L

- stabilizer cylinder to stabilizer leg

2шт.

25

D25279

SNAP RING,M35, Int

RING - retaining, pin

4шт.

26

D46404

PIN

- stabilizer leg to mounting frame

2шт.

27

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 2"

4шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

D37425

SUPPORT ASSY.

LEG - stabilizer, L.H. includes Refs. 29 - 30B, when stock is exhausted, order D56414 leg for service

1шт.

D56414

STABILIZER

LEG - stabilizer, L.H., includes Refs. 29 - 30B

1шт.

D37426

SUPPORT ASSY.

LEG - stabilizer, R.H., includes Refs. 29 - 30B, when stock is exhausted, order D56415 leg for service

1шт.

D56415

HOSE

LEG - stabilizer, R.H., includes Refs. 29 - 30B

1шт.

29

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

-, Serial Range: leg-frame

2шт.

30

D38134

BUSHING

SPACER - bushing

1шт.

30a

D56413

CHAIN (AG)

CHAIN - transport

1шт.

30b

NSS

NOT SOLD SEPARAT

LEG - stabilizer

1шт.

31

D37603

PIN

- stabilizer, Serial Range: leg-plate

2шт.

32

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

33

D38080

FOOT REST

PLATE - stabilizer, cleated

2шт.

34

D38079

FOOT REST

PLATE - stabilizer, street or cemetery pad, four holes to mount pads, must use with R31222 pad only

2шт.

35

R31222

SHOE

PAD - rubber, early production, must use with D38079 plate only

4шт.

36

D29712

SPECIAL NUT

- hex, special, 7/16" - 20 NF, used with R31222 pad only

8шт.

37

D61380

STABILIZER

PLATE - stabilizer, street or cemetery pad, must use with D61368 pad only, six holes to mount pad

2шт.

38

D61368

PAD

Rubber, must use with D61380 plate only

2шт.

39

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Used with D61368 pad only Hex, 3/4"-10 x 1 3/4", G5

12шт.

40

25-1012

NUT,3/4"-10, G5

Used with D61368 pad only 3/4"-10, G5

12шт.
