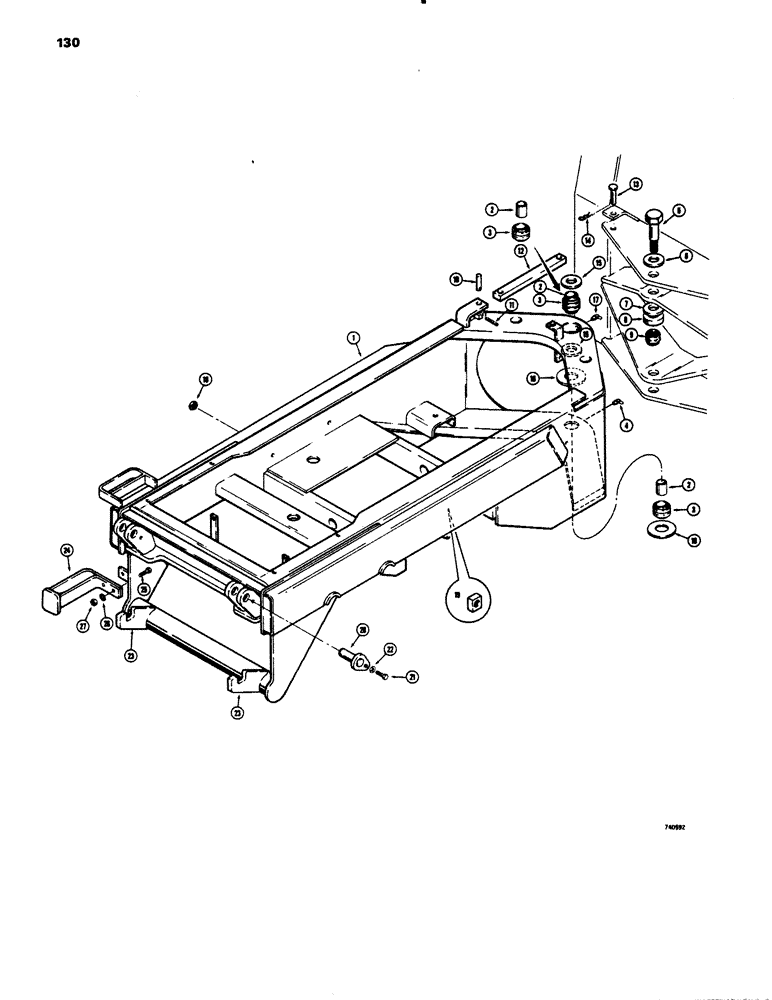

Запчасти Case 26C (130) - BACKHOE MOUNTING PARTS FOR W14 LOADER

1

L55561

FRAME

- rear, articulated loader, backhoe mounting

1шт.

2

L55640

BUSHING,38.1mm ID x 50.75mm OD x 57.15mm L

- rear pivot plate

2шт.

3

D23601

HOUSING

BEARING ASSEMBLY - pivot

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

L74407

PIN,57.15mm OD x 170.69mm L

BOLT - pivot

2шт.

6

D36478

WASHER

- special

2шт.

7

L51472

WASHER,39mm ID x 63.5mm OD x 9.6mm Thk

- special

2шт.

8

L51051

WASHER,26.92mm ID x 63.5mm OD x 12.7mm Thk

- special

2шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex, self lock, 1" - 14 NC

2шт.

10

L51452

AXLE PIN

PIN - link

1шт.

11

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

12

L51230

LINK

- safety

1шт.

13

141-16

CLEVIS PIN,3/4" x 3"

PIN - clevis,3/4"

1шт.

14

136-146

PIN - cotter, hair

1шт.

15

L53964

SEAL

- bearing, 5/16" (7.94 mm) thick,upper

2шт.

16

L55851

WASHER,69mm ID x 117mm OD x 6.86mm Thk

SEAL - bearing, 3/16" (4.76 mm), lower

2шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

18

L53574

PLUG - side channel

4шт.

19

L41470

NUT - special

2шт.

20

31109

PIN ASSY.

PIN - lock head

2шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

22

R24323

WASHER

- special hardened

2шт.

23

L55005

HOOK

- bottom backhoe mounting

2шт.

24

L53618

STEP

- backhoe

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13NC

2шт.
