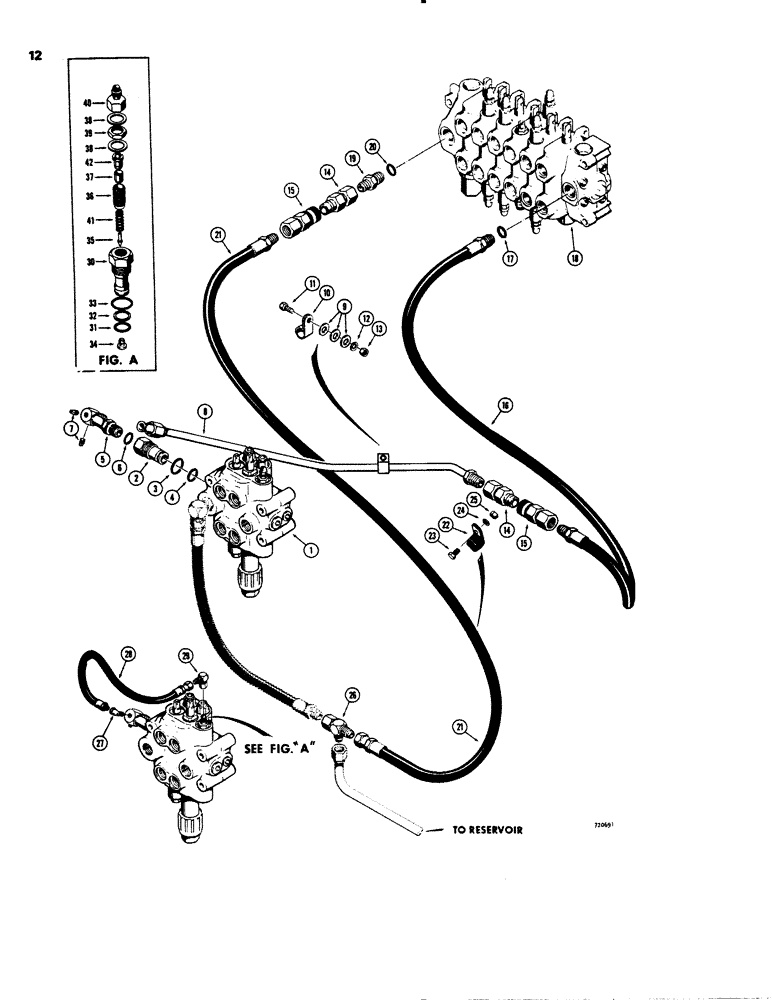

Запчасти Case 26C (012) - 350 CRAWLER TRACTOR TO BACKHOE HYDRAULIC, CIRCUIT, USED ON DOZER BACKHOE MODELS ONLY

1

REF

INSTRUCTION

VALVE - equipment contro, See Model 350 Crawler Parts Catalog

1шт.

2

D61251

FITTING

Special sleeve, Includes Ref. 3 and 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

L32680

RING

O-Ring - small

1шт.

5

D35472

FITTING

Special, used with 3 spool valves only, Includes Ref. 6

1шт.

5

D37824

SPARE PART FITTING - special, used with 2 spool valves only, Includes Ref. 6

1шт.

5

D38646

SPARE PART FITTING - special, used with 1 spool valves only, Includes Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Fitting

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, 1/4" NPT

2шт.

8

F93298

SPARE PART From equipment control valve

1шт.

9

95-10

WASHER,5/8"

WASHER - flat, 1/2"

3шт.

10

D35908

CLAMP,1" Clamping pipe

Tube

1шт.

11

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - flat, 5/16"

1шт.

13

131-4

LOCK NUT,5/16"-18, GB

1шт.

14

REF

INSTRUCTION

COUPLING - disconnect, male, see Figures 048 or 050

2шт.

15

REF

INSTRUCTION

COUPLING - disconnect, female, see Figures 048 or 050

2шт.

16

D38618

SPARE PART Inlet port, 32" (813 mm) long, Includes Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Hose

1шт.

18

REF

INSTRUCTION

VALVE - backhoe control, see Figures 062 or 074 for proper valve

1шт.

19

218-5017

ADAPTER

FITTING - special adapter, Includes Ref. 20

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Fitting

1шт.

21

D38619

HOSE ASSY.

Outlet port, 68" (1727 mm) long

1шт.

22

84183C1

CLAMP

Hose

1шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

25-108

NUT,1/2"-13, G5

Hex

1шт.

26

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

FITTING

1шт.

27

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

Used on Dozer Backhoe Models only

1шт.

28

D37189

HOSE

To relief valve, 22" (559 mm) long, used on dozer backhoe models only

1шт.

29

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

FITTING - special elbow, used on dozer backhoe models only

1шт.

R26337

SPARE PART ASSEMBLY - dual main relief, used on dozer backhoe models only, Includes Ref. 30 - 42

1шт.

30

D37045

CAP

BODY - valve, used on dozer backhoe models only

1шт.

31

L30444

O-RING,0.521" ID x 0.661" OD

Small, used on dozer backhoe models only

1шт.

32

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Backup, used on dozer backhoe models only

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used on dozer backhoe models only

1шт.

34

D26266

SEAT

Pilot, used on dozer backhoe models only

1шт.

35

D26267

PLUNGER

Pilot, used on dozer backhoe models only

1шт.

36

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

Adjusting, used on dozer backhoe models only

1шт.

37

D27261

PISTON

Relief valve, used on dozer backhoe models only

1шт.

38

D27259

SEAL

Special, used on dozer backhoe models only

2шт.

39

86637932

JAM NUT,Jam, 5/8"-18, G5

Hex, lock, used on dozer backhoe models only

1шт.

40

D27260

FITTING

Pilot, used on dozer backhoe models only

1шт.

41

D26268

SPRING

Pilot, used on dozer backhoe models only

1шт.

42

R29766

RETAINER

Piston, used on dozer backhoe models only

1шт.
