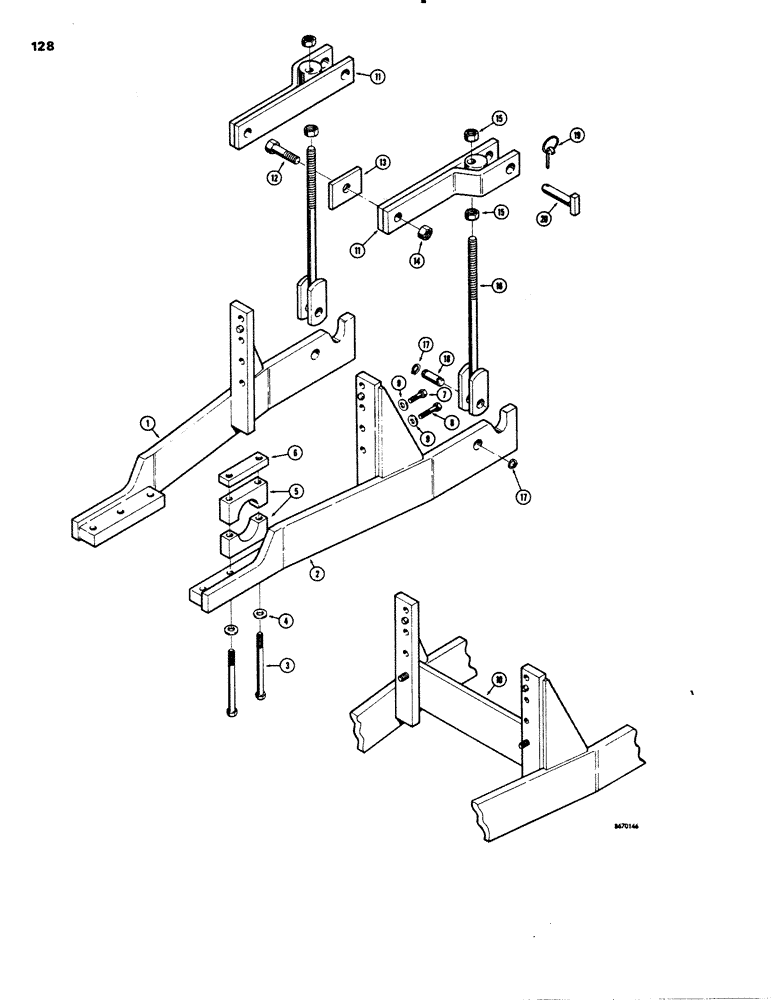

Запчасти Case 26C (128) - BACKHOE MOUNTING PARTS FOR 450 CRAWERS

1

D37308

SUPPORT

ARM - lower support, R.H.,uses 5/8" diameter bolt

1шт.

1

R36019

ARM - lower support, R.H., uses 3/4" diameter bolt

1шт.

2

D37309

SUPPORT

ARM - lower support, L.H., uses 5/8" diameter bolt

1шт.

2

R36020

ARM - lower support, L.H., uses 3/4" diameter bolt

1шт.

3

13-14144

BOLT,Hex, 7/8" - 9 x 9", Gr 5

HHCS - 7/8" - 9 NC x 9"

4шт.

4

131-1223

LOCK NUT,1 1/4"-7, GC

WASHER - special

4шт.

5

D34663

CLAMP

- support arm mounting

4шт.

6

D34722

BLOCK

- tapped

2шт.

7

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2", if used

6шт.

7

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

HHCS - 3/4" - 10 NC x 2", if used

6шт.

8

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

HHCS - 5/8" - 11NC x 2-1/2", if used

2шт.

8

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

HHCS - 3/4" - 10 NC x 2-1/2", if used

2шт.

9

A35147

WASHER

- special

8шт.

10

D37298

PLATE

- center, R.H. to L.H. lower support arm

1шт.

11

D37305

SUPPORT

ARM - upper support

2шт.

12

13-2064

BOLT,Hex, 1-1/4" - 7 x 4", Gr 5

2шт.

13

D37320

PLATE

- reinforcement

2шт.

14

131-661

NUT - hex, self lock, 1-1/4" - 7 NC

2шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex, 1" - 14 NF

4шт.

16

D37097

ROD

- upper to lower support arm

2шт.

17

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

18

D33816

PIN

- tension rod to lower support arm

2шт.

19

D33805

PIN

- retaining, with ring

2шт.

20

D38709

PIN

- upper support arm to mounting frame

2шт.
