Запчасти Case 26C (126) - BACKHOE MOUNTING PARTS FOR 350 CRAWLERS

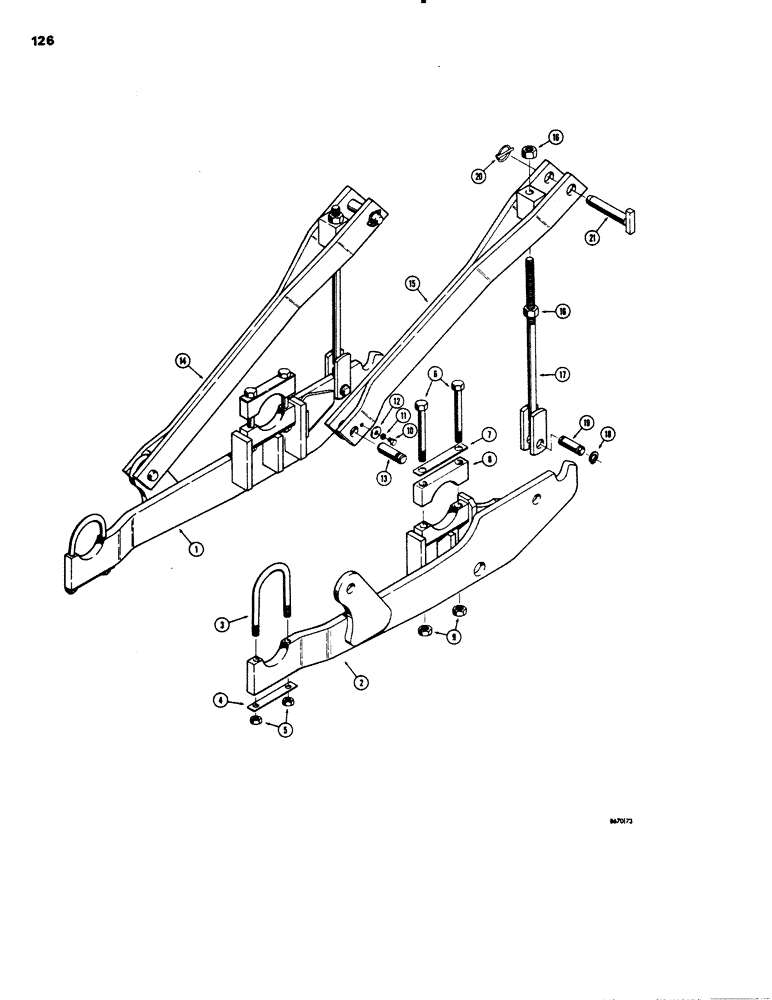

Схема запчастей Case 26C - (126) - BACKHOE MOUNTING PARTS FOR 350 CRAWLERS

Артикул

Название

Примечание

Количество

1

D37455

ARM

- lower support, R.H.

1шт.

2

D37454

ARM

- lower support, L.H.

1шт.

3

D34086

U-BOLT

- support arm mounting

2шт.

4

D34814

PLATE

- lock

2шт.

5

232-41110

NUT,5/8"-11, GC

NUT - hex, lock, 5/8" - 11NC

4шт.

6

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

HHCS - 7/8" - 9 NC x 8"

4шт.

7

D26238

PLATE

- lock

2шт.

8

D31122

BLOCK

CLAMP - upper half

2шт.

9

230-41114

LOCK NUT,7/8"-9, GA

NUT - hex, lock, 7/8" - 9 NC

4шт.

10

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- pin retaining

2шт.

13

D33697

PIN

- upper to lower support arm

2шт.

14

D37461

ARM - upper, R.H.

1шт.

15

D37460

ARM - upper, L.H.

1шт.

16

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF

4шт.

17

D43381

- upper to lower support arm

2шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

19

D33816

PIN

- tension rod to lower support arm

2шт.

20

D33805

PIN

- retaining, with ring

2шт.

21

D38697

PIN ASSY.

PIN - upper support arm to mounting frame

2шт.

RIGHT HAND LINK ASSY R46566 AND LEFT HAND LINK ASSY R46567

1шт.

Выбрано товаров: 22
