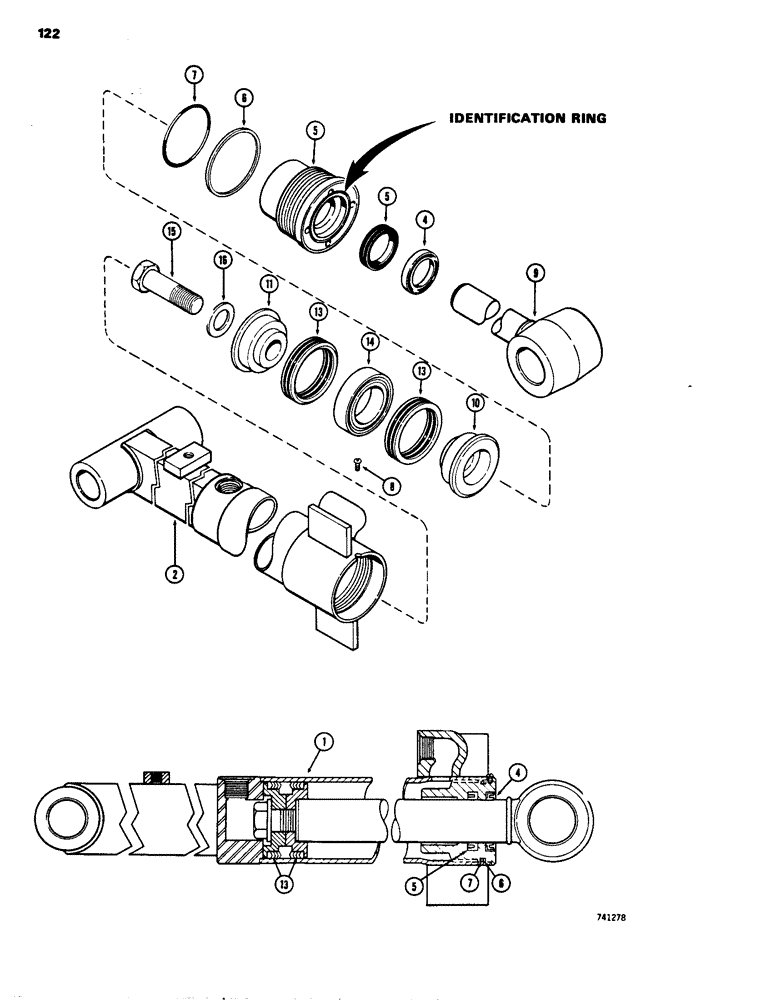

Запчасти Case 26C (122) - G33204 DIPPER EXTENSION CYLINDER, WITH TWO PIECE PISTON, GLAND HAS IDENTIFICATION RING

1

G33204

CYLINDER

- dipper extension, 3" I.D. x 36-3/8" stroke (76 mm x 924 mm), Includes: Ref. 2 - 16

1шт.

2

G33205

TUBE,61.21" L

- cylinder body

1шт.

G33189

GLAND

ASSEMBLY - use G34328, see Figure 124, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34322

1шт.

5

D36969

CUP

SEAL - piston rod

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34322

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34322

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

9

G33207

ROD

- piston, 1-1/2" dia. (38 mm)

1шт.

10

G33150

PISTON

- split, rod end

1шт.

11

D28366

PISTON

- split, bolt end

1шт.

12

RESERVED

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 13 and 14

91шт.

Part of Seal Kit P/N G34322

1шт.

13

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - "V'' Type

2шт.

14

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G34322

BEARING

KIT - seal, Includes: Ref. 4, 6, 7 and P/N G33151

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
