Артикул
Название
Примечание
Количество
1
G101202
BOOM

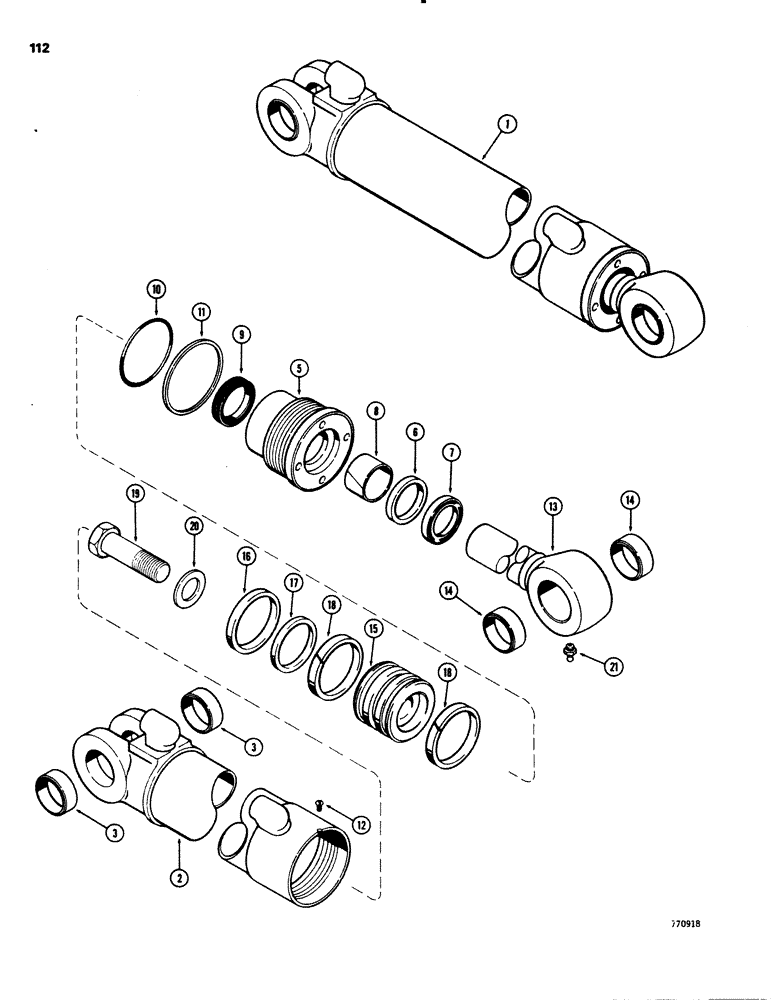

CYLINDER ASSEMBLY - dipper, 3-1/2" (89 mm) I.D. x 33-1/8" (841 mm) stroke, Includes: Ref. 2 - 21
1шт.
2
D43068
CYLINDER
TUBE ASSEMBLY - cylinder, Includes: Ref. 3
1шт.
3
D32919
BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L
- tube
2шт.
G34629
GLAND
ASSEMBLY - cylinder, Includes: Ref. 5 - 11
1шт.
5
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
6
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
7
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod
1шт.
Part of Seal Kit P/N G102402
1шт.
8
G34322
BEARING
- center
1шт.
Part of Seal Kit P/N G102402
1шт.
9
D36971
RING
SEAL - piston rod
1шт.
10
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
- gland
1шт.
Part of Seal Kit P/N G102402
1шт.
11
G32126
BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
- backup
1шт.
Part of Seal Kit P/N G102402
1шт.
12
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - self tapping, No. 8 - 32 NC x 1/4"
1шт.
13
G33597
SCRAPER
ROD ASSEMBLY - piston, 2" (51 mm) dia., Includes: Ref. 14
1шт.
14
D32865
BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L
- piston rod
2шт.
15
G100694
PISTON
- cylinder
1шт.
16
G102286
SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk
- piston
1шт.
Part of Seal Kit P/N G102402
1шт.
17
G100710
RING,Square, 5.28mm Thk x 75.31mm ID
- backup
1шт.
Part of Seal Kit P/N G102402
1шт.
18
G100711
SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk
2шт.
Part of Seal Kit P/N G102402
1шт.
19
28-1640
BOLT,Hex, 1" - 14 x 2-1/2", Gr 8
1шт.
20
G32303
WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
- hardened
1шт.
21
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8" NPT
1шт.
G102402
SEAL
KIT - seal, Includes: Ref. 7, 8, 10, 11, 16, 17 and 18
1шт.
G100778
SEAL
- piston rod, service option - extreme heat or cold
1шт.
Выбрано товаров: 30
