Запчасти Case 26C (108) - G33596 DIPPER CYLINDER, WITH TWO PIECE PISTON, GLAND IS STAMPED WITH CYLINDER PART NUMBER

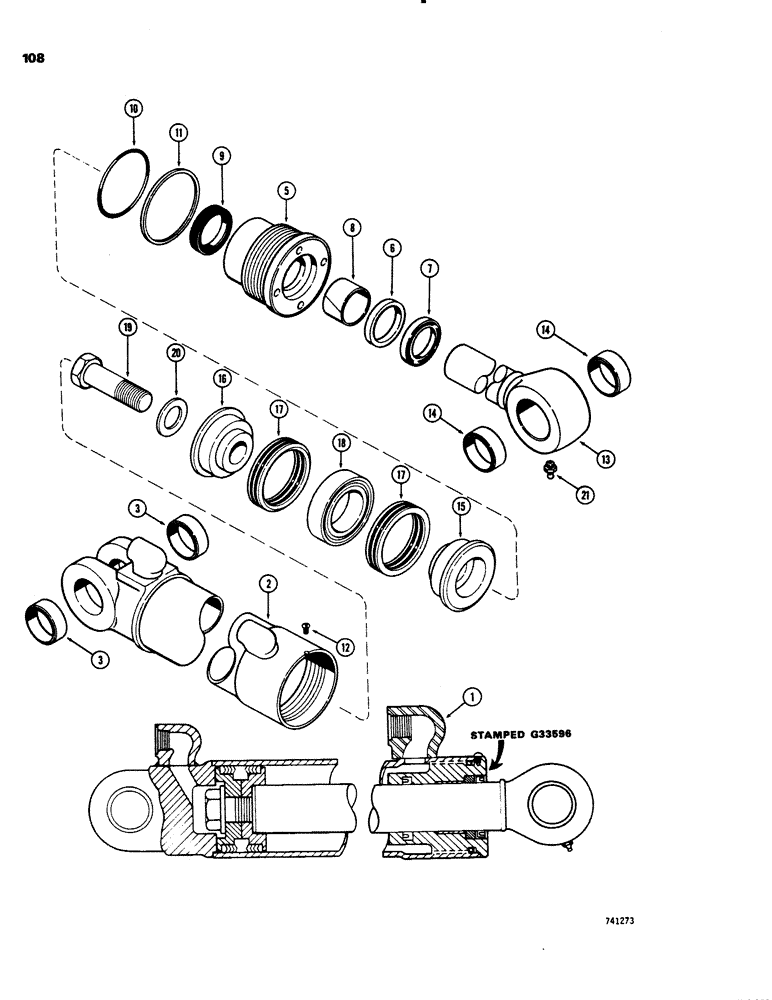

Схема запчастей Case 26C - (108) - G33596 DIPPER CYLINDER, WITH TWO PIECE PISTON, GLAND IS STAMPED WITH CYLINDER PART NUMBER

Артикул

Название

Примечание

Количество

1

G33596

CYLINDER

- dipper, 3-1/2" I.D. x 33-1/8" stroke (89 mm x 841 mm), Includes: Ref. 2 - 21

1шт.

2

D43068

CYLINDER

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- tube

2шт.

G34629

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G34651

1шт.

8

G34322

BEARING

- center

1шт.

Part of Seal Kit P/N G34651

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34651

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G34651

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33597

SCRAPER

ROD - piston, 2" dia. (51 mm), Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33167

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, "V'' type

2шт.

Part of Seal Kit P/N G34651

1шт.

18

D47208

RING

- center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34651

SEAL

KIT - seal, Includes: Ref. 7, 8, 10, 11 and 17

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.

Выбрано товаров: 28
