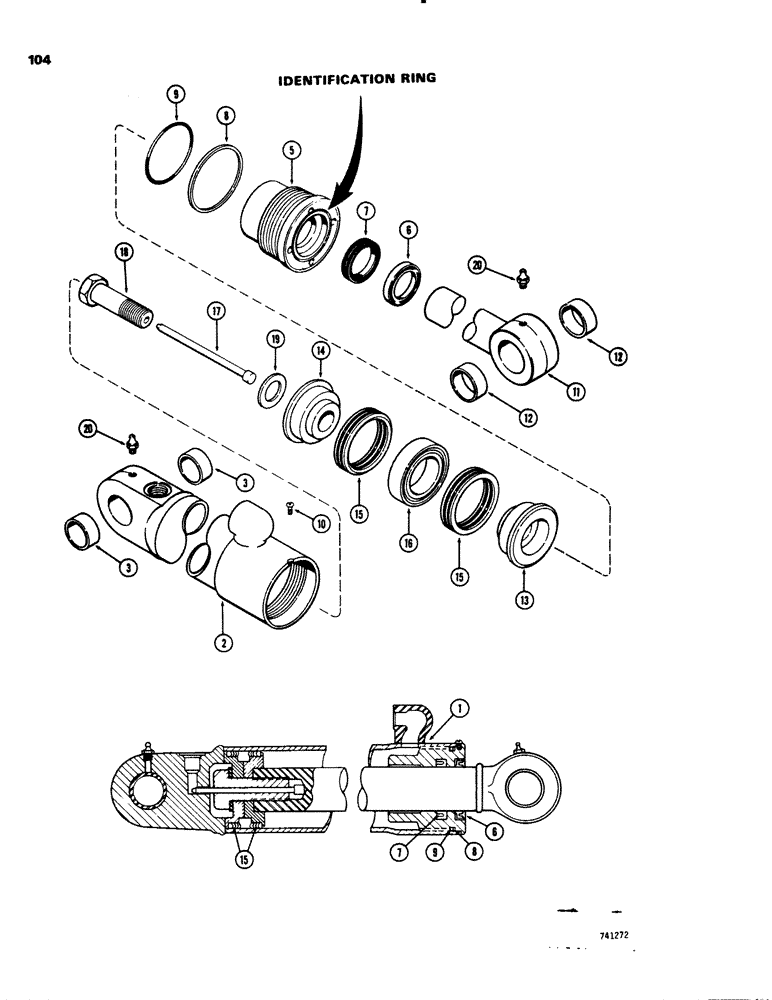

Запчасти Case 26C (104) - G33209 BOOM CYLINDER, WITH TWO PIECE PISTON, GLAND HAS IDENTIFICATION RING

1

G33209

CYLINDER

- boom, 4" I.D. x 37-1/8" stroke (102 mm x 943 mm), Includes: Ref. 2 - 20

1шт.

2

G33215

HYD CYL SLEEVE,46.95" L

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32799

GLAND

ASSEMBLY - use G34635, see Figure 106, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34636

1шт.

7

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - piston rod

1шт.

8

D32176

BRACKET

RING - back-up

1шт.

Part of Seal Kit P/N G34636

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34636

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

11

G33210

ROD - piston, 2-1/4" dia. (57 mm), Includes: Ref. 12

1шт.

12

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

13

D49168

PISTON

- split, rod end

1шт.

14

D46930

PISTON

- split, bolt end

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, "V'' type

2шт.

Part of Seal Kit P/N G34636

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

G33217

PIN

- cushion relief

1шт.

18

G33218

BOLT

- special, 1-1/4" - 12 NF x 3", grade 8

1шт.

19

G32351

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34636

SEAL

KIT - seal, Includes: Ref. 6, 8, 9 and 15 and extra parts

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold

1шт.
