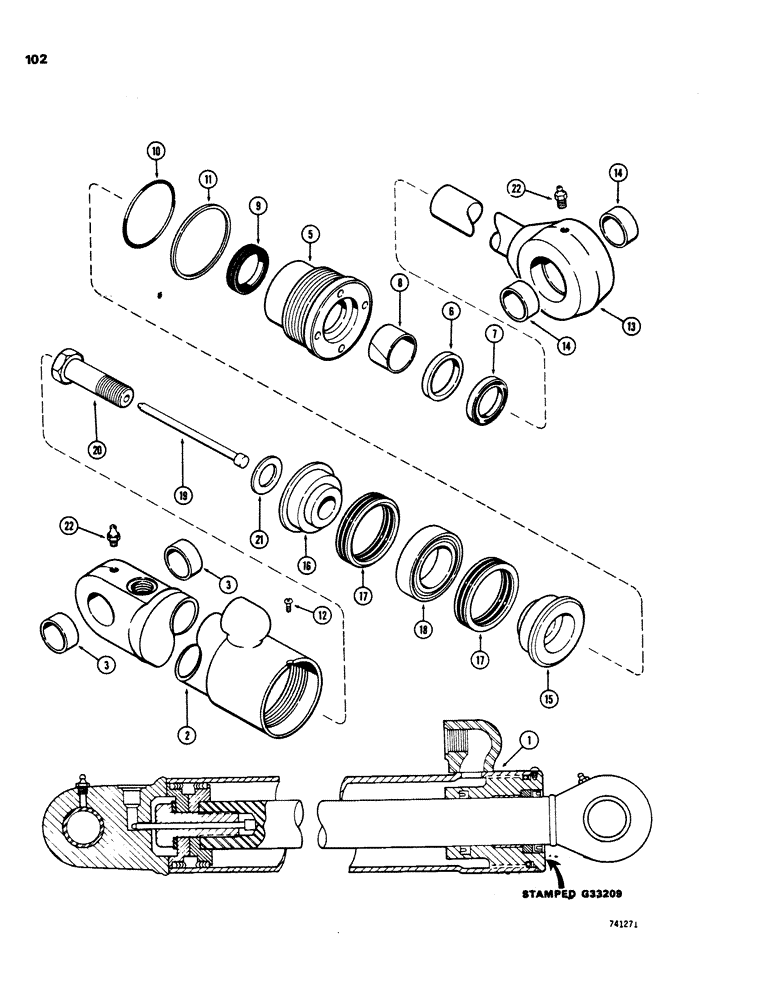

Запчасти Case 26C (102) - G33209 BOOM CYLINDER, WITH TWO PIECE PISTON, GLAND IS STAMPED WITH CYLINDER PART NUMBER

1

G33209

CYLINDER

- boom, 4" I.D. x 37-1/8" stroke (102 mm x 943 mm), Includes: Ref. 2 - 22

1шт.

2

G33215

HYD CYL SLEEVE,46.95" L

TUBE - cylinder, Includes: Ref. 3

1шт.

3

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G34635

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34636

1шт.

8

G34620

BUSHING

BEARING - center

1шт.

Part of Seal Kit P/N G34636

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34636

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G34636

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33210

ROD - piston, 2-1/4" dia. (57 mm), Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

D49168

PISTON

- split, rod end

1шт.

16

D46930

PISTON

- split, bolt end

1шт.

17

D47204

PACKING,89.15mm ID x 100.86mm OD

- piston, "V'' type

2шт.

Part of Seal Kit P/N G34636

1шт.

18

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

19

G33217

PIN

- cushion relief

1шт.

20

G33218

BOLT

- special, 1-1/4" - 12 NF x 3", grade 8

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G34636

SEAL

KIT - seal, Includes: Ref. 7, 8, 10, 11 and 17

1шт.

G100779

SEAL

- piston rod, service option - extreme heat or cold

1шт.
