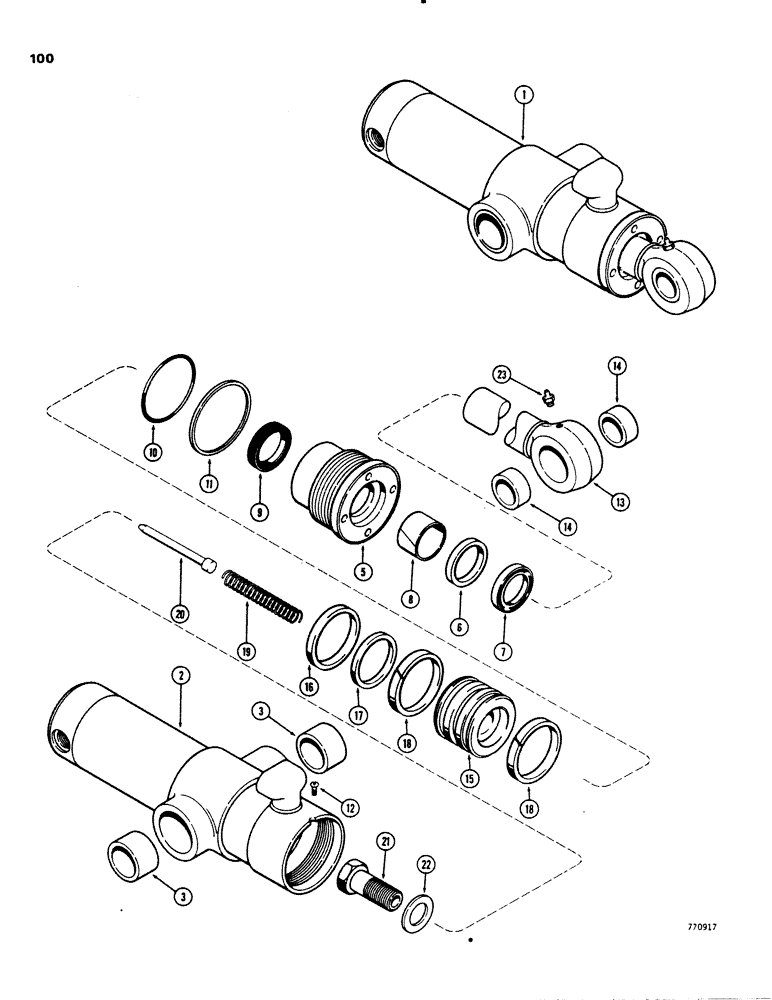

Запчасти Case 26C (100) - G101284 AND G101285 SWING CYLINDER, WITH ONE PIECE PISTON

1

G101285

CYLINDER

ASSEMBLY - swing, L.H., 3-1/2" (89 mm) I.D. x 11" (279 mm) stroke, Includes: Ref. 2 - 23

1шт.

1

G101284

CYLINDER

ASSEMBLY - swing, R.H., 3-1/2" (89 mm) x 11 " (279 mm) stroke, Includes: Ref. 2 - 23

1шт.

2

G101439

TUBE,18.19" L

ASSEMBLY - cylinder, L.H., Includes: Ref. 3

1шт.

2

G101438

TUBE

ASSEMBLY - cylinder, R.H., Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

G34645

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G102411

1шт.

8

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G102411

1шт.

9

D36969

CUP

SEAL - piston rod

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102411

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back-up

1шт.

Part of Seal Kit P/N G102411

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33475

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) dia., Includes: Ref. 14

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

15

G100700

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102411

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- back-up

1шт.

Part of Seal Kit P/N G102411

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G102411

1шт.

19

D44554

VALVE SPRING

SPRING - relief

1шт.

20

G100049

PIN

- sliding, spring guide

1шт.

21

D44571

BOLT

BOLT - 1" - 14NF x 3", grade 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G102411

SEAL

KIT - seal, Includes: Ref. 7, 8, 10, 11, 16, 17 and 18

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
