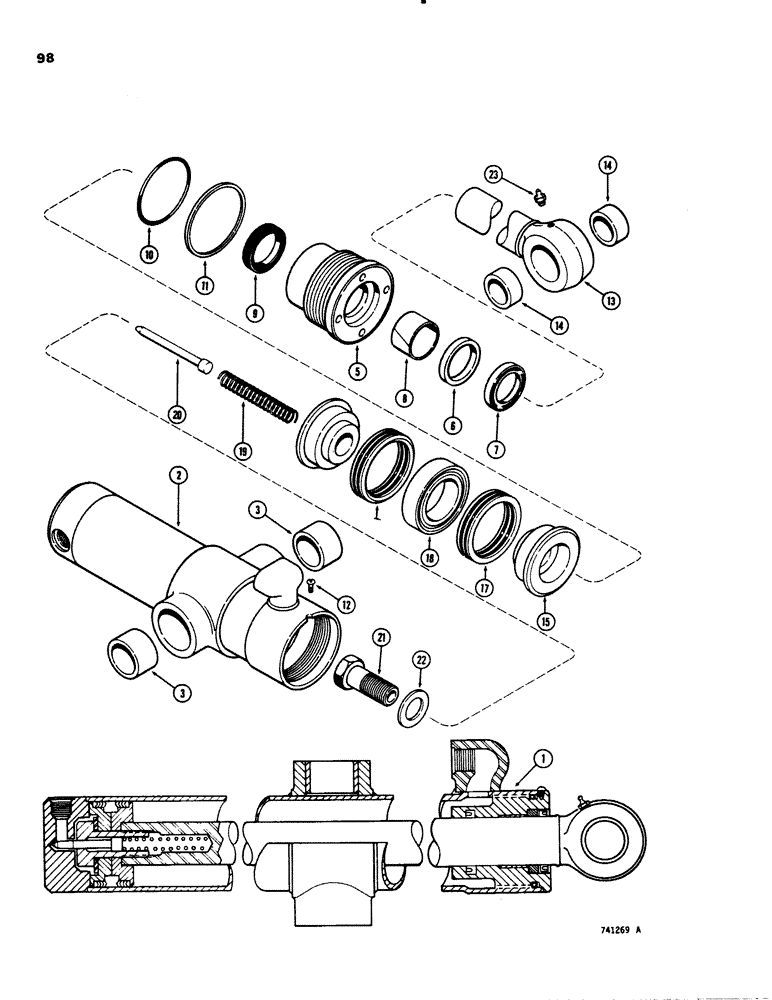

Запчасти Case 26C (098) - G100072 AND G100073 SWING CYLINDER, WITH TWO PIECE PISTON, GLAND IS STAMPED WITH CYLINDER PART NUMBR

1

G100072

CYLINDER ASSY.

CYLINDER - swing, R.H., 3-1/2" I.D. x 11" (89 mm x 279 mm) stroke, Includes: Ref. 2 - 23

1шт.

1

G100073

CYLINDER ASSY.

CYLINDER - swing, L.H., 3-1/2" I.D. x 11" (89 mm x 279 mm) stroke, Includes: Ref. 2 - 23

1шт.

2

G101438

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

2

G101439

TUBE,18.19" L

- cylinder, L.H., Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

G34645

GLAND

ASSEMBLY, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34652

1шт.

8

G34302

BEARING

- center

1шт.

Part of Seal Kit P/N G34652

1шт.

9

D36969

CUP

SEAL - piston rod

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G34652

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G34652

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

13

G33475

ROD

- piston, 1-1/2" dia. (38 mm), Includes: Ref. 14

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

15

G33474

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, "V''

2шт.

Part of Seal Kit P/N G34652

1шт.

18

D47208

RING

- center bearing

1шт.

19

D44554

VALVE SPRING

SPRING - relief

1шт.

20

G100049

PIN

- sliding, spring guide

1шт.

21

D44571

BOLT

BOLT - 1" - 14 NF x 3", grade 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G34652

GASKET KIT

KIT - seal, Includes: Ref. 7, 8, 10, 11 and 17

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
