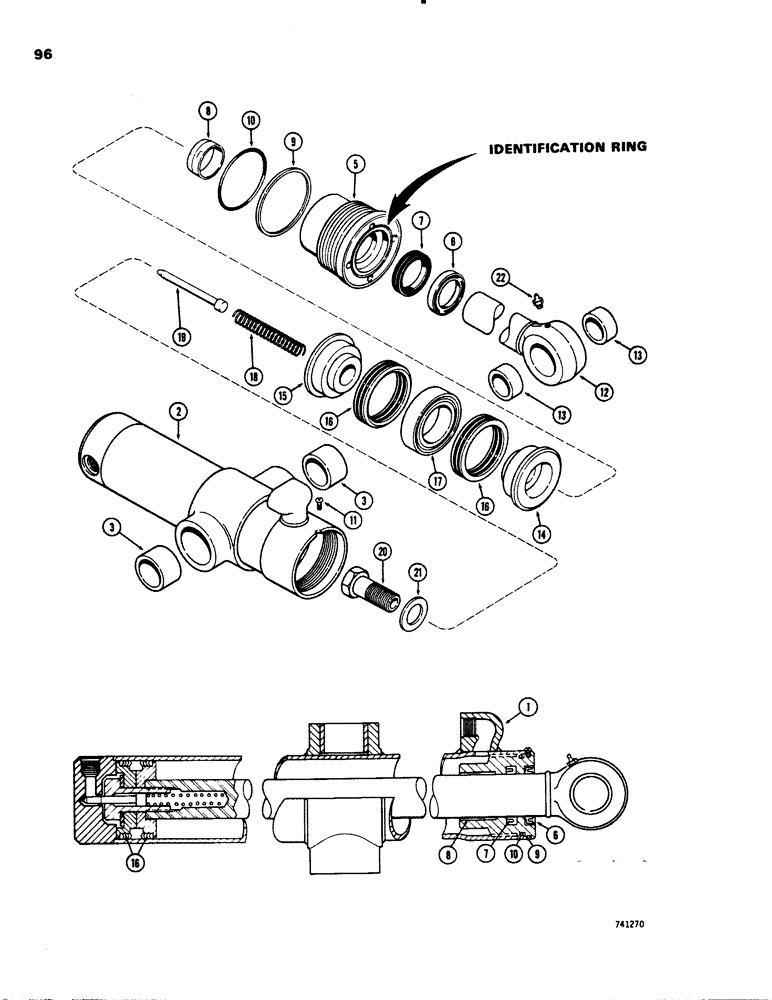

Запчасти Case 26C (096) - G33472 AND G33473 SWING CYLINDERS, WITH TWO PIECE PISTON, GLAND HAS IDENTIFICATION RING

1

G33472

CYLINDER

- swing, L.H., 3-1/2" I.D. x 11" (89 mm x 279 mm) stroke, Includes: Ref. 2 - 22

1шт.

Use P/N G33472 cylinder and 218-5121 fitting

1шт.

1

G33473

CYLINDER

- swing, R.H., 3-1/2" I.D. x 11" (89 mm x 279 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G101349

TUBE - cylinder, L.H., Includes: Ref. 3

1шт.

2

G101348

CYLINDER

TUBE - cylinder, R.H., Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

G33486

GLAND

ASSEMBLY - use G34645, see Figure 098, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G32301

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

8

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of Seal Kit P/N G32301

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G32301

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32301

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, No. 8 - 32 NC x 1/4"

1шт.

12

G33475

ROD

- piston, 1-1/2" dia. (38 mm), Includes: Ref. 13

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

14

G33474

PISTON

- split, rod end

1шт.

15

D28367

PISTON

- split, bolt end

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, "V'' type

2шт.

Part of Seal Kit P/N G32301

1шт.

17

D47208

RING

- center bearing

1шт.

18

D44554

VALVE SPRING

SPRING - relief

1шт.

19

G100049

PIN

- sliding, spring guide

1шт.

20

D44571

BOLT

BOLT - 1" - 14 NF x 3", grade 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G32301

KIT

- seal, Includes: Ref. 6, 8, 9, 10 and 16

1шт.

G100776

SEAL

- piston rod, service option - extreme heat or cold

1шт.
