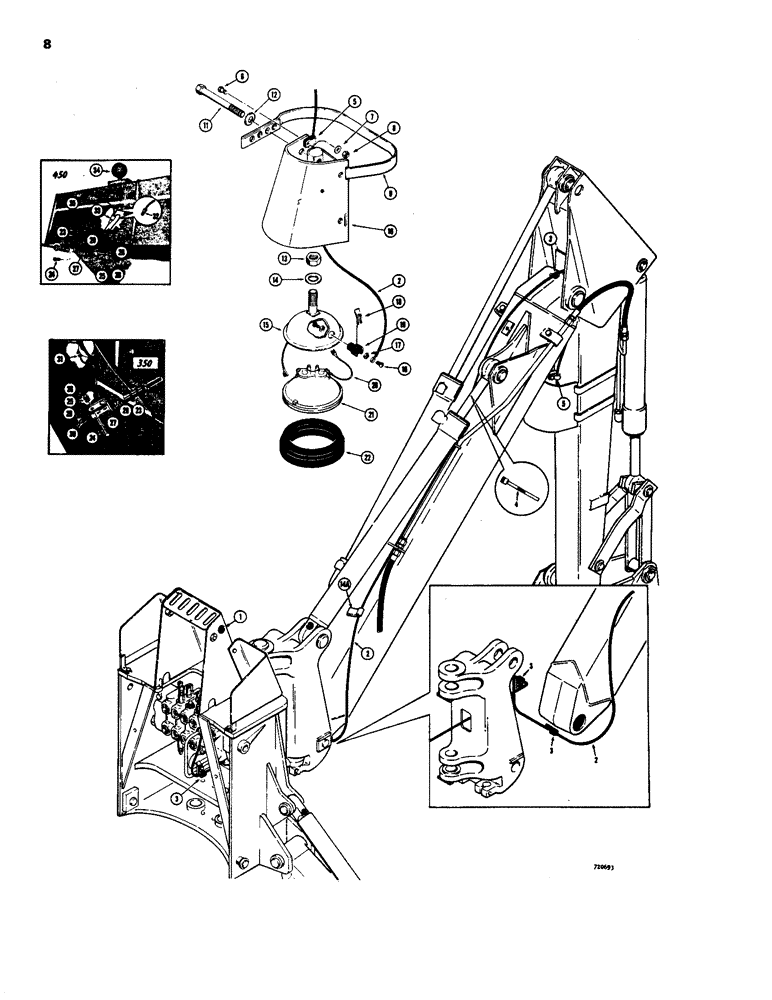

Запчасти Case 26C (008) - DIPPER LIGHT - 12 VOLT, MODEL 350 CRAWLER ONLY, MODEL 450 CRAWLER ONLY

1

D37936

GROMMET

- wire, if used, dipper-light-12 volt

1шт.

2

D37808

WIRE ASSEMBLY - dipper light-12 volt

1шт.

3

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, dipper light-12 volt

4шт.

4

L18331

CABLE TIE,375.9mm L, Nylon

STRAP - wire, dipper light -12 volt

1шт.

5

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, dipper light-12 volt

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Dipper light-12 volt Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

7

195-25

WASHER,3/8"

- flat, , dipper light-12 volt 3/8"

1шт.

8

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC, dipper light-12 volt

1шт.

9

D41171

BAND

- light mounting, dipper light-12 volt

2шт.

10

D41427

SHIELD

- light, dipper light-12 volt

1шт.

11

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Dipper light-12 volt Hex, 1/2"-13 x 6 1/2", G5

2шт.

12

92-8

LOCK WASHER,1/2"

dipper light-12 volt 1/2"

2шт.

13

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC, dipper light-12 volt

1шт.

14

195-33

WASHER,1/2"

- flat, , dipper light-12 volt 1/2"

1шт.

14a

D48071

CLAMP

- wire, weld on, dipper light-12 volt

1шт.

D37811

LAMP

LIGHT ASSEMBLY - dipper, light-12 volt, Includes: Ref. 15 - 22

1шт.

D37811

LAMP

LIGHT ASSEMBLY - dipper light-12 volt, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - lamp, dipper light-12 volt

1шт.

16

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, No. 8 - 32 NC x 1/4", dipper light-12 volt

2шт.

17

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , Dipper light-12 volt Int Tooth, #8

2шт.

18

10927

SPRING

- lamp, dipper light-12 volt

1шт.

19

B50293

TERMINAL CONNECTOR

TERMINAL - lamp, insulated, dipper light-12 volt

1шт.

20

A25262

ELECTRICAL WIRE

WIRE - lamp, dipper light-12 volt

1шт.

21

D33182

LAMP

- sealed unit, No. 4410, dipper light-12 volt

1шт.

22

D31441

RETAINER

- lamp, dipper light-12 volt

1шт.

23

D31547

CONNECTOR - electrical, male, dipper light-12 volt

1шт.

24

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

RHMS - No. 10 - 24 NC x 3/4", dipper light-12 volt

2шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, , Dipper light-12 volt #10

2шт.

26

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC, dipper light-12 volt

2шт.

27

D38499

SOCKET

- electrical, dipper light-12 volt

1шт.

28

D38498

WIRE - socket to tail light, dipper light-12 volt

1шт.

29

49560

BAR

- wire, model 350 crawler only

1шт.

30

D38495

CONNECTOR - male, spade tongue, model 350 crawler omly

1шт.

31

D30243

LAMP

LIGHT ASSEMBLY - tail, See 350 Crawler Parts Catalog, model 350 crawler only

1шт.

32

32395

SEAL ASSY.

CONNECTOR - male bullet, model 450 crawler only

2шт.

33

D23602

CONNECTOR - three wire, model 450 crawler only

1шт.

34

D34934

LAMP

LIGHT ASSEMBLY - rear flood, parts list Figure 006, model 450 crfawler oly

1шт.

35

G13223

WIRE - extension, used when moving flood light to backhoe control tower, model 450 crawler only

1шт.
