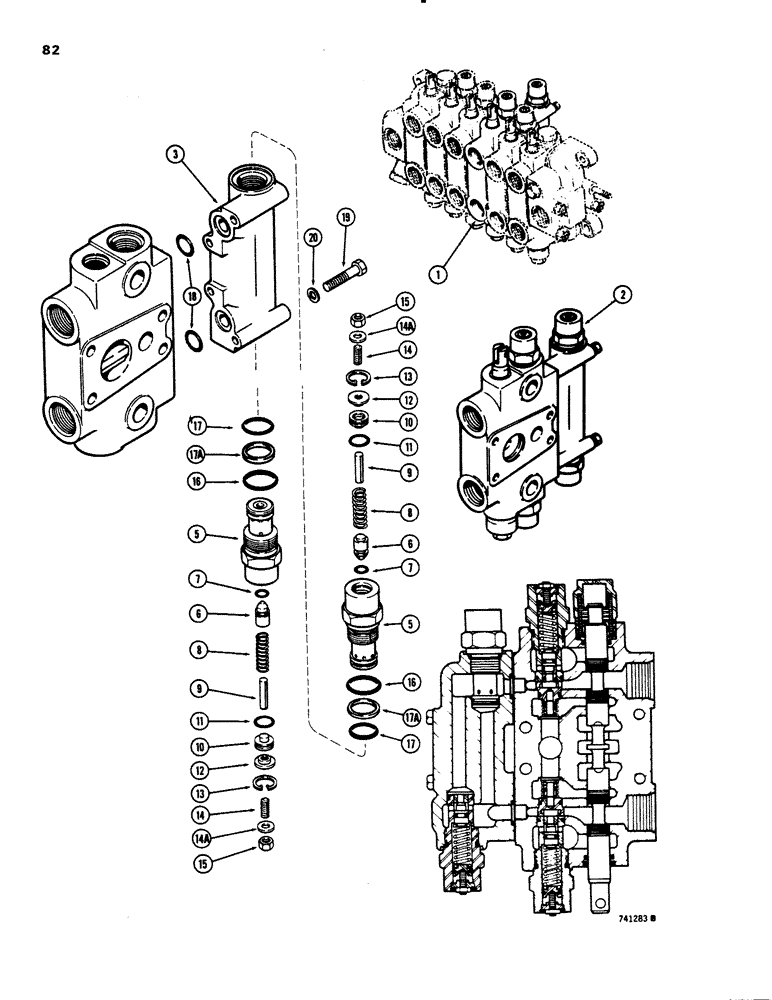

Запчасти Case 26C (082) - G33115 BACKHOE CONTROL VALVE, SECONDARY RELIEF VALVE

1

G33116

KNIFE SECTION

SECTION ASSEMBLY - swing, see Figure 080, Includes: Ref. 2 - 20

1шт.

2

G33117

HOUSING

VALVE ASSEMBLY - secondary relief, Includes: Ref. 3 - 17A

1шт.

3

NSS

NOT SOLD SEPARAT

MANIFOLD - housing body

1шт.

G34051

VALVE

ASSEMBLY - relief, order G34862 kit, Includes: Ref. 5 - 17A

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

6

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

7

G102844

O-RING

- poppet

1шт.

Part of service valve Kit P/N G34862

1шт.

8

G33090

SPRING

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

9

G33241

PIN

- stop, relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

10

G33091

PISTON

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

11

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

Part of service valve Kit P/N G34862

1шт.

12

G33092

RETAINER

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

Part of service valve Kit P/N G34862

1шт.

14

G102782

SET SCREW,1/4" - 20 x 1"

- set, hex socket, 1/4" - 20 NC x 3/4"

1шт.

Part of service valve Kit P/N G34862

1шт.

14a

G102781

WASHER

- special, if used

1шт.

Part of service valve Kit P/N G34862

1шт.

15

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, lock, 1/4" - 20 NC

1шт.

Part of service valve Kit P/N G34862

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

Part of service valve Kit P/N G34862

1шт.

17

G100959

O-RING,0.744" ID x 0.879" OD

- small

1шт.

Part of service valve Kit P/N G34862

1шт.

17a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

Part of service valve Kit P/N G34862

1шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- housing to valve

2шт.

19

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

G34862

VALVE

KIT - service for G34051 valve, includes Refs. 5 - 17A

1шт.
