Запчасти Case 26C (078) - G33115, G34898 AND G100182 BACKHOE, CONTROL VALVES, DIPPER AND BUCKET SECTIONS

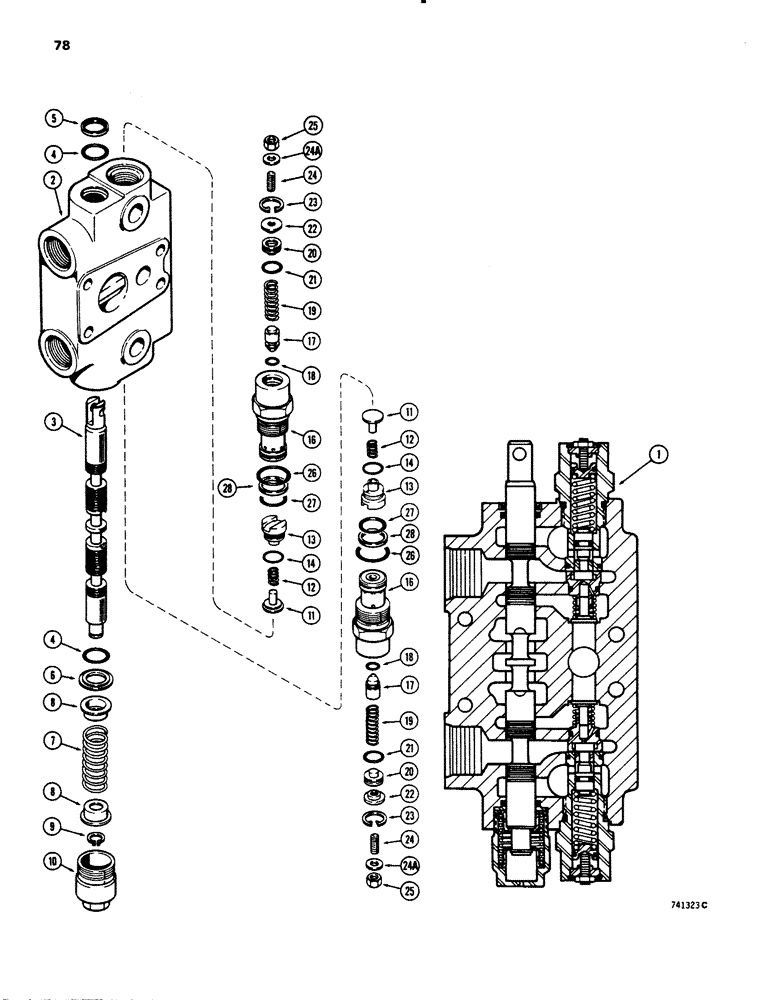

Схема запчастей Case 26C - (078) - G33115, G34898 AND G100182 BACKHOE, CONTROL VALVES, DIPPER AND BUCKET SECTIONS

Артикул

Название

Примечание

Количество

1

G33097

VALVE

DIPPER AND BUCKET SECTIONS - G33115 or G34898 backhoe control valves, order G35444 for service, Includes: Ref. 2 - 28

2шт.

1

G35444

VALVE

DIPPER AND BUCKET SECTIONS - G100182 backhoe control valve, Includes: Ref. 2 - 28

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G33803

RETAINER

- O-ring

1шт.

7

G34463

SPRING

- spool centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

10

P0033080G

SCREW

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

2шт.

G34043

KIT

VALVE ASSEMBLY - relief, order G34862 kit, Includes: Ref. 16 - 28

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

18

G102844

O-RING

1шт.

Part of service valve Kit P/N G34862

1шт.

19

G33090

SPRING

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

20

G33091

PISTON

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

21

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of service valve Kit P/N G34862

1шт.

22

G33092

RETAINER

- relief valve

1шт.

Part of service valve Kit P/N G34862

1шт.

23

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

Part of service valve Kit P/N G34862

1шт.

24

G102782

SET SCREW,1/4" - 20 x 1"

- set, hex socket, 1/4" - 20 NC x 3/4"

1шт.

Part of service valve Kit P/N G34862

1шт.

24a

G102781

WASHER

- special, if used

1шт.

Part of service valve Kit P/N G34862

1шт.

25

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, lock, 1/4" - 20 NC

1шт.

Part of service valve Kit P/N G34862

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

Part of service valve Kit P/N G34862

1шт.

27

G100959

O-RING,0.744" ID x 0.879" OD

- small

1шт.

Part of service valve Kit P/N G34862

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

Part of service valve Kit P/N G34862

1шт.

G34862

VALVE

KIT - service for G34043, includes Refs. 16 - 28

1шт.

Выбрано товаров: 45
