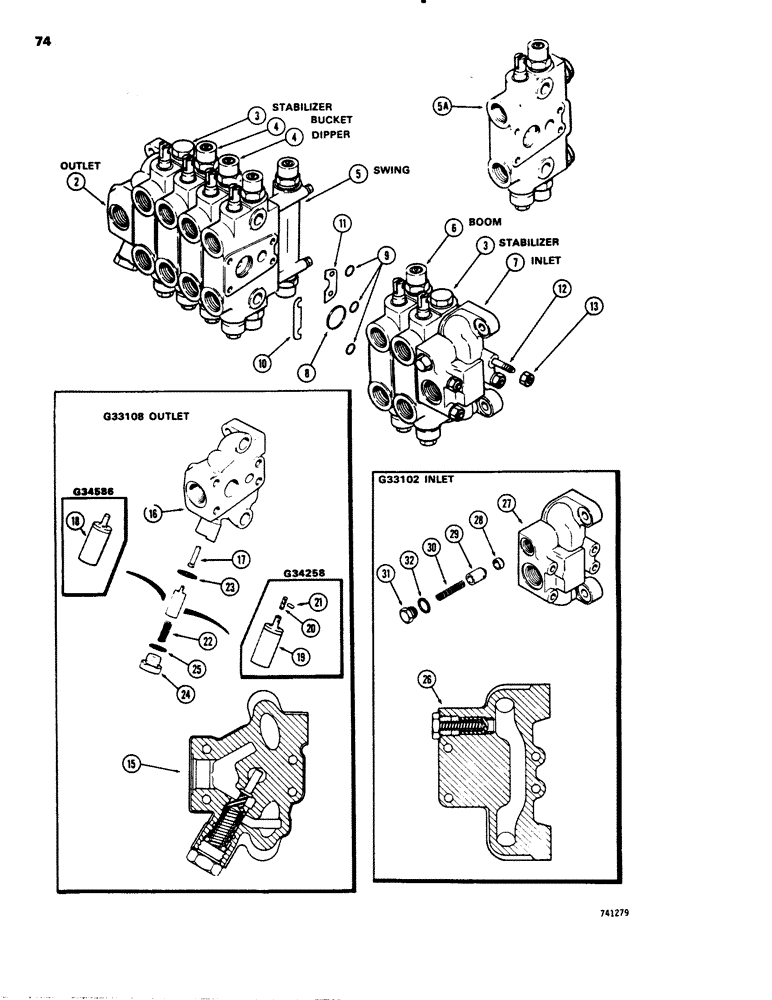

Запчасти Case 26C (074) - G33115, G34898 AND G100182 BACKHOE, CONTROL VALVES, G33108 OUTLET SECTION, G33102 INLET SECTION

1

G33115

VALVE

ASSEMBLY - backhoe control, check valve SN plate, control valves for valve part number, not shown assembled, control valves, Includes: Ref. 2 - 13

1шт.

1

G34898

VALVE

ASSEMBLY - backhoe control, check valve SN plate, control valves for valve part number, not shown assembled, control valves, Includes: Ref. 2 - 13

1шт.

1

G100182

VALVE

ASSEMBLY - backhoe control, check valve SN plate, control valves for valve part number, not shown assembled, control valves, Includes: Ref. 2 - 13

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list below, control valves

1шт.

3

REF

INSTRUCTION

STABILIZER SECTION - See Figure 076, control valves

2шт.

4

REF

INSTRUCTION

BUCKET & DIPPER SECTION - See Figure 078, control valves

2шт.

5

G33116

KNIFE SECTION

SWING SECTION - used in G33115 valve only, parts list, control valves Figure 080

1шт.

5a

REF

INSTRUCTION

SWING SECTION - used in G34898 and G100182 valves only, see Figure 084, control valves

1шт.

6

REF

INSTRUCTION

BOOM SECTION - see Figure 086, control valves

1шт.

7

G33102

MANIFOLD

INLET SECTION - parts list below, control valves

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- large, control valves

7шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- small, control valves

21шт.

10

G33964

SHIM,.002" Thk

(0.051 mm), Port side, Control valves .002" Thk

7шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002"), Non-port side, Control valves 0.051mm Thk

7шт.

12

G33124

BOLT

ROD - tie, 3/8" - 16 NC x 17-3/4", control valves

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, control valves

8шт.

15

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, G33108 outlet section, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, G33108 outlet section

1шт.

17

G33110

PISTON

- regeneration sensing, G33108 outlet section

1шт.

18

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, one piece, G33108 outlet section, Includes: Ref. 19 - 21

1шт.

19

G33111

SPOOL

- regeneration, three piece, order G34586, G33108 outlet section

1шт.

20

G34259

PIN - orifice, G33108 outlet section

1шт.

21

138-6

LOCK PIN,1/16" x 1/2", Slotted

PIN - roll, 1/16" x 7/16", G33108 outlet section

1шт.

22

G33112

SPRING

- regeneration spool, G33108 outlet section

1шт.

23

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- manifold, G33108 outlet section

1шт.

24

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

regeneration spool, G33108 outlet section Hex Soc, 1 3/16"-12 ORB

1шт.

25

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, G33108 outlet section

1шт.

26

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, G33102 inlet section, Includes: Ref. 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

MANIFOLD - section body, G33102 inlet section

1шт.

28

G33104

SEAT

- check valve poppet, G33102 inlet section

1шт.

29

G33105

VALVE POPPET

POPPET - check valve, G33102 inlet section

1шт.

30

G33106

SPRING

- check valve, G33102 inlet section

1шт.

31

G33107

PLUG

- check valve, G33102 inlet section

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, G33102 inlet section

1шт.
