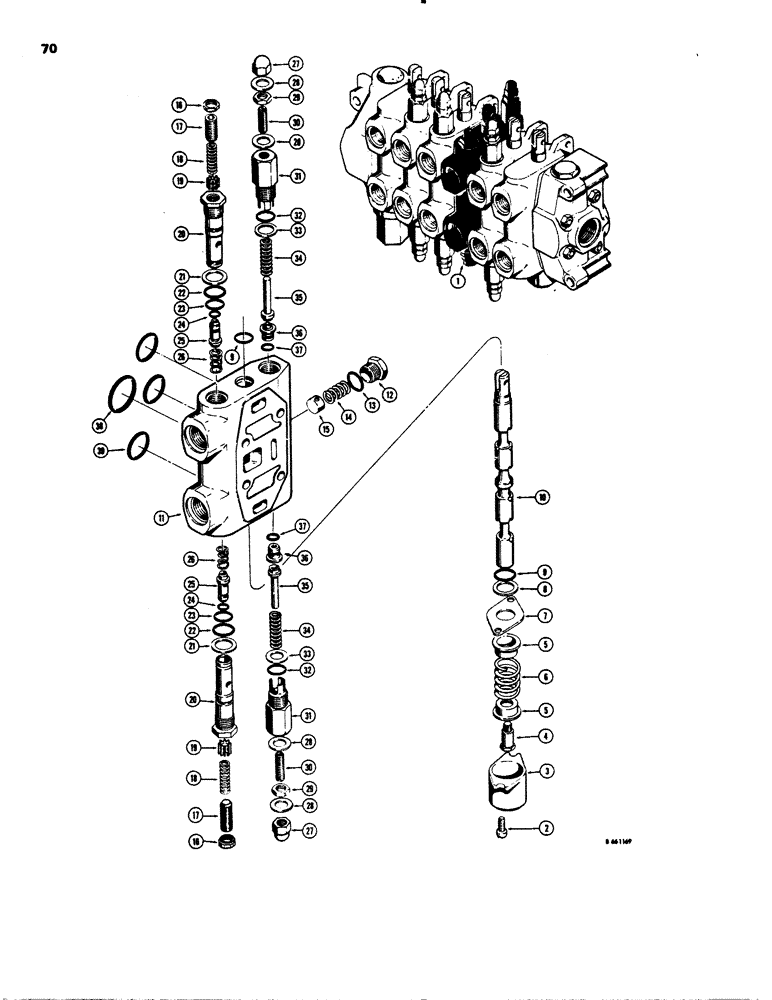

Запчасти Case 26C (070) - D39047 BACKHOE CONTROL VALVE, D40749 BACKHOE SWING SECTION

1

D40749

SECTOR

SWING SECTION - backhoe control valve, Includes: Ref. 2 - 39

1шт.

2

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

FHMS - 1/4" - 20 NC x 3/4"

2шт.

3

D26823

CAP

- swing section

1шт.

4

D26833

BOLT

- stripper, special

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D40201

SPRING

- centering

1шт.

7

D26830

PLATE

- retaining

1шт.

8

D26829

RING

- backup

1шт.

9

D36830

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - swing section

1шт.

12

D30696

CYLINDER END CAP

CAP - check valve

1шт.

13

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - O-ring

1шт.

14

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

15

D26824

SPOOL

POPPET - check valve

1шт.

D26838

FILTER

CARTRIDGE ASSEMBLY - relief, crossover, color code - brown, 1300 PSI preset at factory, Includes: Ref. 16 - 26

2шт.

16

D26879

LOCK NUT

NUT - lock, special

1шт.

17

D26878

X

SCREW - adjusting

1шт.

18

D26876

VALVE SPRING

SPRING - cartridge

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - floating

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

21

D26870

GASKET

WASHER - gasket

1шт.

22

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- outer

1шт.

23

D31412

O-RING

- inner

1шт.

24

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, poppet

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

26

D43418

VALVE SPRING

SPRING - poppet

1шт.

D42866

VALVE

CARTRIDGE - secondary relief, not preset - must be set to correct pressure when installed on valve, Includes: Ref. 27 - 37

2шт.

27

129-526

CROWN NUT,Low, 3/8" - 24

- acorn, 3/8" - 24 NF

1шт.

28

23150

WASHER

GASKET - copper

2шт.

29

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

30

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

32

D26872

O-RING

- body

1шт.

33

D31450

WASHER

- gasket

1шт.

D41865

KIT - seal and poppet, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

37

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, seat

1шт.

38

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- large

1шт.

39

D26819

O-RING,1.299" ID x 1.505" OD

- small

3шт.
