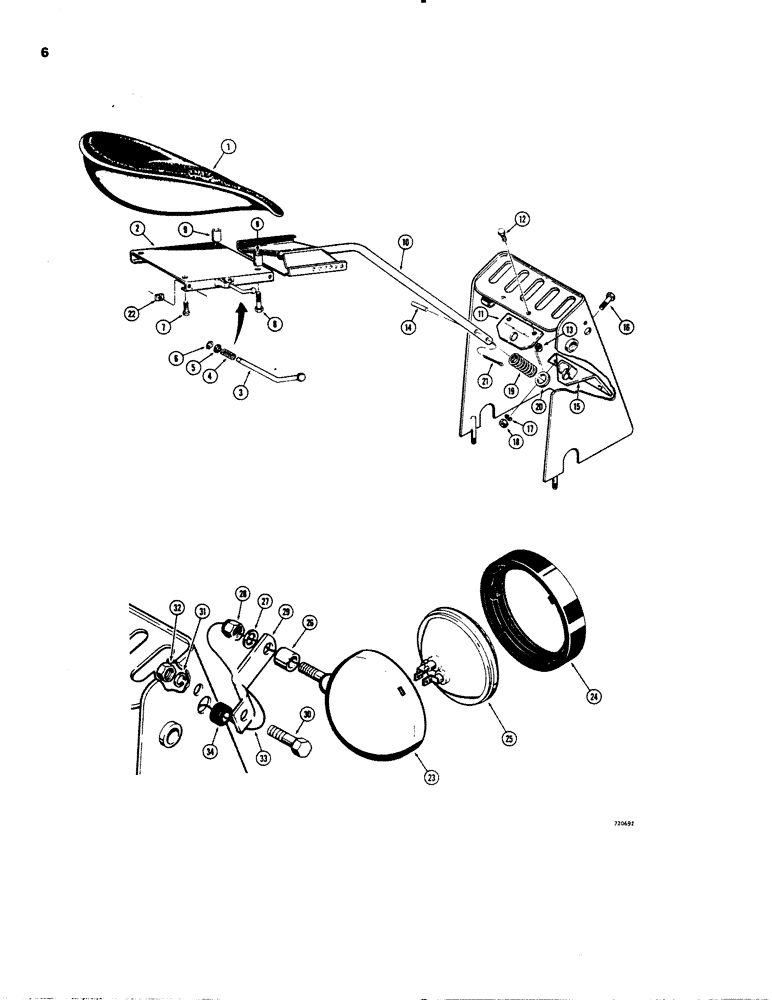

Запчасти Case 26C (006) - SWING DOWN BACKHOE SEAT, REAR FLOODLIGHT

D31309

SEAT

ASSEMBLY - backhoe, swing down, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

D31308

ADJUSTER

SLIDE - seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

1шт.

7

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

9

D31306

SPACER

- slide

2шт.

10

D38329

ROD - seat support

1шт.

11

D46418

PLATE - seat retaining

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

13

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC

2шт.

14

138-203

LOCK PIN,1/2" x 1 1/2", Slotted

Pin, 1/2" x 1 1/2", Slotted

1шт.

15

D46416

BRACKET - seat stop

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

D25773

SPRING

- rod

1шт.

20

B18275

WASHER

- spring retaining

1шт.

21

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

22

D49085

PIPE

BLOCK - stop

2шт.

D34934

LAMP

LIGHT - flood, complete, 12 volt, if used, rrear floodlight, Includes: Ref. 23 - 28

1шт.

D35913

LAMP

LIGHT - flood, complete, 24 volt, if used, rear floodlight, Includes: Ref. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

SHELL - lamp, rear floodlight

1шт.

24

A25213

RETAINER

- lamp, rubber, 12 volt light, if used, rear floodlight

1шт.

24

A25210

MOUNTING PARTS

RETAINER - lamp, rubber, 24 volt light, if used, rear floodlight

1шт.

25

A24572

LAMP

- sealed unit, 12 volt, No. 4411, if used, rear flodlight

1шт.

25

D37920

LAMP

- sealed unit, 24 volt, No. 4758, if used, rear floodlight

1шт.

26

D37048

BUSHING

- pivot, rear floodlight

1шт.

27

D37049

WASHER

- special, rear floodlight

1шт.

28

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self lock, 1/2" - 20 NF, rear floodlight

1шт.

29

D30662

LINK

- light mounting, rear floodlight

1шт.

30

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Rear floodlight Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

31

92-8

LOCK WASHER,1/2"

rear floodlight 1/2"

1шт.

32

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, rear floodlight

1шт.

33

G13223

WIRE - light, rear floodlight

1шт.

34

D37936

GROMMET

- wire, rear floodlight

1шт.
