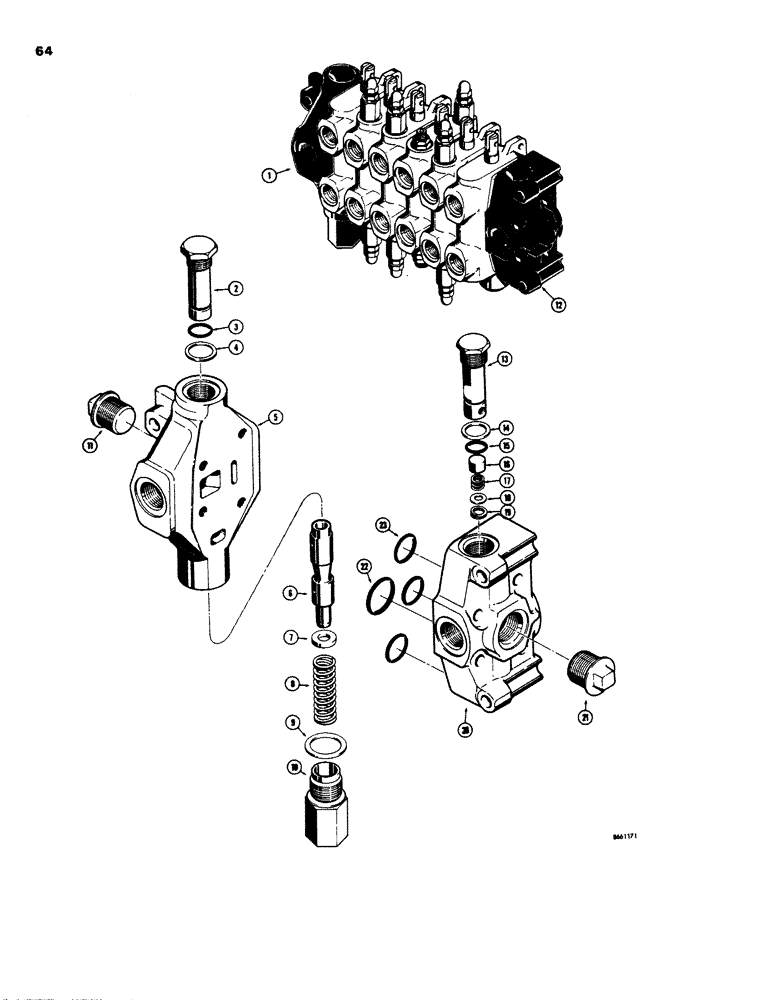

Запчасти Case 26C (064) - D39047 BACKHOE CONTROL VALVE, D37148 BACKHOE OUTLET SECTION, D37349 BACKHOE INLET SECTION

1

D37146

KNIFE SECTION

OUTLET SECTION - backhoe control valve, D37148 backhoe outlet section, Includes: Ref. 2 - 11

1шт.

D36806

PLUG

- outlet section, D37148 backhoe, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - outlet section, D37148 backhoe

1шт.

3

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plug, D37148 backhoe outlet section

1шт.

4

D30681

GASKET

- plug, D37148 backhoe outlet section

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - outlet section, D37148 backhoe

1шт.

6

D36599

SPOOL - regeneration, D37148 backhoe outlet section

1шт.

7

D36807

SPACER

- spool, D37148 backhoe outlet section

1шт.

8

D40815

VALVE SPRING

SPRING - spool, D37148 backhoe outlet section

1шт.

9

D36808

GASKET

- cap, D37148 backhoe outlet section

1шт.

10

D36805

CAP - outlet section, D37148 backhoe

1шт.

11

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT, D37148 backhoe outlet section

1шт.

12

D37349

KNIFE SECTION

INLET SECTION - backhoe control valve, D37349 backhoe inlet section, Includes: Ref. 13 - 23

1шт.

D31416

LOCK VALVE

VALVE ASSEMBLY - check, D37349 backhoe inlet section, Includes: Ref. 13 - 19

1шт.

13

D31417

CARTRIDGE

- check valve, D37349 backhoe inlet section

1шт.

14

D30681

GASKET

- cartridge, D37349 backhoe inlet section

1шт.

15

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- cartridge, D37349 backhoe inlet section

1шт.

16

D31418

VALVE POPPET

POPPET - check valve, D37349 backhoe inlet section

1шт.

17

D31419

SPRING

- check valve, D37349 backhoe inlet section

1шт.

18

D31420

RING

RETAINER - spring, D37349 backhoe inlet section

1шт.

19

D26858

RING, SNAP

RING - spirol, D37349 backhoe inlet section

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - inlet section, D37349 backhoe

1шт.

21

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT, D37349 backhoe inlet section

1шт.

22

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- large, D37349 backhoe inlet section

1шт.

23

D26819

O-RING,1.299" ID x 1.505" OD

- small, D37349 backhoe inlet section

3шт.
