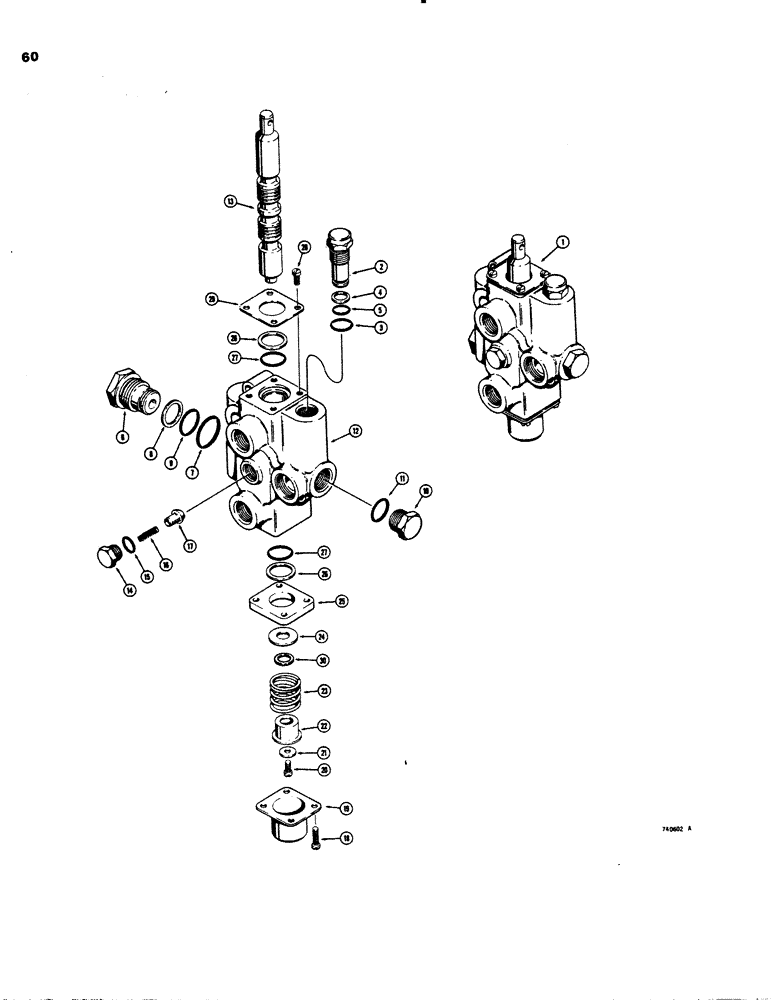

Запчасти Case 26C (060) - D65588 EXTENDABLE DIPPER CONTROL VALVE

1

D65588

VALVE

ASSEMBLY - extendable dipper control (Cross No. BA11AD2EF1), Includes: Ref. 2 - 30

1шт.

2

D54593

PLUG

- relief

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer, large

1шт.

4

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

5

A65918

O-RING,0.551" ID x 0.691" OD

- inner, small

1шт.

6

D54844

PLUG

SLEEVE - power beyond

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- sleeve, outer, large

1шт.

8

D54800

O-RING

RING - backup

1шт.

9

D56341

O-RING,-022, 70 Duro, .989" ID x .070" Thk

- sleeve, inner, small

1шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

If used Hex Hd, 1 1/16"-12 ORB

1шт.

10

218-5159

PLUG,1-3/16" - 12 ORB

- hex, 1-3/16" - 12 NF, if used

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

14

D54588

PLUG

- load check

1шт.

16

D54587

VALVE SPRING

SPRING - load check

1шт.

17

D54589

VALVE

PLUNGER - load check

1шт.

18

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

RHMS - 1/4" - 20 NC x 3/4"

4шт.

19

D54582

CYLINDER END CAP

CAP - spool end

1шт.

20

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

1шт.

21

195-102

WASHER,1/4"

- plain, Zinc plated 1/4"

1шт.

22

D54581

COLLAR CLAMP

COLLAR - spring retaining

1шт.

23

D66249

SPRING

- centering, spool

1шт.

24

195-2200

WASHER

- plain

1шт.

25

D54583

SPACER

- spool cap

1шт.

26

D54585

WASHER

- special, seal retaining

2шт.

27

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - spool

2шт.

28

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

4шт.

29

D63361

PLATE - retaining, seal

1шт.

30

D66250

SHIM - centering spring, if used

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
