Артикул
Название
Примечание
Количество
1

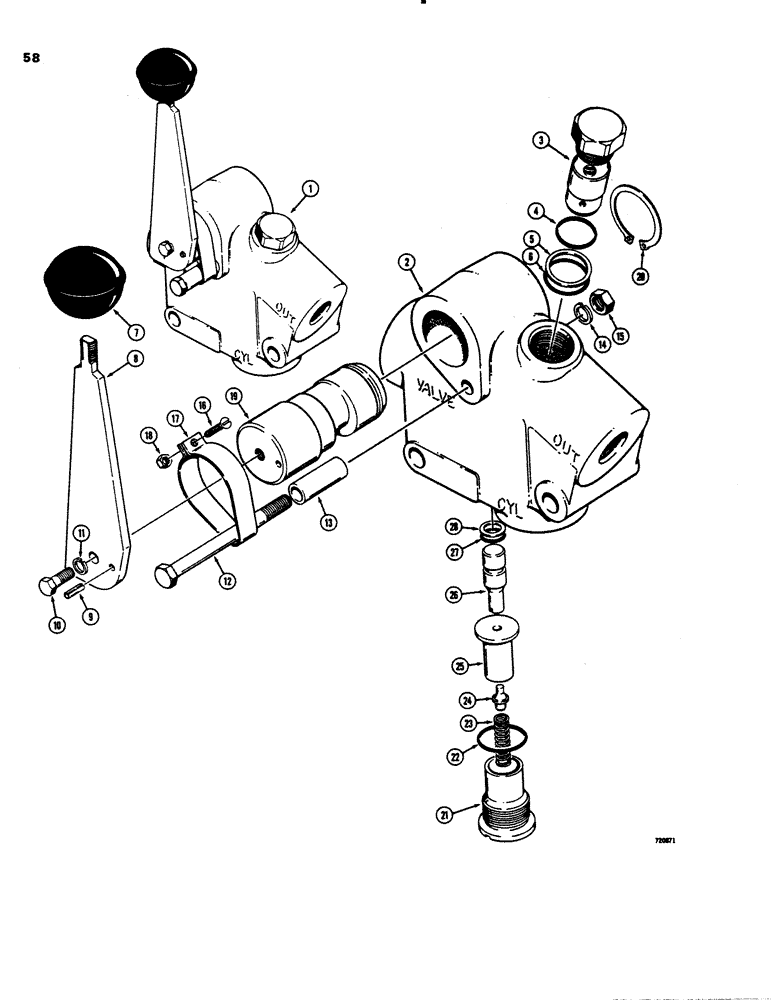

D56102
VALVE
- boom lock (Cessna No. 39013 - CAA), Includes: Ref. 2 - 28
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
3
D56470
VALVE
ASSEMBLY - relief, Includes: Ref. 4
1шт.
4
F9857
O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro
1шт.
5
D56469
BACK-UP RING
- backup
1шт.
6
A7464
O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro
- valve, outer
1шт.
7
D56472
KNOB
- control, handle
1шт.
8
D56458
HANDLE
- control
1шт.
9
D56881
PIN
- dowel, handle
1шт.
10
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
11
92-5
LOCK WASHER,5/16"
1шт.
12
13-558
BOLT,Hex, 5/16" - 18 x 3-5/8", Gr 5
HHCS - 5/16" - 18 NC x 3-5/8"
1шт.
13
D56460
BUSHING
- spacer
1шт.
14
92-5
LOCK WASHER,5/16"
1шт.
15
25-145
JAM NUT,Jam, 5/16"-18, G5
- hex, lock, 5/16" - 18 NC
1шт.
16
182-48
SCREW,Sl Pan Hd, #6 - 32 x 3/4"
RHMS - No. 6 - 32 NC x 3/4"
1шт.
17
D56467
CLAMP
- shaft retaining
1шт.
19
D56465
SHAFT
- lock control
1шт.
20
F62020
SNAP RING,#125, Ext
Ring, Snap, , shaft #125, Ext
1шт.
21
D56461
PLUG
- plunger retainer
1шт.
22
A35104
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
1шт.
23
D56462
SPRING
- poppet
1шт.
24
D56464
PLUNGER
POPPET - valve
1шт.
25
D56463
PLUNGER
SEAT - poppet
1шт.
26
D56466
PLUNGER
- valve
1шт.
27
A30825
O-RING,0.364" ID x 0.504" OD x 0.07"
1шт.
28
L31330
BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk
- backup, seal
1шт.
Выбрано товаров: 28
