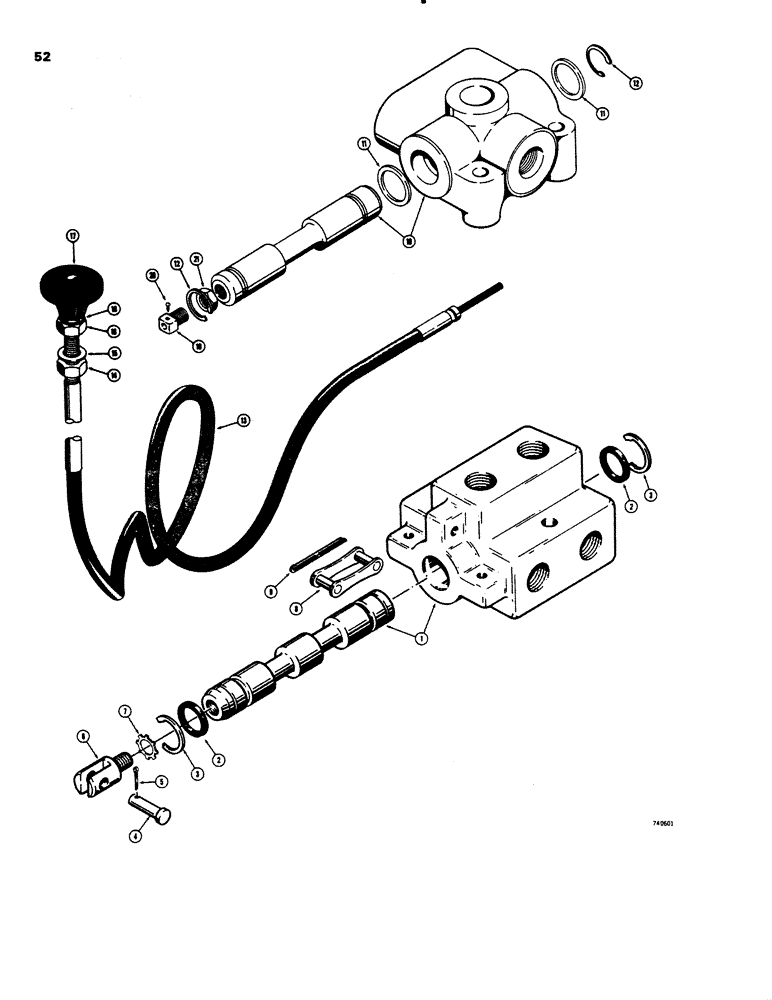

Запчасти Case 26C (052) - D45399 SELECTOR VALVE, L55038 SELECTOR VALVE

D45399

LOCK VALVE

VALVE - selector, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set

1шт.

2

D23691

O-RING

SEAL - quad ring, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

PIN - clevis

1шт.

5

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

6

D23694

ADAPTER

YOKE - control rod

1шт.

7

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

8

D23696

DRAG LINK

LINK - valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

L55038

VALVE

- selector, L55038 selector valve, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - selector valve L55038

1шт.

11

R24866

RING

SEAL - quad ring, spool, L55038 selector valve

2шт.

12

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool, L55038 selector valve #100, Ext, Crescent

2шт.

L55748

CABLE

ASSEMBLY - selector valve L55038, Includes: Ref. 13 - 18

1шт.

13

NSS

NOT SOLD SEPARAT

CABLE - selector valve L55038

1шт.

14

87016560

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8" - 24 NF, L55038 selector valve

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , L55038 selector valve Int Tooth, 3/8"

1шт.

16

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, 3/8" - 24 NF, L55038 Selector valve

1шт.

17

L35895

KNOB

- diverter valve, L55038 selector valve

1шт.

18

129-141

JAM NUT,Jam, 1/4"-20, G5

L55038 selector valve Jam, 1/4"-20, G5

1шт.

19

L55199

SCREW,3/8" - 16 x 1"

- set, 3/8" - 16 NC x 1", L55038 selector valve

1шт.

20

169-73

SCREW,Fil Hd, #8 - 32 x 1/4"

- fillister head, L55038 selector valve

1шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, lock, 3/8", L55038 selector valve

1шт.
