Запчасти Case 26C (050) - D52800 HYDRAULIC COUPLING (FEMALE), MODEL 26C BACKHOE, D52694 HYDRAULIC COUPLING (STRAIGHT MALE)

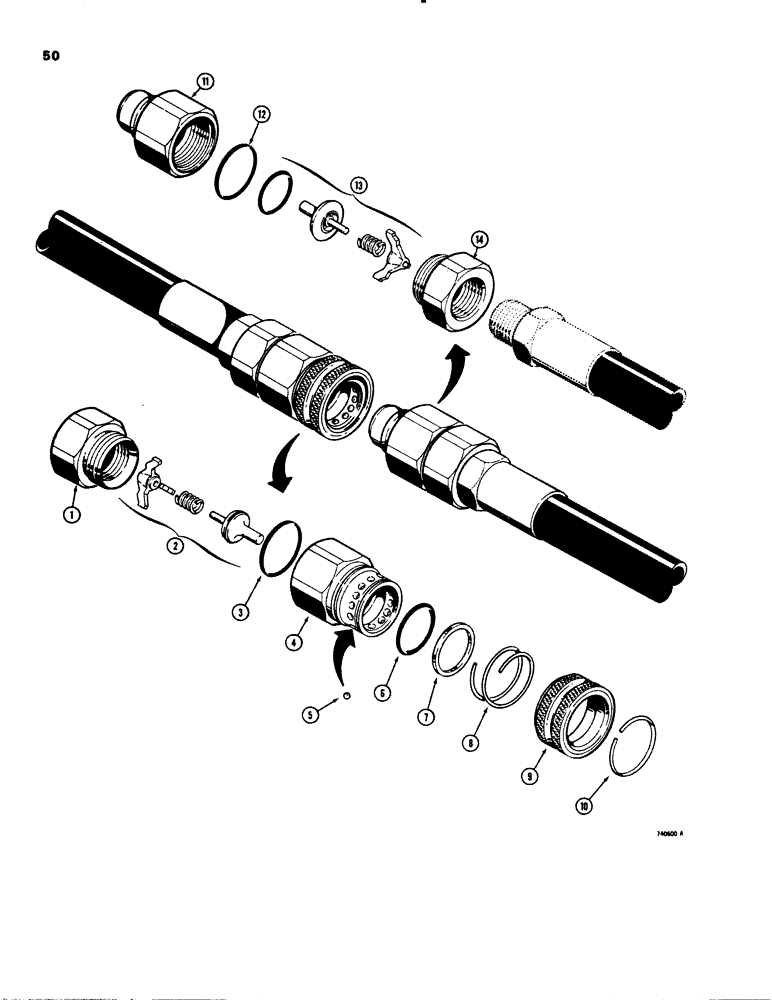

Схема запчастей Case 26C - (050) - D52800 HYDRAULIC COUPLING (FEMALE), MODEL 26C BACKHOE, D52694 HYDRAULIC COUPLING (STRAIGHT MALE)

Артикул

Название

Примечание

Количество

D52800

COUPLING, QUICK, FEM

COUPLING - hydraulic, female, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

- end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - coupling body

1шт.

4

D53916

BODY

- coupling, straight end

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- coupling body, internal

1шт.

7

D54276

RING

- backup

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining

1шт.

D52694

QUICK MALE COUPLING

COUPLING - hydraulic, straight male, Includes: Ref. 11 - 14

1шт.

11

D31971

BODY

- coupling, straight male, D52694 hydraulic coupling (straight male)

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - coupling body, D52694 hydraulic coupling (straight male)

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, D52694 hydraulic coupling (straight male)

1шт.

14

D31975

FITTING

- end, coupling, D52694 hydraulic coupling (straight male)

1шт.

Выбрано товаров: 16
