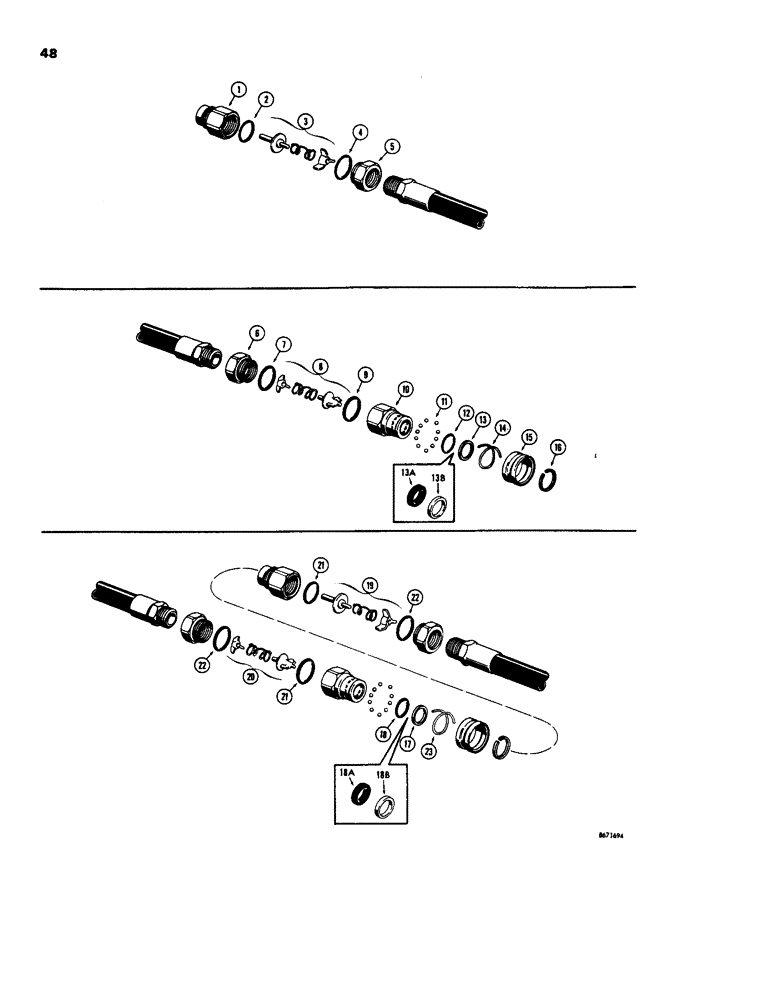

Запчасти Case 26C (048) - D31617 HYDRLC COUPLING, MALE, D31618 HYDRLC COUPLING , FEMALE, D31456 SERVICE KIT FOR HYDRLC COUPLNG

D31617

COUPLING, BREAK AWAY

COUPLING - male, order D52694, see Figure 050, D31617 hydraulic coupling (male), Includes: Ref. 1 - 5

1шт.

1

D31971

BODY

- male coupling, D31617 hydraulic coupling (male)

1шт.

2

D31984

SEAL

O-RING - valve, D31617 hydraulic coupling (male)

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling, D31617 hdyraulic coupling (male), Includes: Ref. 6 - 16

1шт.

3

D35658

VALVE

ASSEMBLY - male coupling, D31617 hydraulic coupling (male), Includes: Ref. 6 - 16

1шт.

4

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31617 hydraulic coupling (male)

1шт.

5

D31975

FITTING

- end, D31617 hydraulic coupling (male)

1шт.

D31618

COUPLING, BREAK AWAY

COUPLING - female, order D52800, see Figure 050, D31618 hydraullic coupling(female)

1шт.

6

D31975

FITTING

- end, D31618 hydraulic coupling (female)

1шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31618 hydraulic coupling (female)

1шт.

8

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31618 hydraulic coupling (female)

1шт.

9

D31984

SEAL

O-RING - valve, D31618 hydraulic coupling (female)

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - female coupling, D31618 hydraulic coupling (female)

1шт.

11

D31982

KIT

BALL KIT - includes 10 balls, D31618 hydraulic coupling (female)

1шт.

12

D31983

O-RING

- internal, when stock is exhausted, order D42469 kit for service., D31618 hydraulic coupling (female)

1шт.

D42469

SEAL

KIT - seal, D31618 hydraulic coupling (female), Includes: Ref. 13A and 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

SEAL - double O-ring, internal, D31618 hydraulic coupling (female)

1шт.

13b

NSS

NOT SOLD SEPARAT

RING - backup, D31618 hydraulic coupling (female)

1шт.

14

D31979

VALVE SPRING

SPRING - sleeve, D31618 hydraulic coupling (female)

1шт.

15

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, D31618 hydraulic coupling (female)

1шт.

16

D31981

RING

- retaining, D31618 hydraulic coupling (female)

1шт.

D31456

KIT

- service, D31456 service kit for hydraulic couplings, Includes: Ref. 17 - 23

1шт.

17

D31978

RING

- backup, when stock is exhausted, order D42469 kit for service, D31456 service kit fpr hydraulic couplings

1шт.

18

D31983

O-RING

- internal, when stock is exhausted, order D42469 kit for service D31456 service kit for hydraulic couplings

1шт.

D42469

SEAL

KIT - seal, D31456 service kit for hydraulic couplings, Includes: Ref. 18A and 18B

1шт.

18a

NSS

NOT SOLD SEPARAT

SEAL - double O-ring, internal, D31456 service kit for hydraulic couplings

1шт.

18b

NSS

NOT SOLD SEPARAT

RING - backup, D31456 service kit for hydraulic couplings

1шт.

19

D35658

VALVE

ASSEMBLY - male coupling, D31456 service kit for hydraulic couplings

1шт.

20

D35659

LOCK VALVE

VALVE ASSEMBLY - female coupling, D31456 service kit for hydraulic couplings

1шт.

21

D31984

SEAL

O-RING - valve, D31456 service kit for hydraulic couplings

2шт.

22

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- fitting, D31456 service kit for hydraulic couplings

2шт.

23

D31979

VALVE SPRING

SPRING - sleeve, D31456 service kit for hydraulic couplings

1шт.
