Запчасти Case 26C (046) - BOOM LOCK HYDRAULIC CIRCUIT, BACKHOE SN. 5305201 AND AFTER

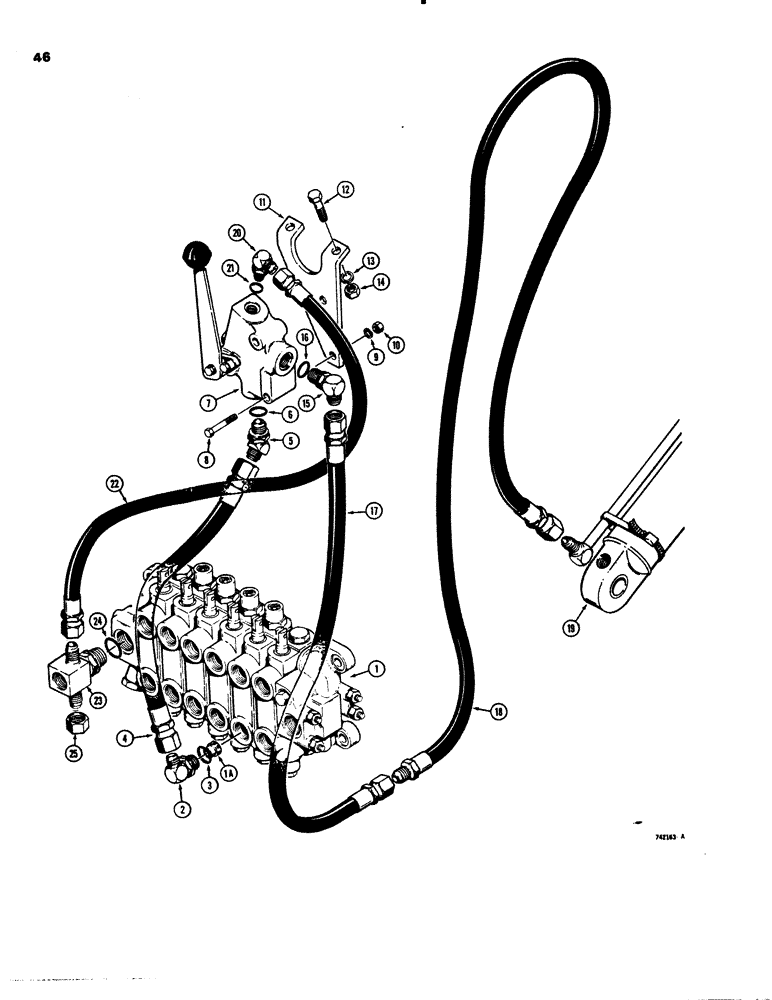

Схема запчастей Case 26C - (046) - BOOM LOCK HYDRAULIC CIRCUIT, BACKHOE SN. 5305201 AND AFTER

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 074

1шт.

1a

D54236

VALVE, CHECK

RESTRICTOR - boom drop, lower valve port

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Adjustable, Includes: Ref. 3 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

L18776

HOSE

- backhoe valve to lockout valve, 22" (559 mm) long

1шт.

5

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - 45 degree, adjustable, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

D56102

VALVE

- lock, parts list Figure 058

1шт.

8

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

11

D58824

PLATE - valve mounting

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 16 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

D45358

HOSE ASSY.

HOSE - lock valve to boom cylinder, 39" (991 mm) long

1шт.

18

D38124

HOSE

- boom cylinder rod end, 57" (1448 mm) long

1шт.

19

REF

INSTRUCTION

CYLINDER - boom and related parts, see Figure 032

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - 90 degree, adjustable, Includes: Ref. 21

1шт.

22

D58825

HOSE

- valve to backhoe valve, 32" (813 mm) long

1шт.

23

D57736

FITTING - 4-way, special, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

218-755

CAP,37 Degree, 3/4"-16

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 26
