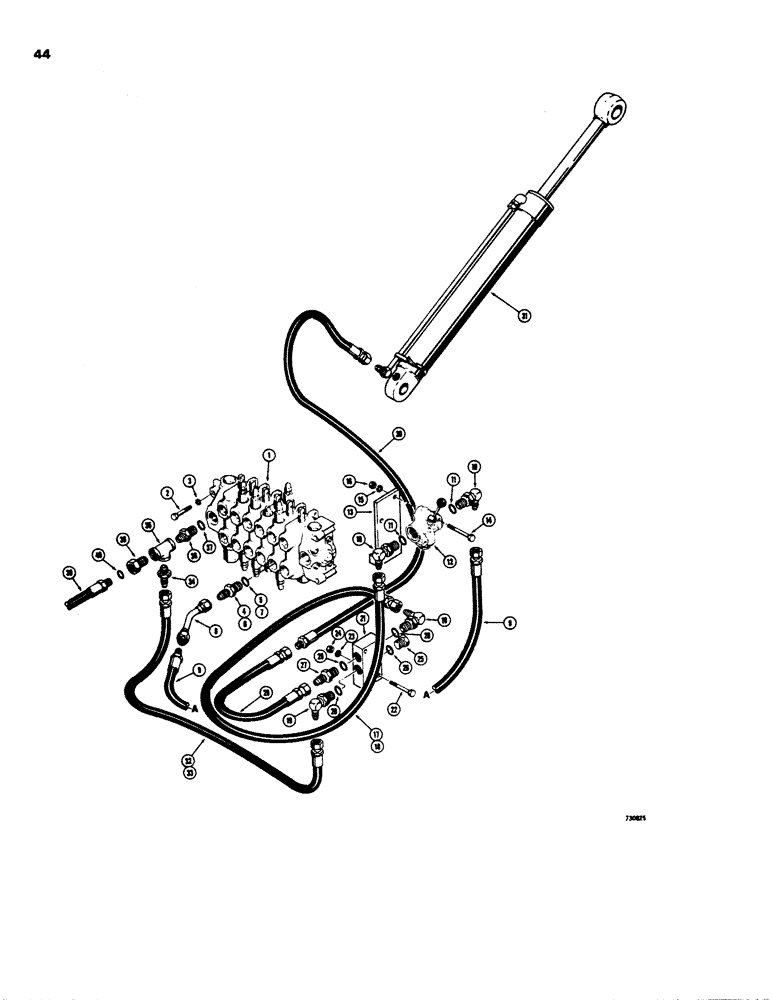

Запчасти Case 26C (044) - 3900 BOOM LOCK HYDRAULIC CIRCUIT, BEFORE BACKHOE SN. 5305201

1

D39047

VALVE

- backhoe control, before backhoe SN 5220152, see parts list Figure 062

1шт.

1

REF

INSTRUCTION

VALVE - backhoe control, backhoe SN 5220152 and after, not shown, see Figure 024 or 026 for mounting parts and Figure 074 for proper valve

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4", before SN 5220152

3шт.

3

92-6

LOCK WASHER,3/8"

before S/N 5220152 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, before SN 5220152, Incl. Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, backhoe SN 5220152 and after, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

8

D49934

TUBE - backhoe control valve to lock valve, boom section lower port

1шт.

9

D49939

HOSE

- backhoe control valve to lock valve, 29" (737 mm) long

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 11 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

12

REF

INSTRUCTION

VALVE - boom lock, parts list Figure 056

1шт.

13

D50772

BRACKET - mounting, lock, valve, Serial Range: welded-frame

1шт.

14

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

D49937

SLEEVE

HOSE - lock valve to relief valve, 50" (1270 mm) long, before backhoe SN 5220152

1шт.

18

D45358

HOSE ASSY.

HOSE - lock valve to relief valve, 39" (991 mm) long, backhoe SN 5220152 and after

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

male, Incl. Ref. 20 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

21

D46850

VALVE

- relief, parts list Figure 056

1шт.

22

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

25

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Relief valve, Includes: Ref. 26 Hex Hd, 1 1/16"-12 ORB

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

29

CASD50053

HOSE - relief valve to boom cylinder, rod end, 23" (584 mm) long, at relief valve

1шт.

30

D38124

HOSE

- relief valve to boom cylinder, 57" (1448 mm) long, at cylinder

1шт.

31

REF

INSTRUCTION

CYLINDER - boom and related parts, see Figures 028 and 032

1шт.

32

D49938

HOSE

- relief valve to return tee, 34" (864 mm) long, before backhoe SN 5220152

1шт.

33

CASD50053

HOSE - relief valve to return tee, 23" (584 mm) long, backhoe SN 5220152 and after

1шт.

34

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

FITTING - male, straight connector

1шт.

35

221-425

FITTING,3/4" NPT

- 3-way, 3/4" NPT

1шт.

36

218-5017

ADAPTER

FITTING - male, straight connector, Includes: Ref. 37

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

38

218-5427

FITTING - hydraulic, straight adapter

1шт.

39

D37541

HOSE

- return, 43" (1092 mm) long, Includes: Ref. 40

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.
