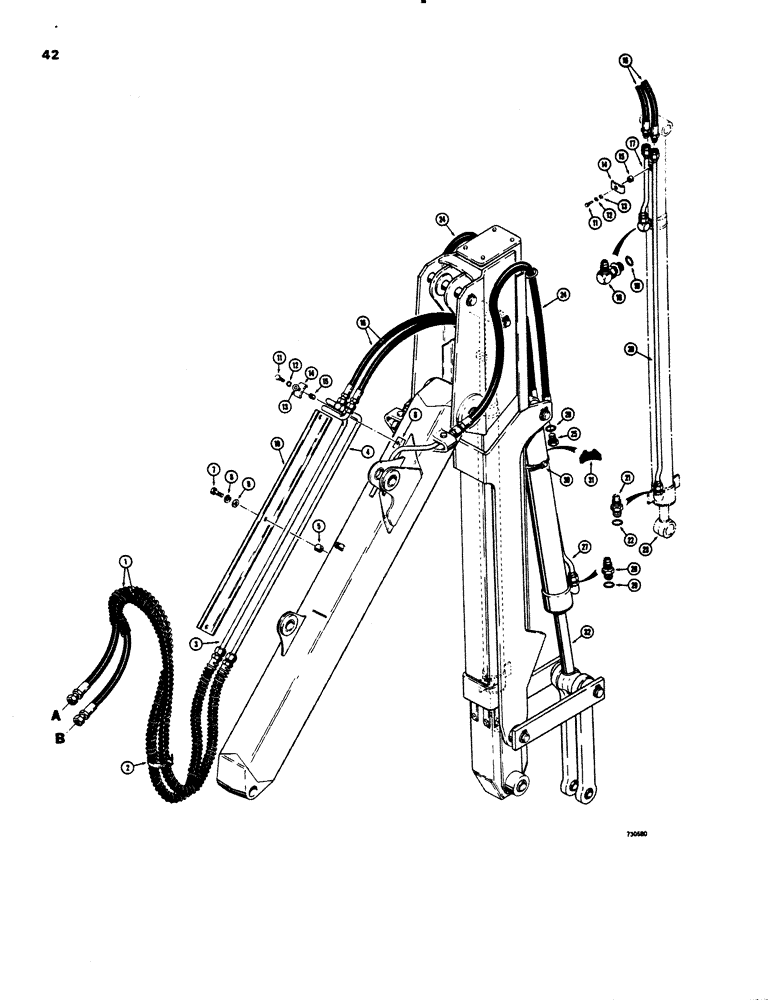

Запчасти Case 26C (042) - EXTENDABLE DIPPER HYDRAULIC CIRCUIT, BACKHOE SN. 5305201 AND AFTER, COUPLINGS TO DIPPER EXTNSN CYLND

1

D44035

HOSE

- to extension cylinder, 64" (1626 mm) long

2шт.

2

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

3

D54350

TUBE - upper, at boom

1шт.

4

D54352

TUBE - lower, at boom

1шт.

5

D42505

BLOCK

- tapped, tube guard, boom side

3шт.

6

D52569

BLOCK

- tapped, tube clamp, boom top

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

10

D54358

GUARD - tube

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

14

D42504

CLAMP

- tube

2шт.

15

D33552

BUSHING

SPACER - tube clamp

2шт.

16

D52565

HOSE

- to extension cylinder, 42" (1067 mm) long

2шт.

17

D52572

TUBE

- extension cylinder, closed end

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree elbow, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

20

D54362

TUBE

- extension cylinder, rod end

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male connector, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

23

REF

INSTRUCTION

CYLINDER - dipper extension, see Figures 120 - 124

1шт.

24

D52566

HOSE

- tube to bucket cylinder, 70" (1778 mm) long

2шт.

25

86512512

PLUG,7/8" - 14 ORB

Cylinder port, Incl. Ref. 26 Hex Hd, 7/8"-14 ORB

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

27

D54360

TUBE

- bucket cylinder, rod end

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

30

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

1шт.

31

D38648

BLOCK

SPACER - clamp

1шт.

32

REF

INSTRUCTION

CYLINDER - bucket, see Figures 114 - 118

1шт.
