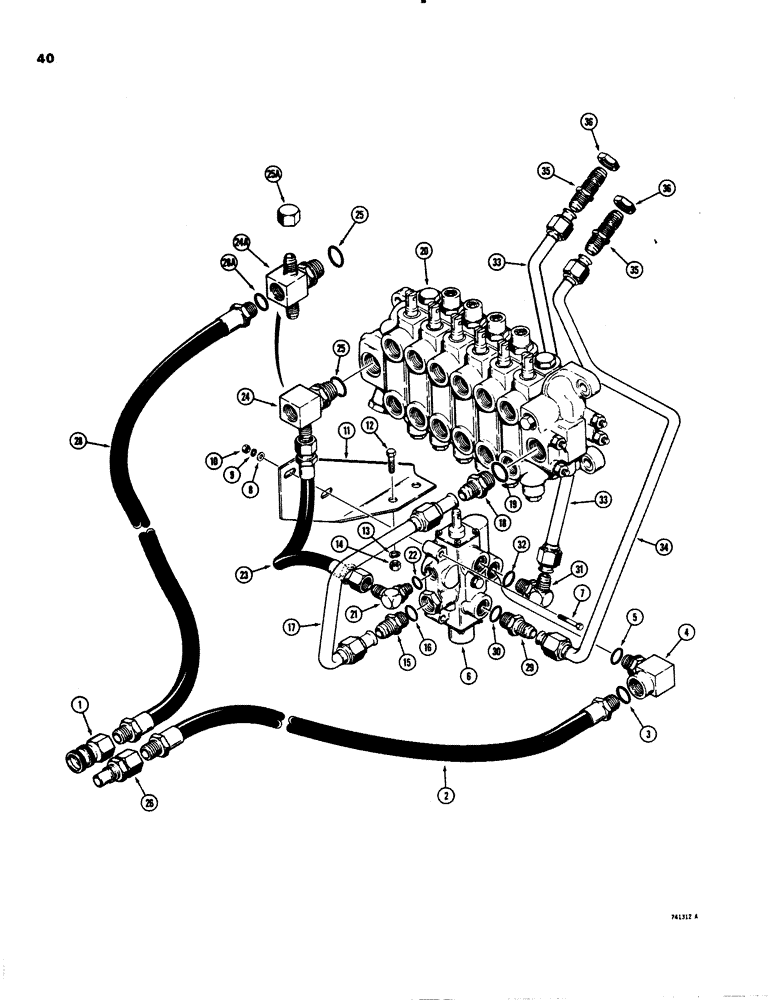

Запчасти Case 26C (040) - EXTENDABLE DIPPER HYDRAULIC CIRCUIT, BACKHOE SN. 5305201 AND AFTER, BACKHOE VALVE TO COUPLINGS

1

D52800

COUPLING, QUICK, FEM

COUPLING - disconnect, female, parts list Figure 050

1шт.

2

D37540

HOSE

- to valve, 83" (2108 mm) long, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

4

D57233

FITTING - special, 90 degree, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

6

D65588

VALVE

ASSEMBLY - extendable dipper, parts list Figure 060

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2", Valve to mounting bracket

2шт.

8

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

11

D57110

BRACKET - valve mounting

1шт.

12

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", bracket to frame

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, male, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

17

D57075

TUBE - hydraulic

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - straight, male connector, Incl. Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

20

REF

INSTRUCTION

VALVE - backhoe control, parts list Figure 074

1шт.

21

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

23

36210

HOSE

- return, 21-1/2" (546 mm) long

1шт.

24

D54377

FITTING - adjustable, special extendable dipper models without boom lock

1шт.

24a

D57736

FITTING - adjustable, 4-way, special, extendable dipper models with boom lock, Includes: Ref. 25

1шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- D54377 or D57736 fitting

1шт.

25a

218-755

CAP,37 Degree, 3/4"-16

Hydraulic, used with D57736 fitting if required 37º, 3/4"-16

1шт.

26

D52694

QUICK MALE COUPLING

COUPLING - disconnect, male, parts list Figure 050

1шт.

28

D37541

HOSE

- to tractor, 43" (1092 mm) long, Includes: Ref. 28A

1шт.

28a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- hose

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male connector, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree, Incl. Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

33

D60618

TUBE - valve to cylinder, upper

1шт.

34

D60620

TUBE - valve to cylinder, lower

1шт.

35

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

2шт.

36

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.
