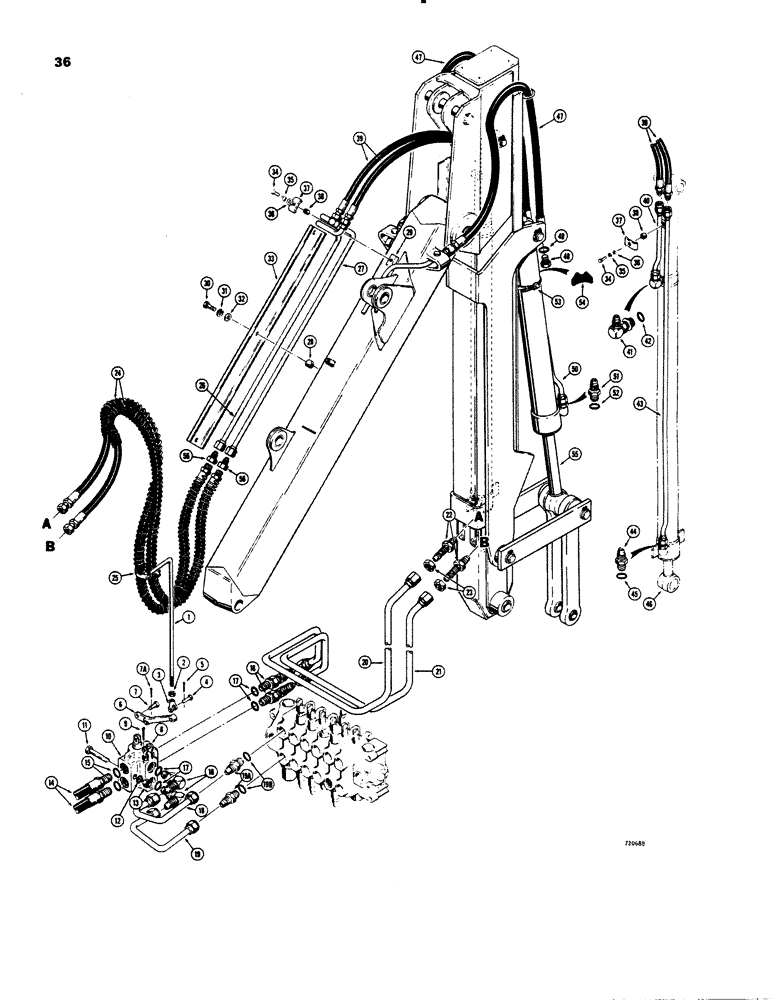

Запчасти Case 26C (036) - EXTENDABLE DIPPER HYDRAULIC CIRCUIT, BEFORE BACKHOE SN. 5305201

1

D47939

CONTROL ROD - selector valve

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

6

D47938

LEVER

- selector valve

1шт.

7

D23693

AXLE PIN

PIN - clevis

1шт.

7a

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

8

D23696

DRAG LINK

LINK - selector valve

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

10

D45399

LOCK VALVE

VALVE - selector, parts list Figure 52 includes Refs. 7 - 9

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

14

D54359

FLEXIBLE HOSE

HOSE - selector valve to stabilizer cylinder, 28" (711 mm) long, Includes: Ref. 15

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- hose

1шт.

16

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - adjustable, 90\(de elbow, Includes: Ref. 17

4шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

18

D54548

TUBE - selector valve to backhoe valve, upper port, before backhoe SN 5220152

1шт.

18

D39081

HOSE ASSY.

HOSE - diverter valve to backhoe valve, upper port, backhoe SN 5220152 and after, not shown, 19-1/2" (495 mm) long

1шт.

19

D54550

TUBE - diverter valve to backhoe valve, lower port, before backhoe Sn. 5220152

1шт.

19

D39081

HOSE ASSY.

HOSE - diverter valve to backhoe valve, lower port, backhoe Sn. 5220152 and after, not shown, 19-1/2" (495 mm) long

1шт.

19a

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, before Sn. 5220152, Includes: Ref. 19B

2шт.

19b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

19a

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Sn. 5220152 and after, Includes: Ref. 19B

2шт.

19b

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

20

D47968

TUBE - diverter valve to extension cylinder, upper, before backhoe Sn. 5220152

1шт.

20

D57006

TUBE - diverter valve to extension cylinder, upper, backhoe Sn. 5220152 and after

1шт.

21

D47970

TUBE - diverter valve to extension cylinder, lower, before backhoe Sn. 5220152

1шт.

21

D57004

TUBE - diverter valve to extension cylinder, lower, backhoe Sn. 5220152 and after

1шт.

22

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - bulkhead

2шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

24

D47972

HOSE - to extension cylinder, 75" (1905 mm) long

2шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

26

D54350

TUBE - upper, at boom

1шт.

27

D54352

TUBE - lower, at boom

1шт.

28

D42505

BLOCK

- tapped, tube guard, boom side

3шт.

29

D52569

BLOCK

- tapped, tube clamp, boom top

1шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

REFER TO ILLUSTRATION PAGE,REFER TO REF#29.THE TUBE SHOWN TO THE LEFT OF THAT ITEM IS PART D54322.

1шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

195-25

WASHER,3/8"

- flat, 3/8"

3шт.

33

D54358

GUARD - tube

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

37

D42504

CLAMP

- tube

2шт.

38

D33552

BUSHING

SPACER - tube clamp

2шт.

39

D52565

HOSE

- to extension cylinder, 42" (1067 mm) long

2шт.

40

D52572

TUBE

- extension cylinder, closed end

1шт.

41

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree elbow, Incl. Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

43

D54362

TUBE

- extension cylinder, rod end

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, male connector, Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

46

REF

INSTRUCTION

CYLINDER - dipper extension, see Figures 120 - 124

1шт.

47

D52566

HOSE

- to bucket cylinder, 70" (1778 mm) long

2шт.

48

86512512

PLUG,7/8" - 14 ORB

Cylinder port, Incl. Ref. 49 Hex Hd, 7/8"-14 ORB

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

50

D54360

TUBE

- bucket cylinder, rod end

1шт.

51

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - straight, male connector, Includes: Ref. 52

2шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

53

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

1шт.

54

D38648

BLOCK

SPACER - clamp

1шт.

55

REF

INSTRUCTION

CYLINDER - bucket, see Figures 114 - 118

1шт.

56

218-725

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

FITTING - straight reducer

2шт.
