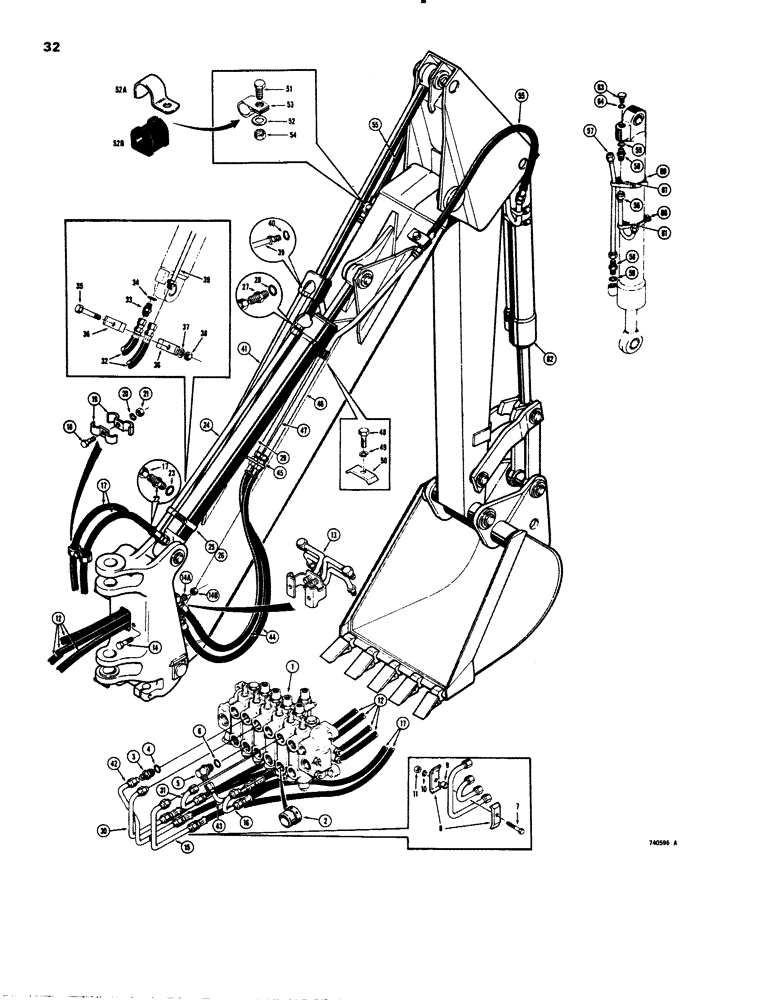

Запчасти Case 26C (032) - BOOM, DIPPER & BUCKET HYDRAULIC CIRCUIT, BACKHOE SN. 5220152 & AFT, BOOM CYL HYD CIRCT, DIPR CYL HYD

1

REF

INSTRUCTION

VALVE - backhoe control, see Figure 074 for proper valve, mounting parts on Figure 024

1шт.

2

D54236

VALVE, CHECK

RESTRICTOR - boom drop, lower boom section port

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, both boom section ports, both dipper section ports and upper bucket section port, Incl. Ref. 4

5шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - adjustable, 90\(de elbow, lower bucket section port, Includes: Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

8

D40236

CLAMP

- tube

6шт.

9

D36040

BUSHING

SPACER - tube clamp

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8" - 16 NC

3шт.

12

D42601

HOSE ASSY.

HOSE - crowd and bucket section ports to manifold, 18-1/2"

1шт.

(470 mm) long

4шт.

13

D44652

MANIFOLD

- hydraulic routing

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14a

92-6

LOCK WASHER,3/8"

2шт.

14b

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

15

D54224

TUBE - boom section, upper port, boom cylinder hydraulic circuit

1шт.

16

D54226

TUBE

- boom section, lower port, boom cylinder hydraulic circuit

1шт.

17

D38124

HOSE

- boom section ports to boom cylinder, 57" (1448 mm) long, boom cylinder hydraulic circuit

2шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Boom cylinder hydraulic circuit

1шт.

19

D42833

CLAMP

- hose, boom cylinder hydraulic circuit

2шт.

20

92-7

LOCK WASHER,7/16"

boom cylinder hydraulic circuit 7/16"

1шт.

21

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , Boom cylinder hydraulic circuit 7/16"-14, GB

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight connector, boom cylinder hydraulic circuit, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, boom cylinder hydraulic circuit

1шт.

24

D43631

TUBE

- boom cylinder, rod end, boom cylinder hydraulic circuit

1шт.

25

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder, boom cylinder hydraulic circuit

1шт.

26

D38648

BLOCK

SPACER - clamp, boom cylinder hydraulic circuit

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight connector, boom cylinder hydraulic circuit, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, boom cylinder hydraulic circuit

1шт.

29

REF

INSTRUCTION

CYLINDER - boom, see Figures 102 through 106 for proper cylinder, boom cylinder hydraulic circuit

1шт.

30

D54224

TUBE - dipper section, upper port, dipper cylinder hydraulic circuit

1шт.

31

D54226

TUBE

- dipper section, lower port, dipper cylinder hydraulic circuit

1шт.

32

D45358

HOSE ASSY.

HOSE - manifold to dipper cylinder, 39" (991 mm) long, dipper cylinde hydraulic circuit

2шт.

33

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight connector, dipper cylinder hydraulic circuit, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, dipper cylindeer hydraulic circuit

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2", Dipper cylinder hydraulic circuit

1шт.

36

D40236

CLAMP

- hose, dipper cylinder hydraulic circuit

2шт.

37

195-25

WASHER,3/8"

- flat, , dipper cylinder hydraulic circuit 3/8"

1шт.

38

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-lock, 3/8" - 16 NC, dipper cylinder hydraulic circuit

1шт.

39

D43637

TUBE

- dipper cylinder, rod end, Includes: Ref. 40

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tube

1шт.

41

REF

INSTRUCTION

CYLINDER - dipper, see pages 109 thru 113 for proper cylinder

1шт.

42

D54220

TUBE

- bucket section, upper port

1шт.

43

D54222

TUBE - bucket section, lower port

1шт.

44

D45359

HOSE

- manifold to bucket cylinder, rod end, 47" (1194 mm) long

2шт.

45

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, 1-1/16" - 12 NF

2шт.

46

D54322

TUBE

- valve to bucket cylinder, R.H.

1шт.

47

D54324

TUBE

- valve to bucket cylinder, L.H.

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

D40236

CLAMP

- tube

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

52

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

52a

D74192

CLAMP

- tube, if used

2шт.

52b

D74182

GROMMET,3/4" ID x 1.46" L

SPACER - tube clamp, used with 52A

2шт.

53

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube, if used

2шт.

54

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC, Includes: Ref. 55

2шт.

55

D39802

TUBE

HOSE - valve to bucket cylinder, 32- 1/2" (826 mm) long

2шт.

For models with extendable dipper see Figure 036 or 042.

1шт.

56

D46679

TUBE

- bucket cylinder, closed end, Includes: Ref. 57

1шт.

57

D40647

TUBE

- bucket cylinder, rod end

1шт.

For models with extendable dipper see Figure 036 or 042.

1шт.

58

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight connector, Includes: Ref. 59

2шт.

59

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

60

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

61

D38648

BLOCK

SPACER - clamp

2шт.

62

REF

INSTRUCTION

CYLINDER - bucket, see Figures 114 - 118 for proper cylinder

1шт.

63

86512512

PLUG,7/8" - 14 ORB

Cylinder port, Incl. Ref. 64 Hex Hd, 7/8"-14 ORB

1шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
