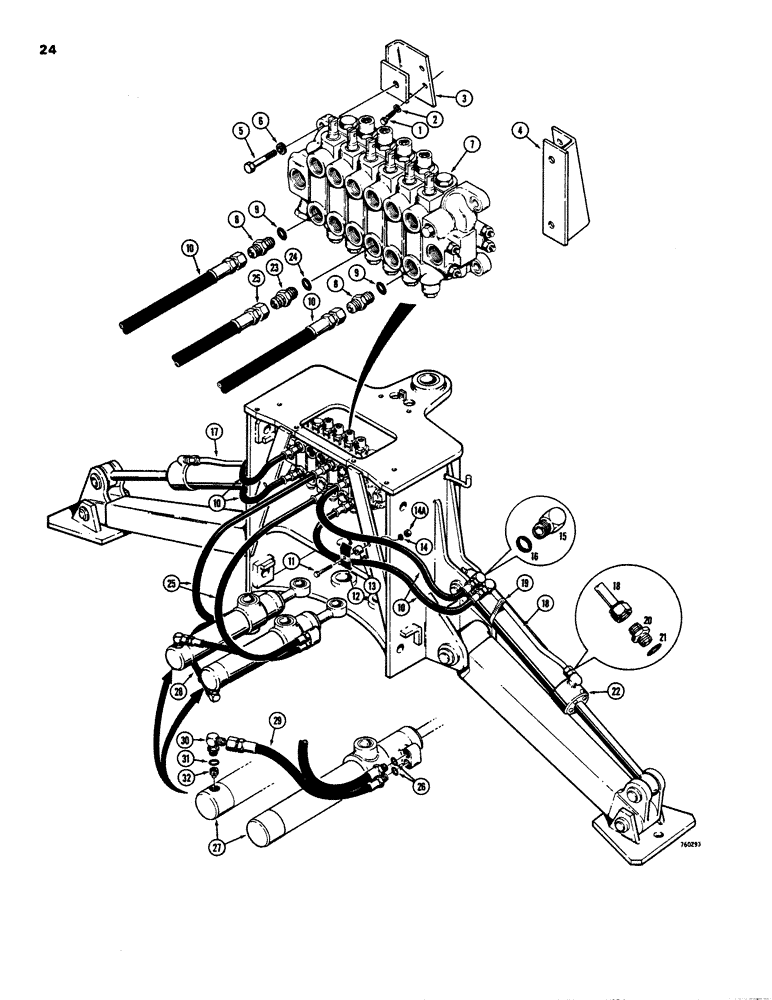

Запчасти Case 26C (024) - SWING & STBLZR CYL HYD,FOR 350/450 CRWLRS BCKHOE SN 5220152 & AFT, STBLZR CIRCUIT, SWING CIRCUIT

1

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to frame Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

D53984

BRACKET - valve mounting, L.H.

1шт.

4

D53987

BRACKET - valve mounting, R.H.

1шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4", bracket to valve

3шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

REF

INSTRUCTION

VALVE - backhoe control, see Figure 074 for proper valve

1шт.

8

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight adapter, stabilizer cylinder hydraulic circuit, Includes: Ref. 9

4шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting, stabilizer cylinder hydraulic circuit

1шт.

10

D50751

HOSE

- to stabilizer cylinders, 33" (838 mm) long, stabilizer cylinder hydraulic circuit

4шт.

11

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Stabilizer cylinder hydraulic circuit Hex, 3/8"-16 x 2 1/4", G5

2шт.

12

D33316

CLAMP

- hose, stabilizer cylinder hydraulic circuit

2шт.

13

D33829

BUSHING

SPACE - clamp, stabilizer cylinder hydraulic circuit

2шт.

14

195-25

WASHER,3/8"

- flat, , stabilizer cylinder hydraulic circuit 3/8"

2шт.

14a

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8" - 16 NC, stabilizer cylinder hydraulic circuit

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - male, 90 degree elbow, stabilizer cylinder hydraulic circuit, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, stabilizer cylinder hydraulic circuit

1шт.

17

D49534

TUBE

- stabilizer cylinder, L.H., stabilizer cylinder hydraulic circuit

1шт.

18

D49535

TUBE

- stabilizer cylinder, R.H., stabilizer cylinder hydraulic circuit

1шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube, stabilizer cylinder hydraulic circuit

2шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - male, straight connector, stabilizer cylinder hydraulic circuit, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting, stabilizer cylinder hydraulic circuit

1шт.

22

REF

INSTRUCTION

CYLINDER - stabilizer, see Figures 088 through 92 for proper cylinder, stabilizer cylinder hydraulic circuit

2шт.

23

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight adapter, swing clinder hydraulic circuit, Includes: Ref. 24

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting, swing cylinder hydraulic circuit

1шт.

25

D37219

HOSE

- to swing cylinders, 30" (762 mm) long, swing cylinder hydraulic circuit, Includes: Ref. 26

2шт.

27

REF

INSTRUCTION

CYLINDER - swing, see Figures 094 - 100 for proper cylinder, swing cylinder hydraulic circuit

2шт.

28

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders, 23-1/2" (597 mm) long, swing cylinder hydraulic circuit, Includes: Ref. 29

2шт.

30

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degree elbow, swing cylinder hydraulic circuit, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose, swing cylinder hydraulic circuit

1шт.

32

D45555

FITTING

RESTRICTOR - flow control, swing cylinder hydraulic circuit

2шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting, swing cylinder hydraulic circuit

1шт.

29

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose, swing cylinder hydraulic circuit

1шт.
