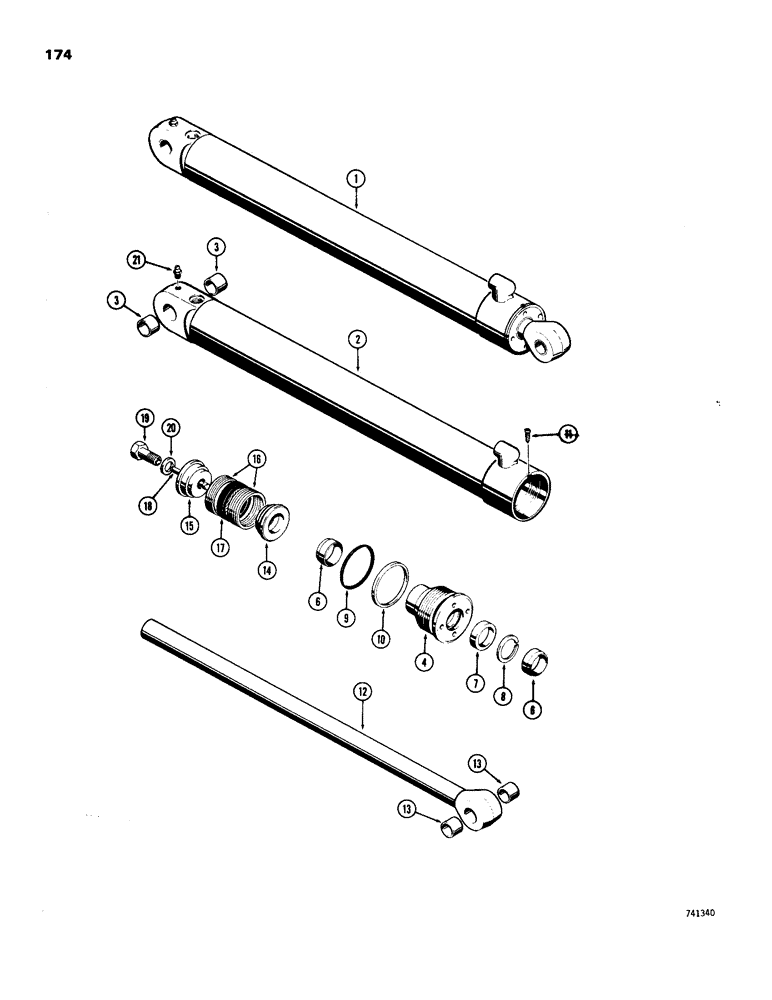

Запчасти Case 26B (174) - D43058 BOOM CYLINDER, GLAND HAS SPLIT OUTER ROD WIPER, NO IDENTIFICATION RING

1

D43058

CYLINDER ASSY. - boom (3-1/2" dia. x 37-7/8" stroke), Inlcudes: Ref. 2 - 21

1шт.

2

D43059

TUBE ASSY. cylinder body, Inlcudes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

D45069

GLAND

- (Order G32743 Gland Assy.)(See Figure 172)

1шт.

5

D42873

GASKET KIT

PACKING KIT - gland, Inlcudes: Ref. 6 - 11

1шт.

6

D27432

SHIM

- piston rod, inner & outer (split type)

2шт.

7

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16")

1шт.

Piston rod (extreme heat or cold)

1шт.

8

D28499

RING

- rod seal back-up

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

10

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D43062

ROD ASSY. - piston (1-3/4" dia.), Inlcudes: Ref. 13

1шт.

13

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- piston rod

2шт.

14

D28369

PISTON

- split (rod end)

1шт.

15

D28367

PISTON

- split (bolt end)

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston

2шт.

17

D47208

RING

- center bearing

1шт.

18

D44561

PIN - cushion relief

1шт.

19

D47533

BOLT - piston & relief pin retaining

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- ret. bolt (1 x 1-7/8 x 3/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod (Extreme heat or cold)

1шт.
