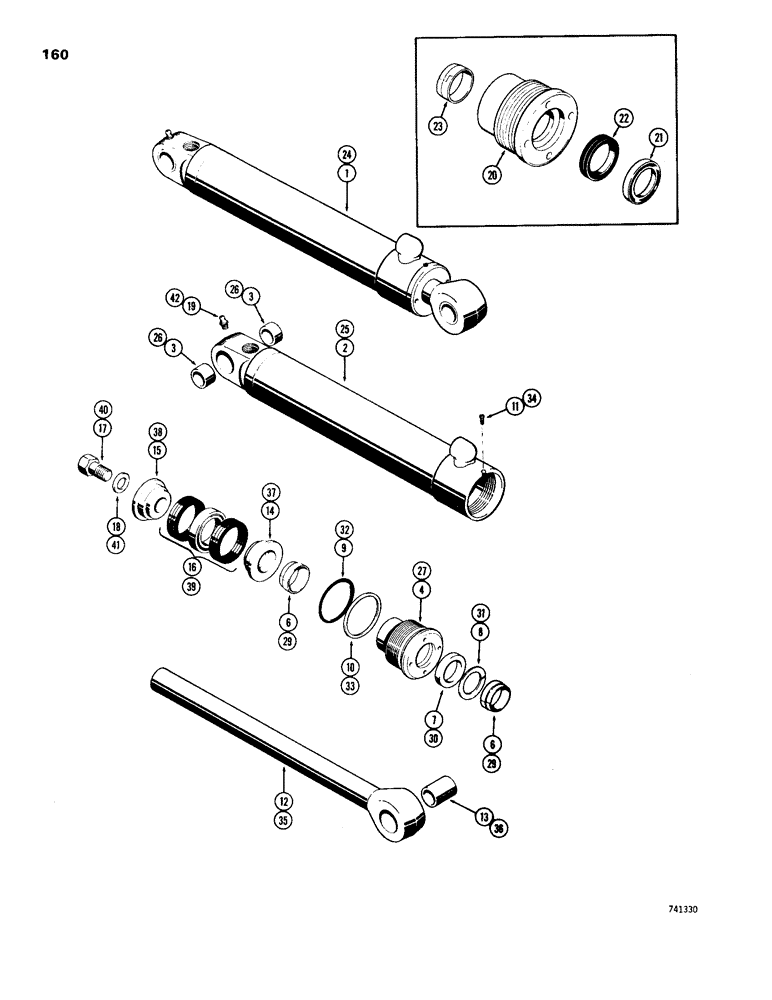

Запчасти Case 26B (160) - D43084 STABILIZER CYLINDER, WITH 1-1/2 INCH DIAMETER PISTON ROD

1

D43084

CYLINDER ASSY. - stabilizer (3" dia. x 16-3/8" stroke), Inlcudes: Ref. 2 - 23

2шт.

2

D43085

CYLINDER

TUBE ASSY. cylinder body, Inlcudes: Ref. 3

1шт.

3

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube

2шт.

4

D45067

GLAND

- has split outer rod wipe, use G32734 gland assembly for service

1шт.

5

D42870

GASKET KIT

PACKING KIT - D45067 gland only, not shown

1шт.

D42870

GASKET KIT

PACKING KIT - gland, Inlcudes: Ref. 6 - 11

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner & outer (split type)

2шт.

7

D36969

CUP

SEAL - piston rod (1-1/2" x 7/16")

1шт.

8

D28498

RING

- piston rod seal back-up

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

10

D28049

RING

- gland "O" ring back-up

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D43088

ROD ASSY. - piston (1-1/2" dia.), Inlcudes: Ref. 13

1шт.

13

D43056

BUSHING

- piston rod

1шт.

14

D28365

PISTON

- split (rod end)

1шт.

15

D28366

PISTON

- split (bolt end)

1шт.

16

G33151

PACKING

- ASSY. piston (Replaces D28374)

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- piston (3/4 x 2-1/2" N.F. hex.)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (3/4 x 1-3/8 x 5/64")

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., str.

1шт.

G32734

GLAND

ASSEMBLY - has solid outer rod wiper, Inlcudes: Ref. 20 - 21 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

GLAND

1шт.

21

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer (Solid)

1шт.

22

D36969

CUP

SEAL - piston rod

1шт.

23

D27706

WIPER SEAL

WIPER - rod, inner (Split)

1шт.

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring (Item 9)

1шт.

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup (Item 10)

1шт.

24

D48032

CYLINDER - stabilizer (3" dia. x 16-3/8" stroke), D48032 stabilizer cylinder with 1-3/1" dia. piston rod, Inlcudes: Ref. 25 - 28

2шт.

25

D43085

CYLINDER

TUBE ASSY. - cylinder body, D480320stabilizer cylinder with 1-3/1" dia. piston rod, Inlcudes: Ref. 26

1шт.

26

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube, D48032 stabilizer cylinder with 1-3/1" dia. piston rod

2шт.

26

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube, D48032 stabilizer cylinder with 1-3/1" dia. piston rod

2шт.

27

D45068

GLAND

- use G32735 gland assembly - parts list page 159, D48032 stabilizer cylinder with 1-3/1" dia. piston rod, Inlcudes: Ref. 28

1шт.

D42872

GLAND

PACKING KIT - gland, D48032 stabilizer cylinder with 1-3/1" dia. piston rod, Inlcudes: Ref. 29 - 34

1шт.

29

D27432

SHIM

- piston rod, inner & outer (split type), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

2шт.

30

D36970

CUP

SEAL - piston rod (1-3/4" x 2-1/4" x 7/16"), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

31

D28499

RING

- piston rod seal back-up, D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

32

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8"), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

33

D28049

RING

- gland "O" ring back-up, D48032 stabilizer clinder with 1-3/1" dia. piston rod

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

35

D48033

ROD ASSY.

- piston (1-3/4" dia.), D48032 stabilizer cylinder with 1-3/1" dia. piston rod, Inlcudes: Ref. 36

1шт.

36

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- piston rod, D48032 stabilizer cylinder with 1-3/1" dia. piston ring

1шт.

37

D28897

PISTON

- split (rod end), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

38

D28896

PISTON

- split (bolt end), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

39

G33151

PACKING

ASSY. - piston (Replaces D28374), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

40

D32861

BOLT

- piston (1 x 2-1/2" N.F. hex.), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

41

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-11/32 x 2-1/2 x 9/64"), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.), D48032 stabilizer cylinder with 1-3/1" dia. piston rod

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod (Extreme heat or cold)

1шт.
