Запчасти Case 26B (132) - TRANS-PAC TRAILER, LIGHTS AND BRAKE CONTROL, D48693 LIGHT ASSEMBLY

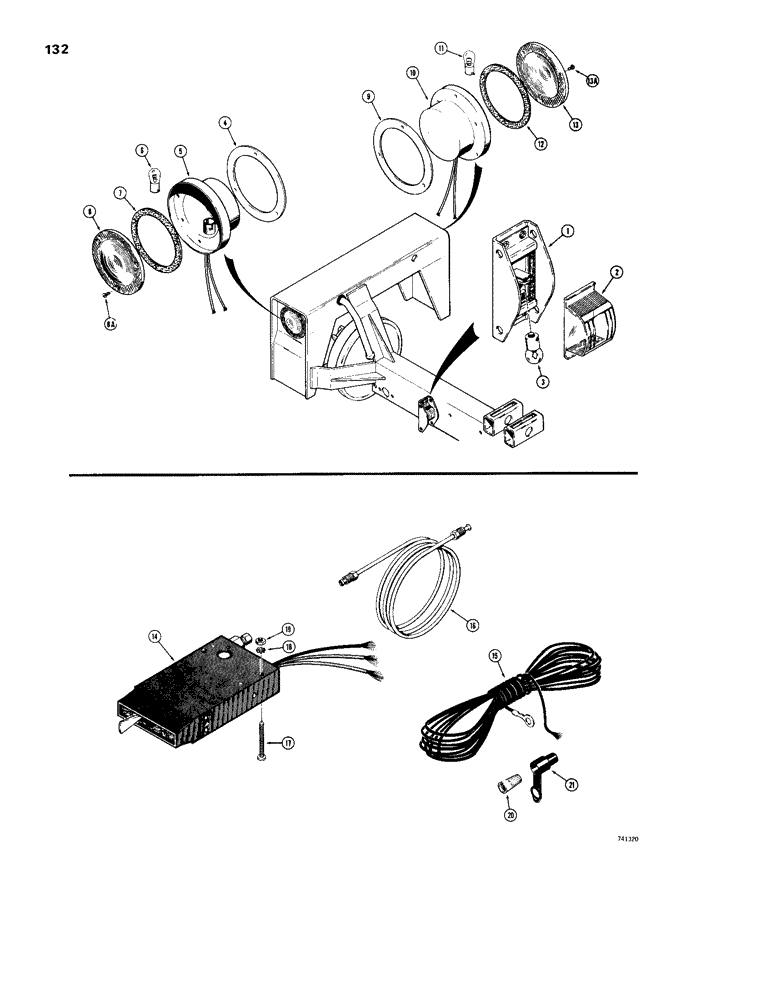

Схема запчастей Case 26B - (132) - TRANS-PAC TRAILER, LIGHTS AND BRAKE CONTROL, D48693 LIGHT ASSEMBLY

Артикул

Название

Примечание

Количество

D48693

LIGHT ASSEMBLY - license plate

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - license plate light

1шт.

2

D48890

LENS - license plate light

1шт.

3

71421

BULB,R5W, 12V, 5W

- license plate light

1шт.

D48689

LIGHT ASSEMBLY - fender, rear (Red), D48689 light assembly

2шт.

4

D48893

PAD - mounting, fender light, D48689 light assembly

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL ASSEMBLY - fender light, D48689 light assembly

1шт.

6

T34857

BULB,C6, #1157, 12.8V

Fender light, D48689 light assembly C6, #1157, 12.8V

1шт.

7

D48894

GASKET - lens, D48689 light assembly

1шт.

8

D48891

LENS - rear fender light (Red), D48689 light asembly

1шт.

8a

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4", D48689 light assembly

3шт.

D48690

LIGHT ASSEMBLY - fender, front (Amber),D48690 light assembly

2шт.

9

D48893

PAD - mounting, fender light, D48690 light assembly

1шт.

10

NSS

NOT SOLD SEPARAT

SHELL ASSEMBLY - fender light, D48690 light assembly

1шт.

11

T34857

BULB,C6, #1157, 12.8V

Fender light, D48690 light assembly C6, #1157, 12.8V

1шт.

12

D48894

GASKET - lens, D48690 light assembly

1шт.

13

D48892

LENS - front fender light (Amber), D48690 light assembly

1шт.

13a

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

RHMS - #8 - 32 NC x 1/4", D48690 light assembly

3шт.

D48694

CONTROL

LER KIT - trans-pac trailer, brake control (towing vehicle)

1шт.

14

NSS

NOT SOLD SEPARAT

CONTROLLER ASSEMBLY - brake control, brake control (towing vehicle)

1шт.

15

33468

CABLE - electrical, 30 ft., brake control (towing vehicle

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE - hydraulic, brake control (towing vehicle)

1шт.

17

182-133

SCREW - machine, slotted pan head (#10 - 24 NC x 1-3/4"), brake control (towing vehicle

2шт.

18

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , Brake control (towing vehicle) Ext Tooth, #10

2шт.

19

129-47

NUT

- hex. (#10 - 24 NC), brake control (towing vehicle)

2шт.

20

D48917

CONNECTOR - electrical, brake control (towing vehicle)

1шт.

21

D48918

CAP - connector, brake control (towing vehicle)

1шт.

Выбрано товаров: 27
