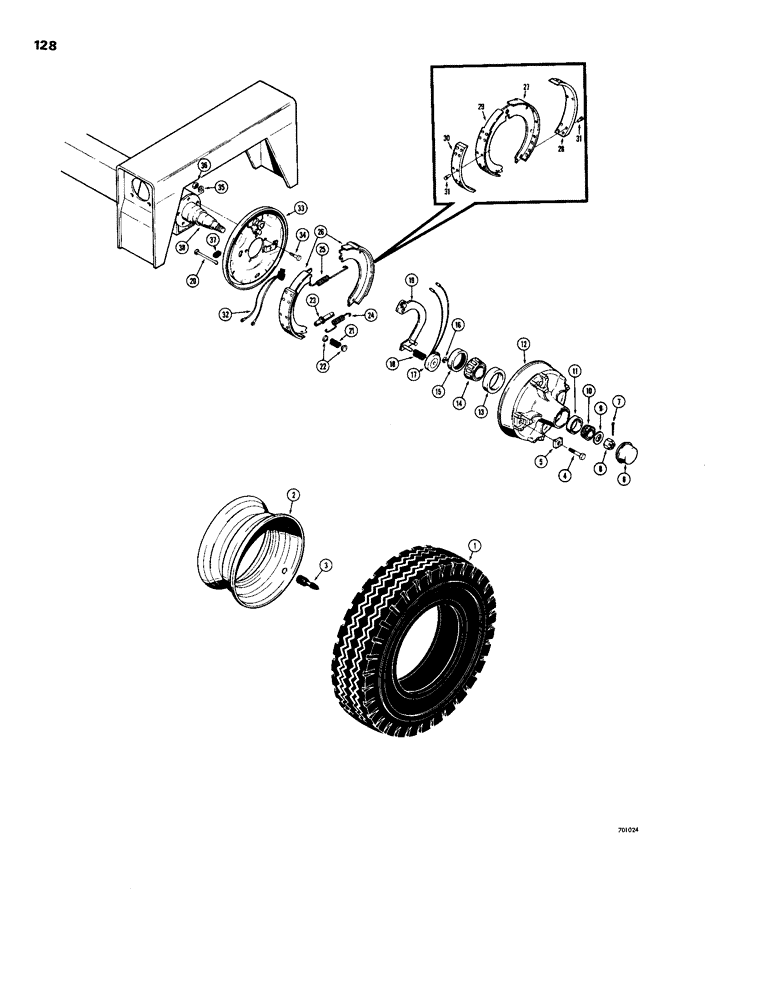

Запчасти Case 26B (128) - TRANS-PAC TRAILER, WHEEL ASSEMBLY AND BRAKES

1

NSS

NOT SOLD SEPARAT

TIRE - trailer, 8.00 x 14.5 - 12 ply

2шт.

2

D48733

RIM - tire, heavy duty

2шт.

3

D48692

VALVE

STEM - valve

2шт.

D48726

AXLE AND FENDER ASSEMBLY - complete

1шт.

4

T35640

WHEEL BOLT

BOLT - wheel retaining

10шт.

5

D48897

CLAMP

- rim

10шт.

6

T23707

CAP

- grease

2шт.

8

B18305

NUT

- spindle

2шт.

9

T31896

WASHER - spindle

2шт.

10

D48896

BEARING

CONE - outer

2шт.

11

D59595

TAPERED BEARING

CUP - outer

2шт.

12

D48895

HUB AND DRUM - wheel

2шт.

13

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner

2шт.

14

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner

2шт.

15

T31897

SEAL

- grease

2шт.

D48909

BRAKE ASSEMBLY - electric, R.H.

1шт.

D48910

MAGNET

BRAKE ASSEMBLY - electric, L.H. (Not shown)

1шт.

D51171

MAGNET ASSEMBLY - brake, R.H.

1шт.

D51172

MAGNET ASSEMBLY - brake, L.H. (Not shown)

1шт.

16

D48920

RING - magnet retaining

1шт.

17

NSS

NOT SOLD SEPARAT

MAGNET - brake, R.H. only

1шт.

17

NSS

NOT SOLD SEPARAT

MAGNET - brake, L.H. only (Not shown)

1шт.

18

D48921

SPRING - magnet

1шт.

19

D48907

LEVER - brake actuating, R.H. only

1шт.

19

D48908

LEVER - brake actuating, L.H. only (Not shown)

1шт.

D50185

KIT - shoe retainer

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - brake shoe hold down

4шт.

21

NSS

NOT SOLD SEPARAT

SPRING - brake shoe hold down

4шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - spring

4шт.

23

NSS

NOT SOLD SEPARAT

SET SCREW - brake adjusting

1шт.

Service with D51173 brake adjusting screw set. Consisting of: (2) screws, (1) each for R.H. and L.H. brake assemblies.

1шт.

D51170

SPRING KIT - brake

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - adjusting screw

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - retractor

1шт.

26

D51169

KIT

SHOE AND LINNING KIT - brake

1шт.

27

NSS

NOT SOLD SEPARAT

SHOE - brake, primary

1шт.

28

NSS

NOT SOLD SEPARAT

LINING - brake, primary

1шт.

29

NSS

NOT SOLD SEPARAT

SHOE - brake, secondary

1шт.

30

NSS

NOT SOLD SEPARAT

LINING - brake, secondary

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brake, lining

20шт.

32

D49368

CONNECTOR - magnet lead

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE - backing, R.H.

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE - backing, L.H. (Not shown)

1шт.

34

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

5шт.

35

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

5шт.

36

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 16 NC)

5шт.

37

NSS

NOT SOLD SEPARAT

COVER - brake adjusting hole

1шт.

38

D49369

SPINDLE - axle

2шт.

7

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.
