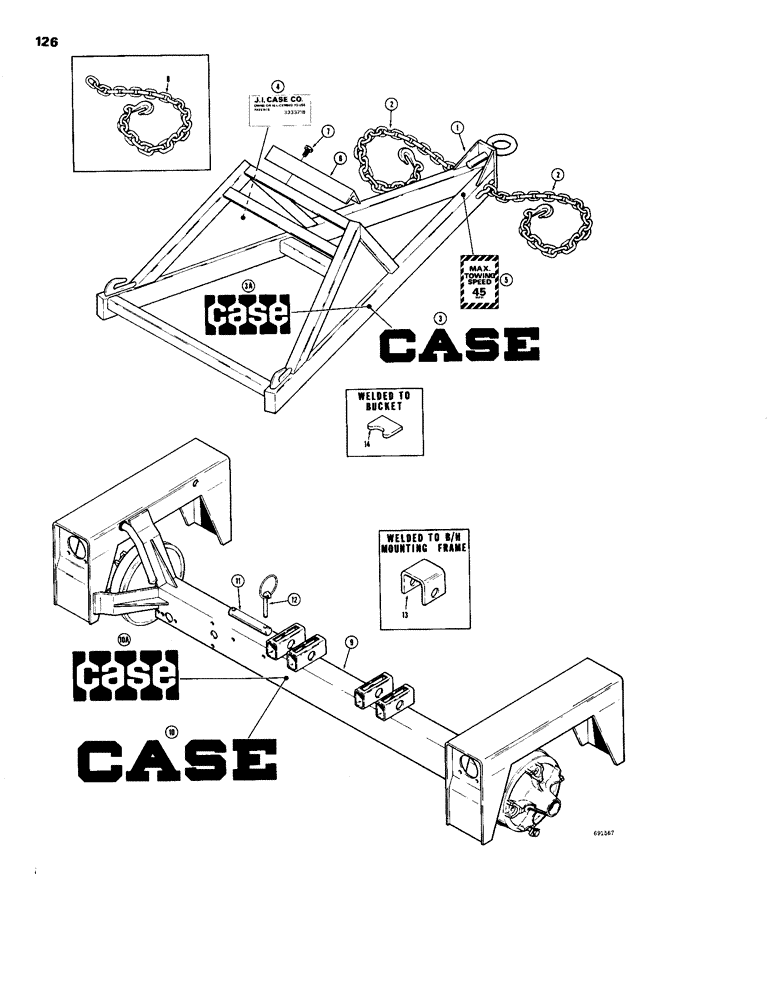

Запчасти Case 26B (126) - TRANS-PAC TRAILER, HITCH AND AXLE ASSEMBLY

1

D48723

HITCH ASSEMBLY - complete, Inlcudes: Ref. 2

1шт.

2

D48700

CHAIN - safety

2шт.

3

321-1021

DECAL

- CASE, hitch frame (If used)

2шт.

3a

321-1438

DECAL

- CASE, hitch frame (If used)

2шт.

4

321-1406

DECAL - patent, hitch frame

1шт.

5

321-1409

DECAL - towing speed

1шт.

6

D48713

BRACKET - bucket retaining

1шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

HHCS - 5/16" - 18 NC x 1-1/2"

2шт.

8

NSS

NOT SOLD SEPARAT

CHAIN - tractor axle to loader arm

2шт.

9

D48726

AXLE AND FENDER ASSEMBLY (Includes wheel hubs and brakes) Parts list fig. 115

1шт.

10

321-1010

DECAL

- CASE, rear of axle (If used)

1шт.

10a

321-1440

DECAL

- CASE, rear of axle (If used)

1шт.

11

D48709

PIN - axle to backhoe frame

2шт.

12

D33805

PIN

- Klick, D48709 pin retaining

4шт.

13

D48725

BRACKET - attaches to backhoe frame

2шт.

14

D52016

PLATE - attaches to loader bucket

2шт.
