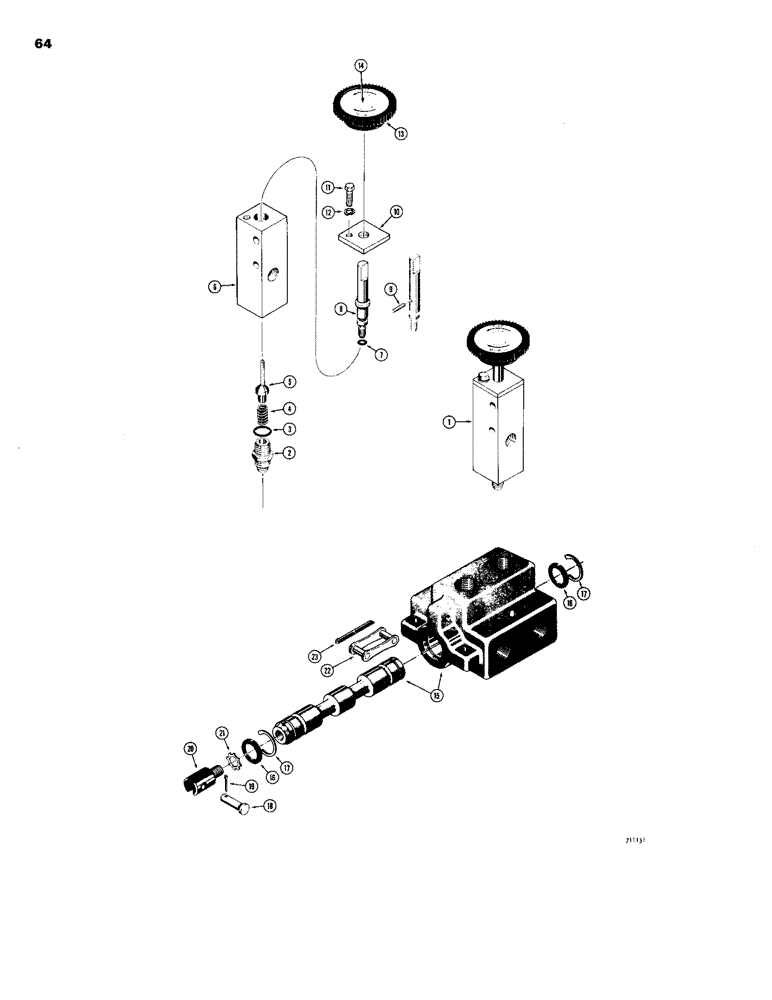

Запчасти Case 26B (064) - D36662 BACKHOE LOCKING VALVE

1

D36662

PISTON

VALVE - cylinder locking, Inlcudes: Ref. 2 - 14

1шт.

2

218-5079

HYD CONNECTOR,1/2" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 3

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

4

D36669

SPRING

- poppet

1шт.

5

D36668

X

POPPET - valve

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL - "O" ring, shaft

1шт.

8

D41746

SHAFT

- valve control

1шт.

9

138-38

LOCK PIN,3/32" x 9/16", Slotted

PIN, , If used 3/32" x 9/16", Slotted

1шт.

10

D36665

RETAINER

PLATE - shaft retaining

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

D36667

KNOB

- valve

1шт.

14

321-907

DECAL

- locking

1шт.

D45399

LOCK VALVE

VALVE - diversion, model 26B backhoe D45399 diversion valve, Inlcudes: Ref. 15 - 23

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set, model 26B backhoe D45399 diversion valve

1шт.

16

D23691

O-RING

SEAL - quad ring, spool, model 26B backhoe D45399 diversion valve

2шт.

17

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool, model 26B backhoe D45399 diversion valve #100, Ext, Crescent

2шт.

18

D23693

AXLE PIN

PIN - clevis, model 26B backhoe D445399 diversion valve

1шт.

19

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) , Model 26B backhoe D45399 diversion valve 1/16" x 5/8"

1шт.

20

D23694

ADAPTER

YOKE - control rod, model 26B backhoe D45399 diversion valve

1шт.

21

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, , Model 26B backhoe D45399 diversion valve Ext Tooth, 3/8"

1шт.

22

D23696

DRAG LINK

LINK - valve, model 26B backhoe D45399 diversion valve

1шт.

23

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), , model 26B backhoe D45399 diversion valve 1/16" x 2"

1шт.
