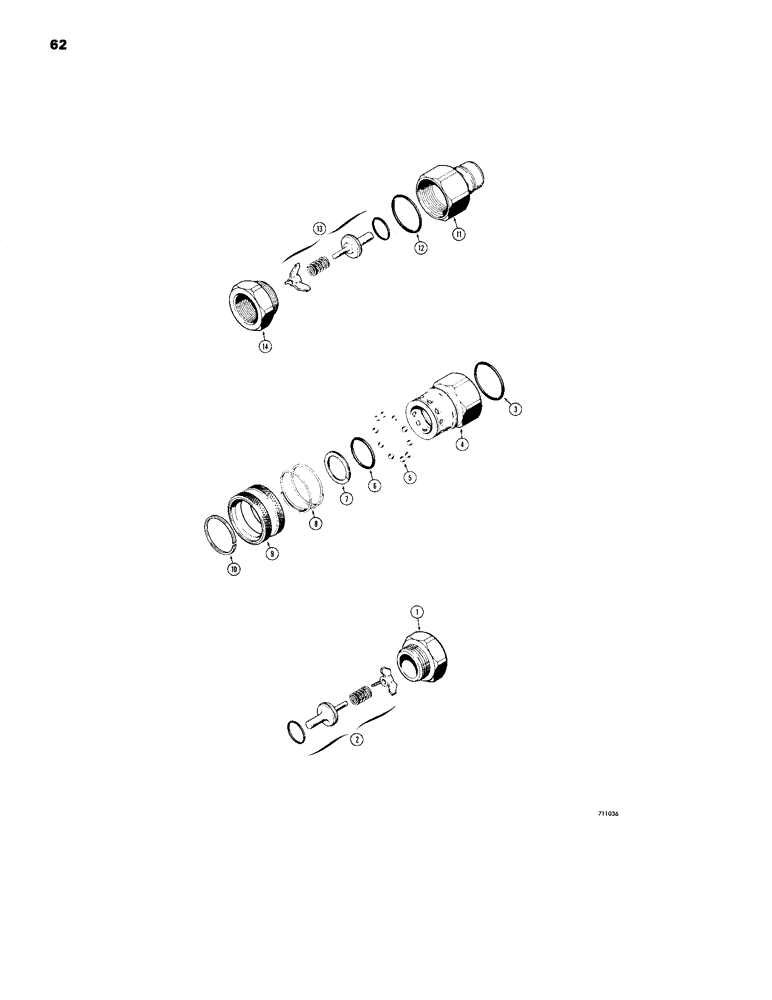

Запчасти Case 26B (062) - D52800 HYDRAULIC COUPLING, FEMALE

D52800

COUPLING, QUICK, FEM

COUPLING - hydraulic, female, Inlcudes: Ref. 1 - 10

1шт.

1

D31975

FITTING

- end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling body

1шт.

4

D53916

BODY

- coupling (Straight end)

1шт.

5

211-6

BALL,7/32" Dia

steel 7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

- coupling body (Internal)

1шт.

7

D54276

RING

- backup

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining

1шт.

D52694

QUICK MALE COUPLING

COUPLING - hydraulic, straight male, Inlcudes: Ref. 11 - 14

1шт.

11

D31971

BODY

- coupling, straight male, hydraulic

1шт.

12

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling body, hydraulic

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, hydraulic

1шт.

14

D31975

FITTING

- end, coupling, hydraulic

1шт.
