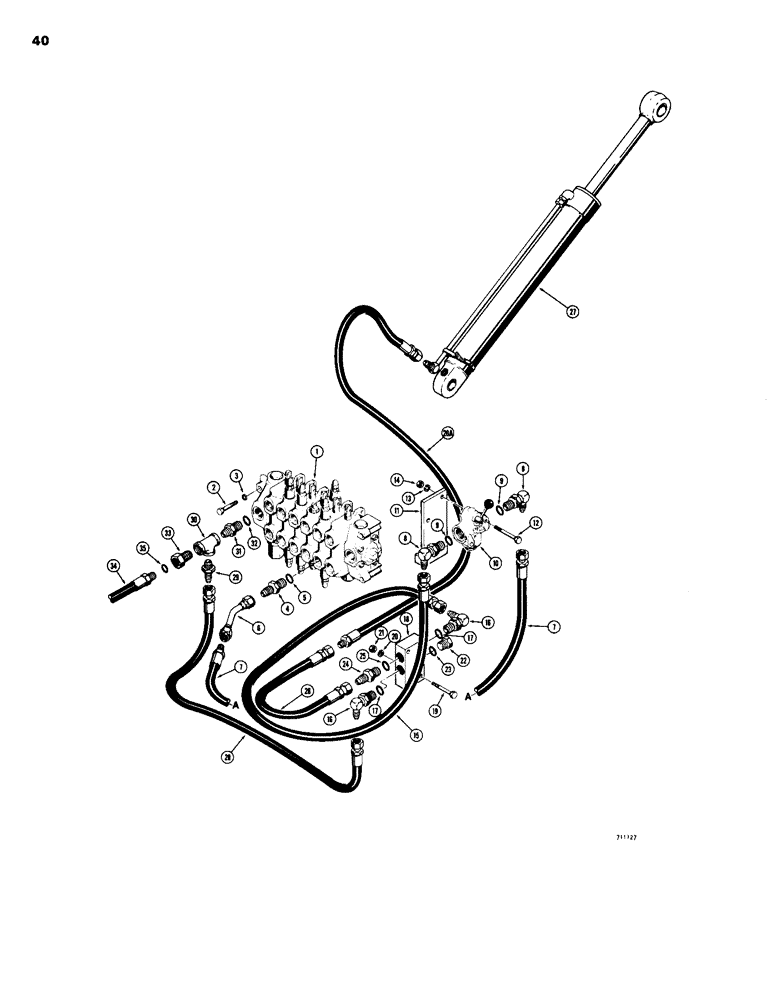

Запчасти Case 26B (040) - BOOM LOCKOUT HYDRAULICS, BEFORE BACKHOE SERIAL NUMBER 5224733

1

D39047

VALVE

- backhoe control, Before backhoe Sn. 5220152 (Parts list Figure 134)

1шт.

1

G33115

VALVE

- backhoe control (Backhoe Sn. 5220152 to 5224733) Not shown (See page 23B for mounting parts or Figure 146 for service breakdown)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4" (Before Sn. 5220152)

3шт.

3

92-6

LOCK WASHER,3/8"

before S/N 5220152 3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight (Before Sn. 5220152), Inlcudes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight (Backhoe Sn. 5220152 to 5224733)., Inlcudes: Ref. 5

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

D49934

TUBE - backhoe control valve to lockout valve, boom section lower port

1шт.

7

D49939

HOSE

- backhoe control valve to lockout valve (29" long)

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- male, 90 degrees, Incl. Ref. 9

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

REF

INSTRUCTION

VALVE - boom lockout (Parts list Figure 46)

1шт.

11

D50772

BRACKET - mounting, lockout valve, Serial Range: (Welded-frame)

1шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1-4"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

D49937

SLEEVE

HOSE - lockout valve to relief valve (50" long) Before backhoe Sn. 5220152

1шт.

15

D45358

HOSE ASSY.

HOSE - lockout valve to relief valve (39" long) Backhoe Sn., Serial Range: 5220152-5224733

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- male, 90 degrees, Incl. Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL -"O" ring

1шт.

18

D46850

VALVE

- relief, hydraulic

1шт.

19

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

22

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Relief valve, Incl. Ref. 23 Hex Hd, 1 1/16"-12 ORB

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 25

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

26

CASD50053

HOSE - relief valve to boom cylinder, rod end (23" long) at relief valve

1шт.

26a

D38124

HOSE

- relief valve to boom cylinder (57" long) at cylinder

1шт.

27

REF

INSTRUCTION

HYDRAULICS - boom cylinder (Parts list pages 31-41)

1шт.

28

D49938

HOSE

- relief valve to return tee (34" long) Before backhoe Sn. 5220152

1шт.

28

CASD50053

HOSE - relief valve to return tee (23" long) Backhoe Sn., Serial Range: 5220152-5224733

1шт.

29

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, straight (Hose to tee)

1шт.

30

221-425

FITTING,3/4" NPT

TEE - pipe, female ()1 3/4" NPT

1шт.

31

218-5017

ADAPTER

CONNECTOR - male, straight (At valve), Inlcudes: Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

33

218-5427

ADAPTER - hydraulic, straight (1-5/16" "O" ring to 3/4" NPT)

1шт.

34

D37541

HOSE

- return, 43" long, Inlcudes: Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
