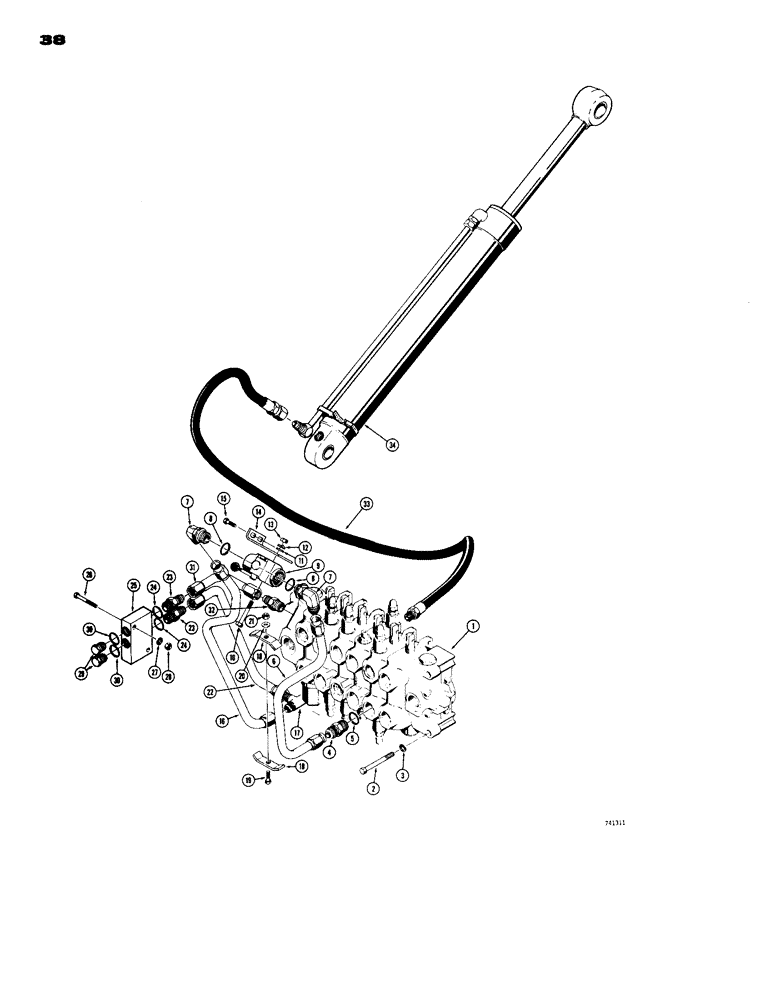

Запчасти Case 26B (038) - BOOM LOCKOUT HYDRAULICS

1

D39047

VALVE

- backhoe control (Parts list Figure 134)

1шт.

2

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4" (Control valve mounting)

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 5

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

L47688

TUBE - boom section, lower port to lockout valve

1шт.

7

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, Inlcudes: Ref. 9

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY - boom lockout (Parts list Figure 46)

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4" (Lockout valve mounting)

2шт.

11

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

14

L47709

BRACKET - mounting, lockout valve

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

L47682

TUBE -lockout, Serial Range: valve-tee

1шт.

17

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Lockout valve to relief valve and boom cylinder 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

18

D20045

PLATE ASSY.

CLAMP - tube

2шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

22

L47666

PIPE

TUBE - tee to relief valve

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 24

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

D46850

VALVE

ASSEMBLY - relief (Parts list Figure 46)

1шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2" (Relief valve mounting)

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

29

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Pipe, Incl. Ref. 30 Hex Hd, 1 1/16"-12 ORB

2шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

31

L47684

TUBE - relief valve to control valve

1шт.

32

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, at control valve outlet section

1шт.

33

D38124

HOSE

- boom section to boom cylinder (57" long)

2шт.

34

REF

INSTRUCTION

HYDRAULICS - boom cylinder (Parts list page 31)

1шт.
