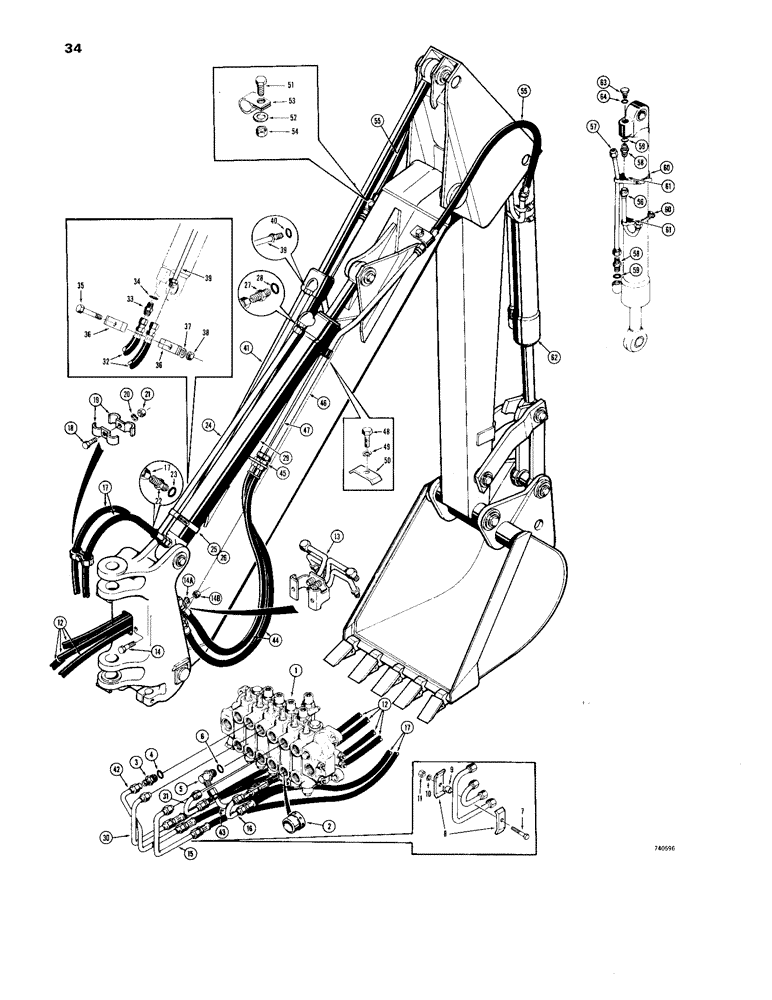

Запчасти Case 26B (034) - BOOM, DIPPER AND BUCKET CYLINDER HYDRAULICS, BACKHOE SERIAL NUMBER 5220152 AND AFTER

1

REF

INSTRUCTION

VALVE - backhoe control (See Figure 146 for proper valve; Mounting parts on Figure 26)

1шт.

2

D54236

VALVE, CHECK

RESTRICTOR - boom drop, lower boom section port

1шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - male, straight (Both boom section ports, both crowd section ports and upper bucket section port), Inlcudes: Ref. 4

5шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

5

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Male, Lower bucket section port, Inlcudes: Ref. 6 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

8

D40236

CLAMP

- tube

6шт.

9

D36040

BUSHING

SPACER - tube clamp

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

3шт.

12

D42601

HOSE ASSY.

HOSE - crowd and bucket section ports to manifold (18-1/2" long)

4шт.

13

D44652

MANIFOLD

- hydraulic routing

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14a

92-6

LOCK WASHER,3/8"

2шт.

14b

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

D54224

TUBE - boom section, upper port, boom cylinder hydraulics

1шт.

16

D54226

TUBE

- boom section, lower port, boom cylinder hydraulics

1шт.

17

D38124

HOSE

- boom section ports to boom cylinder (57" long), boom cylinder hydraulics

2шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Boom cylinder hydraulics

1шт.

19

D42833

CLAMP

- hose, boom cylinder hydraulics

2шт.

20

92-7

LOCK WASHER,7/16"

boom cylinder hydraulics 7/16"

1шт.

21

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , Boom cylinder hydraulics 7/16"-14, GB

1шт.

22

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics, Inlcudes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cylinder hydraulics

1шт.

24

D43631

TUBE

- boom cylinder, rod end, boom cylinder hydraulics

1шт.

25

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder, boom cylinder hydraulics

1шт.

26

D38648

BLOCK

SPACER - clamp, boom cylinder hydraulics

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics, Inlcudes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cylinder hydraulics

1шт.

29

REF

INSTRUCTION

CYLINDER - hydraulic, boom (3-1/2" I.D. x 37-7/8" stroke) See pages 171, 173 and 175 for proper cylinder, boom cylinder hydraulics

1шт.

30

D54224

TUBE - dipper section, upper port, dipper cylinder hydraulics

1шт.

31

D54226

TUBE

- dipper section, lower port, boom cylinder hydraulics

1шт.

32

D45358

HOSE ASSY.

HOSE - manifold to dipper cylinder (39" long), boom cylinder hydraulics

2шт.

33

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics, Inlcudes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boom cylinder hydraulics

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Boom cylinder hydraulics Hex, 3/8"-16 x 2", G5

1шт.

36

D40236

CLAMP

- hose, boom cylinder hydraulics

2шт.

37

195-25

WASHER,3/8"

- plain (), boom cylinder hydraulics 3/8"

1шт.

38

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC), boom cylinder hydraulics

1шт.

39

D43637

TUBE

CONNECTOR - male, straight, Inlcudes: Ref. 40

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL -"O" ring, boom cylinder hydraulics

1шт.

41

REF

INSTRUCTION

CYLINDER - hydraulic, dipper (3-1/2" I.D. x 33-1/8" stroke) See pages 177 and 179 for proper cylinder, boom cylinder hydraulics

1шт.

42

D54220

TUBE

- bucket section, upper port

1шт.

43

D54222

TUBE - bucket section, lower port

1шт.

44

45359

HOSE - manifold to bucket cylinder, rod end (47" long)

2шт.

45

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex., jam (1-1/16" - 12 NF)

2шт.

46

D54322

TUBE

- valve to bucket cylinder (R.H.)

1шт.

47

D54324

TUBE

- valve to bucket cylinder (L.H.)

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

D40236

CLAMP

- tube

1шт.

51

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

52

95-6

WASHER,3/8"

- plain () 3/8"

2шт.

53

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

54

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

2шт.

55

D39802

TUBE

HOSE - valve to bucket cylinder (32-1/2" long)

2шт.

56

D46679

TUBE

- bucket cylinder, closed end

1шт.

57

D40647

TUBE

- bucket cylinder, rod end

1шт.

58

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male, straight, Inlcudes: Ref. 59

2шт.

59

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

60

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

61

D38648

BLOCK

SPACER - clamp

2шт.

62

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (3" dia. x 26-1/2" stroke) See pages 181 and 183 for proper cylinder

1шт.

63

86512512

PLUG,7/8" - 14 ORB

Pipe, Hydraulic oil, Incl. Ref. 64 Hex Hd, 7/8"-14 ORB

1шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
