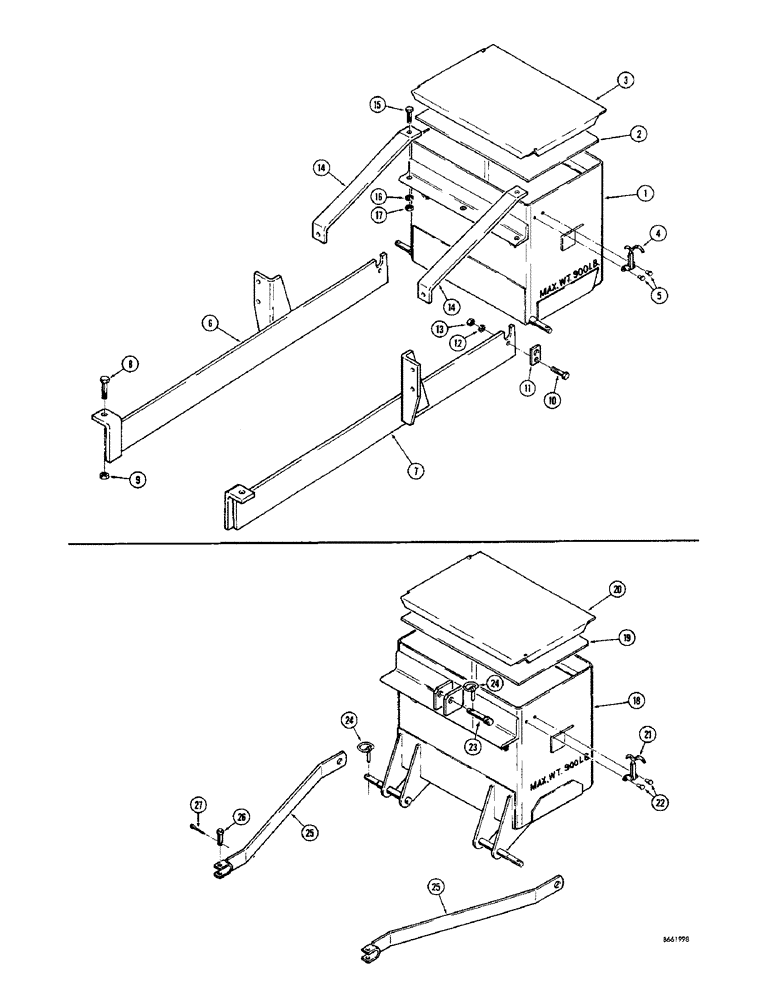

Запчасти Case 23 (014) - WEIGHT BOX, USED ON MODELS WITHOUT BACKHOE OR DRAFT-O-MATIC

1

D10270

WEIGHT BOX - rear, 900 lbs.

1шт.

2

D21183

SHELF - tool box

1шт.

3

D21182

LID - weight box

1шт.

4

A26747

HOOD

CATCH - lid

2шт.

5

45-35

RIVET - button head (3/16" x 5/16")

4шт.

6

D33782

SUPPORT ARM - weight box, R.H.

1шт.

7

D33783

SUPPORT ARM - weight box, L.H.

1шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

DR10733

STRAP - weight box

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

14

D33784

BRACE - weight box

2шт.

15

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

25-1010

NUT,5/8"-11, G5

2шт.

18

D32066

WEIGHT BOX - rear, 900 lbs., used on models with draft-o-matic

1шт.

19

D21183

SHELF - tool box, used on models with draft-o-matic

1шт.

20

D21182

LID - weight box, used on models with draft-o-matic

1шт.

21

A26747

HOOD

CATCH - lid, used on models with draft-o-matic

2шт.

22

45-35

RIVET - button head (3/16" x 5/16"), used on modesl with draft-o-matic

4шт.

23

A29700

PIN

- mast, used on models with draft-o-matic

1шт.

24

A30338

PIN

KLIK PIN - retaining, used on models with draft-o-matic

3шт.

25

D32062

BAND

STRAP - support, used on models with draft-o-matic

2шт.

26

T11747

PIN - support strap, used on models with draft-o-matic

2шт.

27

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Used on models with draft-o-matic 1/8" x 1"

2шт.
